CN Tapping Center

Rigid machine frame for high acceleration

High speed and low noise ballscrew and linear guideways on three axes

Rapid feed 48 m/min to reduce non-machining time

High Precision Mold

Standard Configuration

Direct Drive Spindle BBT30 12000 rpm 4.8/21kW_21/45Nm (Siemens)

Direct Drive Spindle BBT30 12000 rpm 3.7/13kW_23.6/82.8Nm (FANUC)

26 pockets servo type tool changer, BBT30

Ball type linear guideways on all axis

Full enclosed splash guard

Telescopic covers for linear axis

Spindle oil cooler

Heat exchanger for electrical cabinet

Rigid tapping

Automatic lubrication system

Coolant system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Direct drive spindle 20,000rpm

Additional rotary 4th or 5th axis

CTS Coolant through spindle + ATS

Chain type chip conveyor

Column extension

Oil mist collector

Workpiece probe

Tool probe

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens
Table Size	800 x 420 mm （31.50” × 16.54”）
T slot [width x distance x number]	14 × 125 × 3mm (0.55” × 4.92” × 0.12”)
Max. load	250 kg (551.16 lb)
X/Y/Z travel	700 / 450 / 300 mm (27.56” / 17.72” / 11.81”)
X/Y/Z rapid feedrate	48 m/min
Spindle nose to table	150 ~450 mm (5.91” ~ 17.72”)
Spindle Taper	BBT30
Spindle motor power	4.8 / 21 kW
Spindle motor torque	21 / 45 Nm
Spindle speed	12,000 rpm
Capacity	DT26 pockets
Tool diameter	Ø60 / Ø80 mm (Ø2.36” / Ø3.15”)
Tool length	200 mm (7.87”)
Tool weight	2 kg (4.41 lb)
Dimension	2,200 x 2,460 x 2,400 mm (86.61” × 96.85” × 94.49”)
Weight	3,700 kg (8,157 lb)

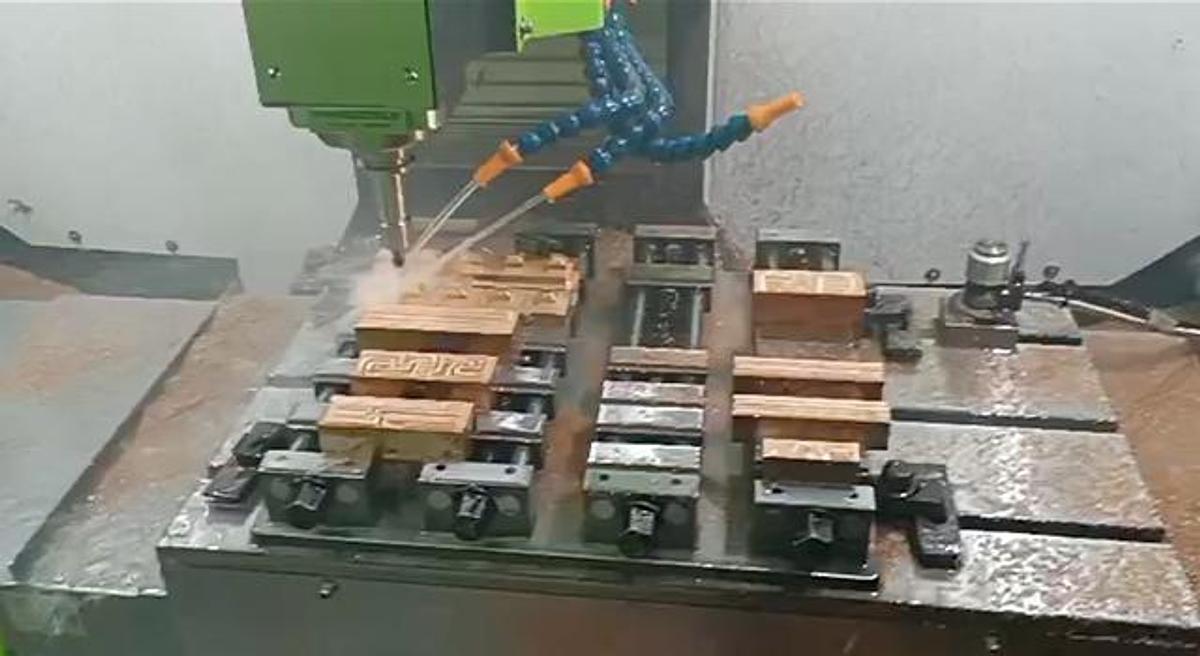

T7
