ShopMate V5

High Performance Machining Center

Training

Tool room workshop

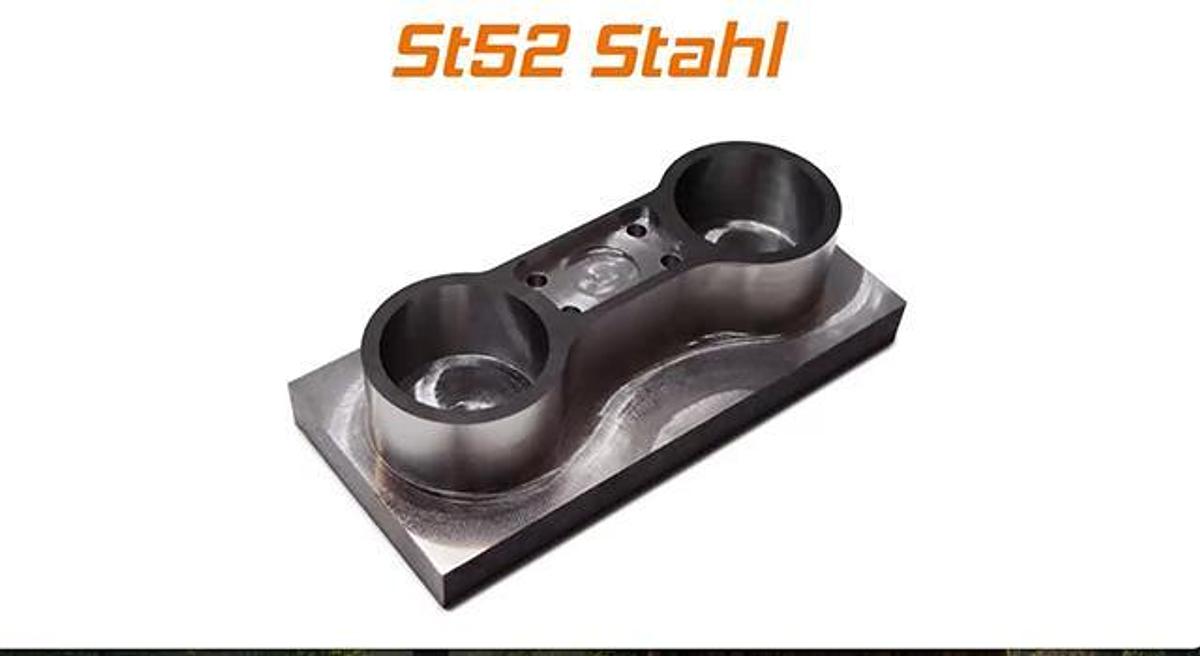

Metal parts machining

Model making

Cast iron is tempered for stress relief to ensure machine stability without deformation

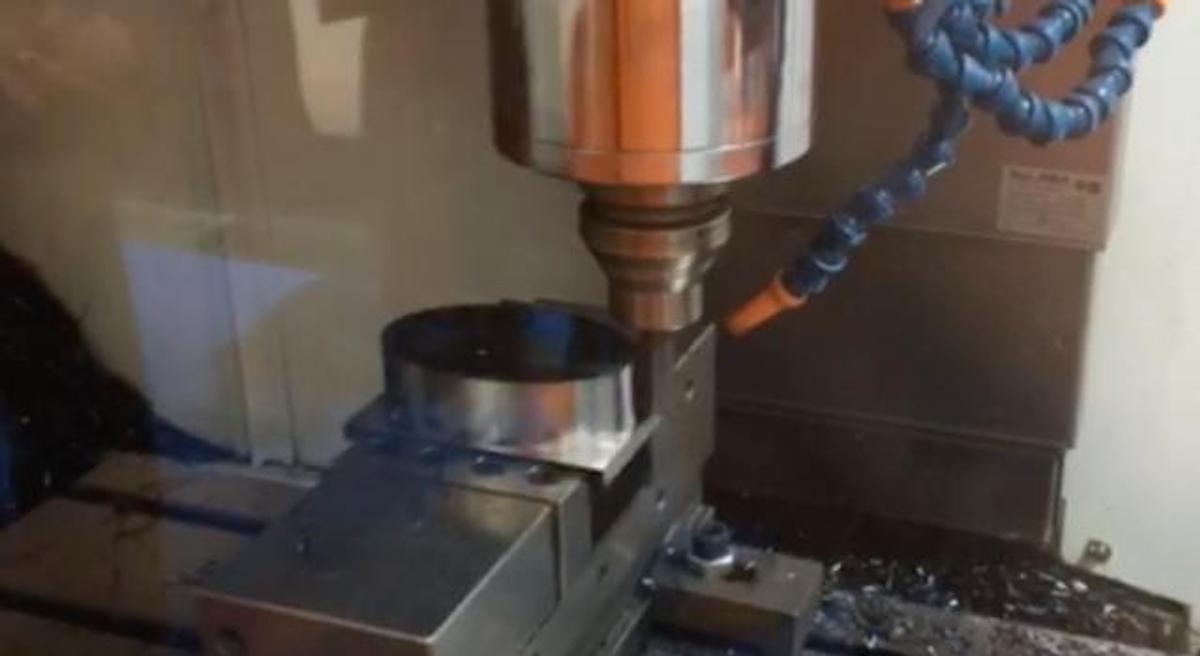

General Machining

Standard Configuration

Belt drive spindle BT40/SK40/CAT40 10000 rpm_3.7/13kW_23.6/82.8Nm (Siemens)

Belt drive spindle BT40/SK40/CAT40 10000 rpm_4.8/21kW_21/45Nm (FANUC)

12 positions umbrella tool changer, BT40/SK40/CAT40

Ball type linear guideways on all axis

Full enclosed splash guard

Spindle oil cooler

Heat exchanger for electrical cabinet

Rigid tapping

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens
Table Size	650 x 300 mm
T slot [width x distance x number]	14 mm × 100 mm × 3
Max. load	200 kg
X/Y/Z travel	500 / 300 / 400 mm
X/Y/Z rapid feedrate	48 m/min
Spindle nose to table	120 ~520 mm
Spindle Taper	BT40 / SK40 / CAT40
Spindle motor power	4.8 / 21 kW
Spindle motor torque	21 / 45 Nm
Spindle speed	10,000 rpm
Capacity	DT12 pockets
Tool diameter	Ø90 / Ø125 mm
Tool length	300 mm
Tool weight	8 kg
Positioning accuracy (without linear scales)	0.010 mm
Positioning repeatability (without linear scales)	0.008 mm
Dimension	1,660 x 2,000 x 2,495 mm
Weight	1,800 kg

ShopMate V5
