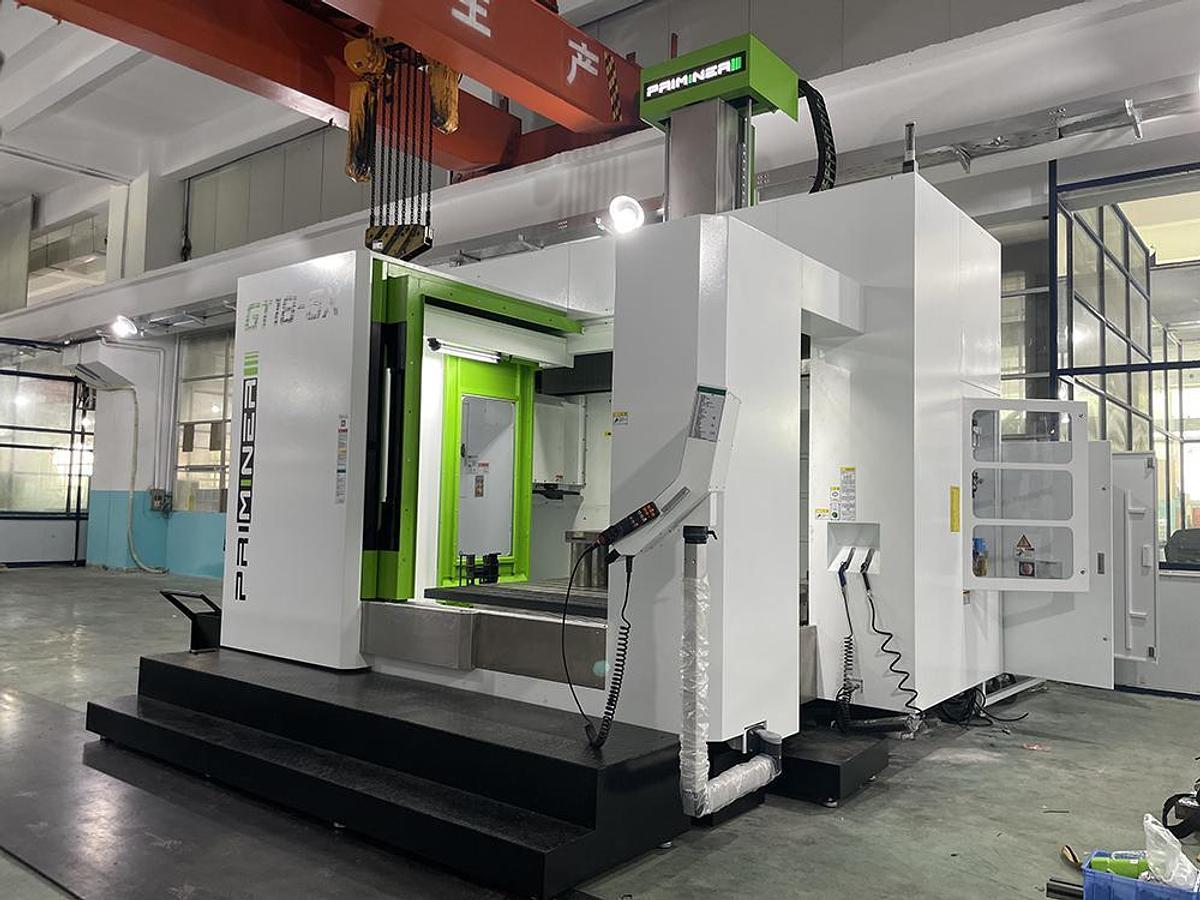

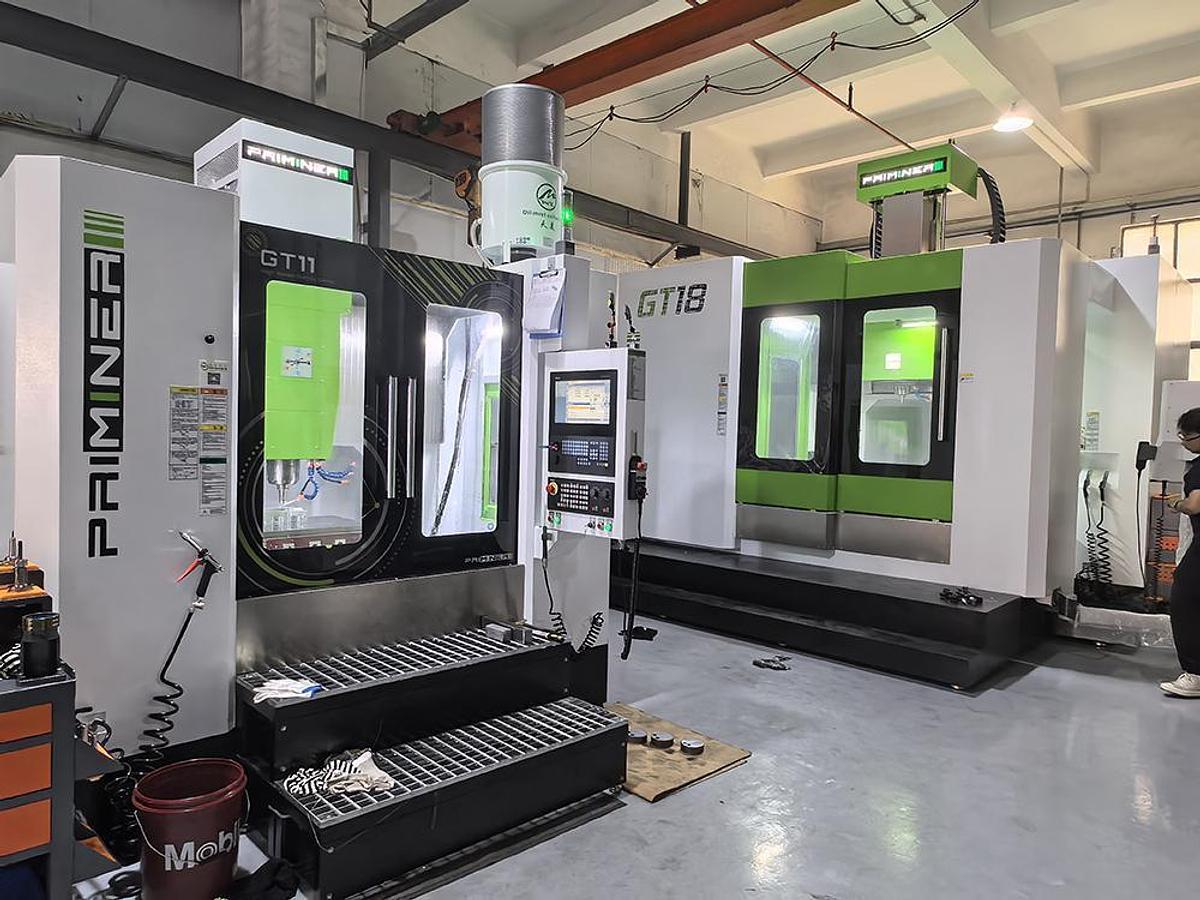

GT18

High Speed Double Column Center

High-rigidity gantry structure design

The base, crossbeam, and double column are all made of integrated cast iron components

Dual drive on Y axis to ensure the best dynamic performance

Coming Soon

Standard Configuration

Built-in spindle HSK A63 20000rpm_30/36kW_100/120Nm(SIEMENS / HEIDENHAIN)

60 pockets chain type tool changer, HSK A63

Sealed linear scales on X/Y/Z axes

Telescopic covers for linear axis (X-axis)

Full enclosed splash guard

Two screw type and one chain type chip conveyor

High precision spindle water cooler

Air-condition electrical cabinet

Rigid tapping

Automatic lubrication system

Coolant system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

CTS coolant through spindle + ATS

Oil cooling through ballscrew

Workpiece probe

Tool probe

Oil mist collector

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens / Heidenhain
Table Size	1,800 x 1,400 mm (70.87” × 55.12”)
T slot [width x distance x number]	22 × 170 × 7 mm (0.87” × 6.69” × 0.28”)
Max. load	6,000 kg (13,228 lb)
X/Y/Z travel	1,800 / 1,400 / 800 mm (70.87” / 55.12” / 31.50”)
Spindle nose to table	200 ~ 1,000 mm (7.87” ~ 39.37”)
Distance between column	1,960 mm (77.17”)
Spindle motor power	30 / 36 kW
Spindle motor torque	100 / 120 Nm
Spindle speed	20,000 rpm
Dimension	6,160 x 4,970 x 4,380 mm ( 242.52” × 195.67” × 172.44”)
Weight	22,000 kg (48,500 lb)
