GT7
Description

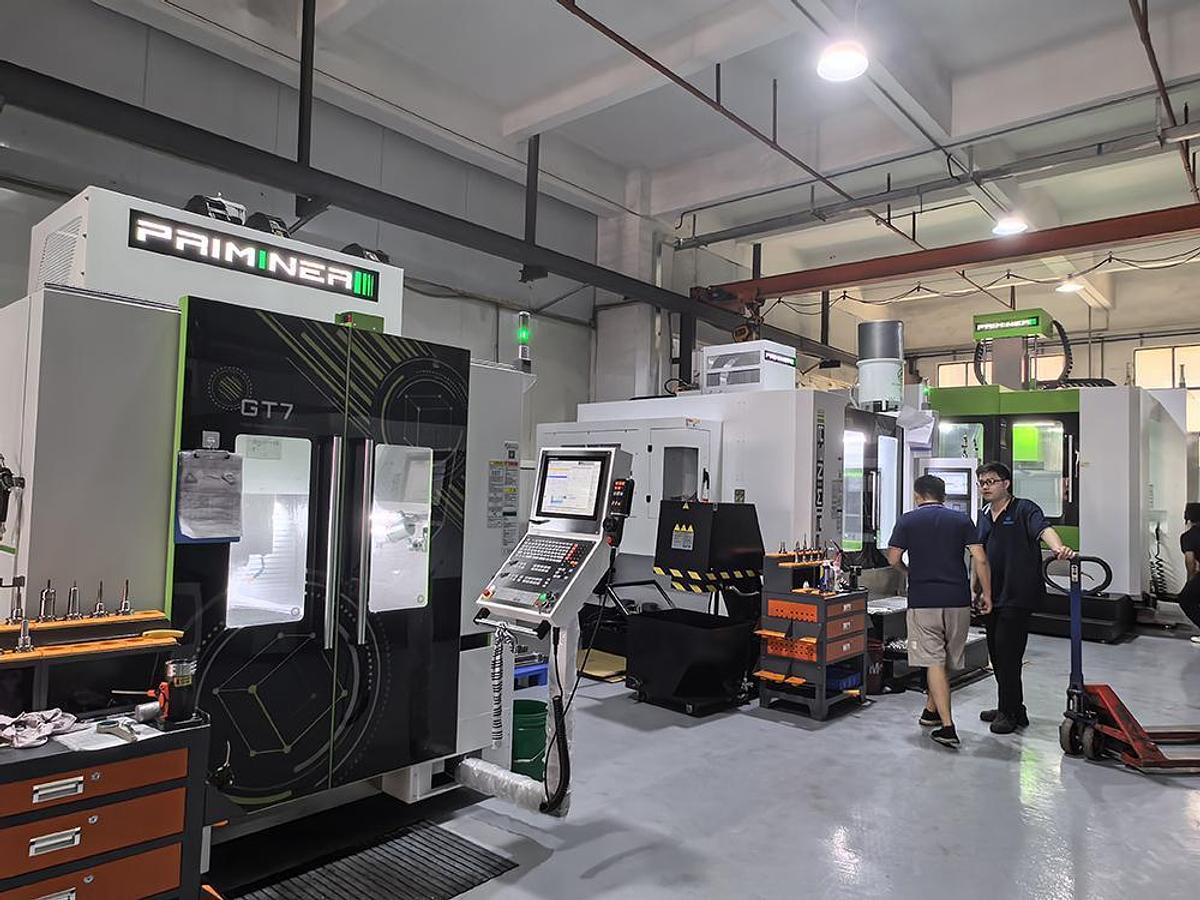

GT7
Gantry-type structure design, X/Y/Z axes movement are separated from the machining area
One-piece high-quality casting bed
Dual drive on Y axis to ensure the best dynamic perfomance
Others
Standard Configuration
Built-in spindle HSK E50 32000rpm_15/18kW_14/17.3Nm(SIEMENS / HEIDENHAIN)
32 pockets tool changer, HSK E50
Y axis with dual direct drive
Sealed linear scales on X/Y/Z axes
Full enclosed splash guard
Chain type chip conveyor
High precision spindle water cooler
Air-condition electrical cabinet
Rigid tapping
Centralized automatic grease lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Built-in spindle HSK A63 20000rpm_20/24kW_48/58Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK E32 40000rpm_6.3/9.45kW_2/3Nm (SIEMENS / HEIDENHAIN)
32 pockets tool changer, HSK A63
48 sockets tool changer, HSK E32
CTS coolant through spindle + ATS
Oil cooling through ballscrew
Workpiece probe
Tool probe
Oil mist collector
Minimum quantity lubrication system
Coolant cooling system
Extra 200GB SSD program memory (only available on SIEMENS)
Gantry Type High Speed Machine Center
Coming Soon
Others
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Control System | Siemens / Heidenhain |
| Table Size | 800 x 600 mm (31.50” × 23.62”) |
| T slot [width x distance x number] | 18 × 100 × 5 mm (0.71” × 3.94” × 0.20”) |
| Max. load | 600 kg (1323 lb) |
| X/Y/Z travel | 700 / 600 / 450 mm (27.56” / 23.62” / 17.72”) |
| Spindle nose to table | 135 ~ 585 mm (5.31” ~ 23.03”) |
| Spindle taper | HSK E50 |
| Spindle motor power | 15 / 18 kW |
| Spindle motor torque | 14 / 17.3 Nm |
| Spindle speed | 32,000 rpm |
| Dimension | 3,560 x 3,380 x 2,995 mm (140.16” × 133.07” × 117.91”) |
| Weight | 8,000 kg (17,640 lb) |
