UHP1100
Description
UHP1100
High-rigidity design, with reinforced ribs using a triangular structure for excellent rigidity and stability.

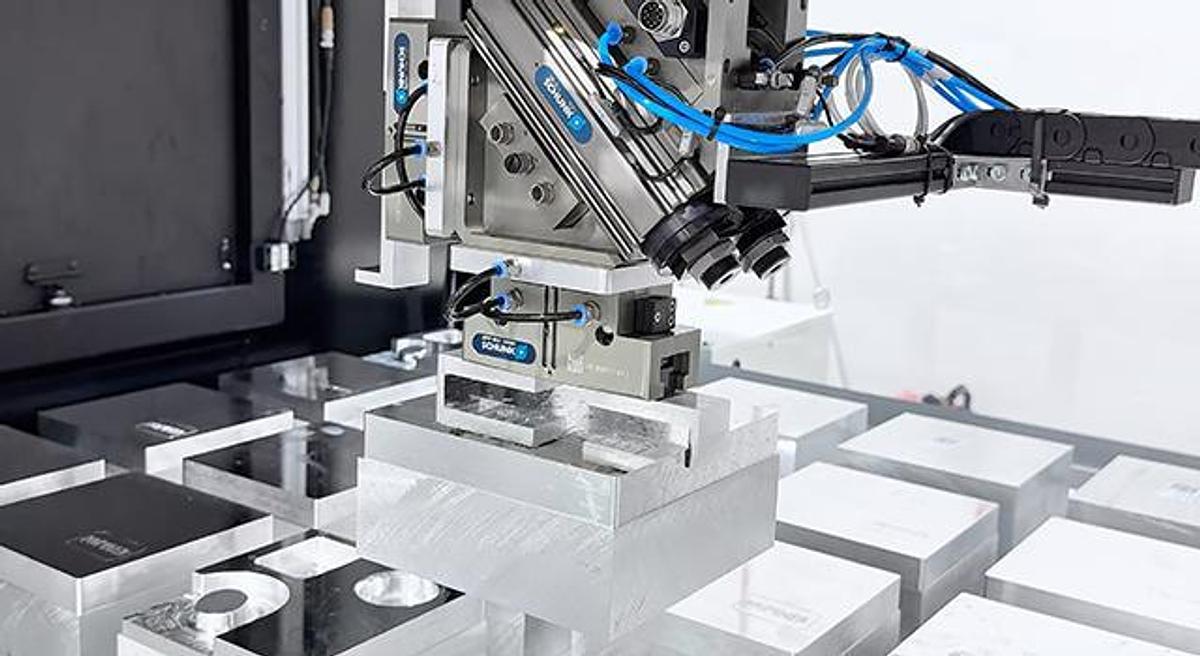

Automation

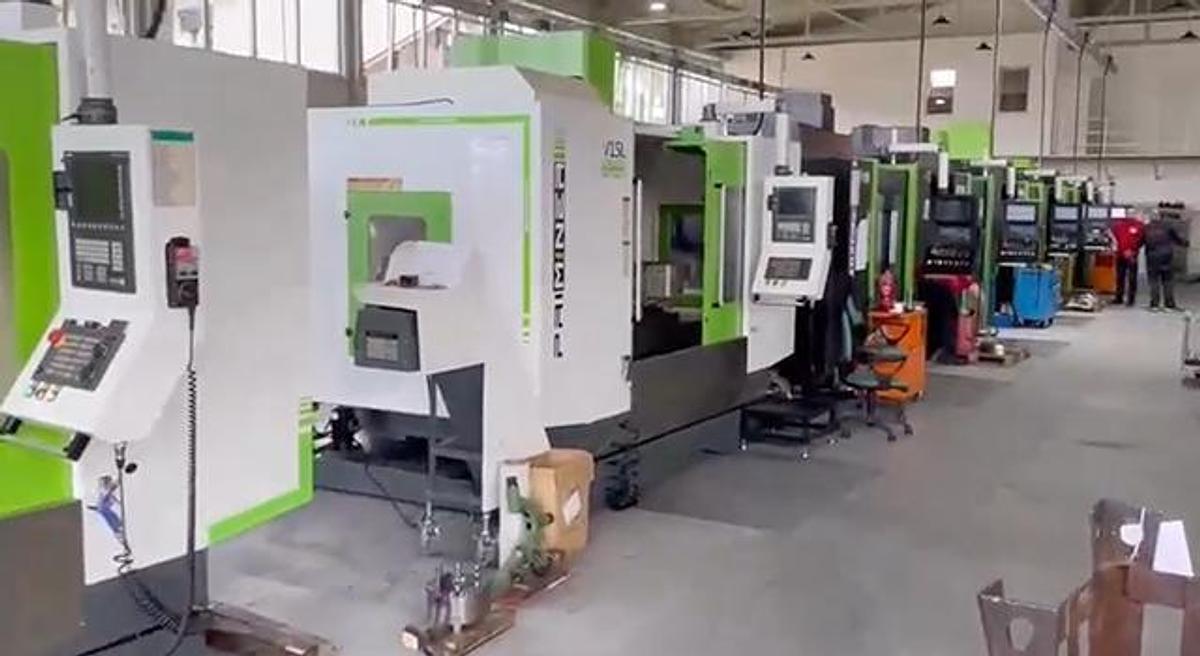

Case Study
Standard Configuration
Direct drive spindle BBT40/SK40/CAT40 15000 rpm_20/53kW_126/250Nm (SIEMENS / HEIDENHAIN)
Direct drive spindle BBT40/SK40/CAT40 12000 rpm_15/30kW_95.5/191Nm (FANUC)
24 pockets arm type tool changer, BT40/SK40/CAT40
Roller type linear guideways on all axis
Full enclosed splash guard
Telescopic covers for linear axis
Two screw type and one chain type chip conveyor
Spindle oil cooler
Motor seat cooling circuit
Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical + electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Built-in spindle HSK A63 18000rpm_30/36kW_85/102Nm (SIEMENS / HEIDENHAIN)
Direct drive spindle HSK A63 15000 rpm_20/53kW_126/250Nm (SIEMENS / HEIDENHAIN)
Direct drive spindle BBT50 10000 rpm_20/53kW_126/250Nm (SIEMENS / HEIDENHAIN)
24 pockets arm type tool changer, BT50/SK50/CAT50
28 pockets arm type tool changer, BT40/SK40/CAT40
30 pockets arm type tool changer, BT40/SK40/CAT40/HSK A63
40 pockets chain type tool changer, BT40/SK40/CAT40
Additional rotary 4th axis
Additional rotary 4/5th axis
Linear scales on X/Y/Z axis
CTS coolant through spindle + ATS
Oil cooling through ballscrew
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Extra 200GB SSD program memory (only available on SIEMENS)
Ultra-high Performance Machining Center
Automation
Case Study
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Control System | Siemens / Heidenhain |
| Table Size | 1,300 x 600 mm (51.18” × 23.62”) |
| T slot [width x distance x number] | 18 × 100 × 5mm (0.71” × 3.94” × 0.20”) |
| Max. load | 1,000 kg (2,205 lb) |
| X/Y/Z travel | 1,100 / 650 / 600 mm (43.31” / 25.59” / 23.62”) |
| X/Y/Z rapid feedrate | 36 m/min |
| Spindle nose to table | 150 ~ 750 mm (5.91” ~ 29.53”) |
| Taper | BBT40/SK40/CAT40 |
| Spindle motor power | 20 / 53 kW |
| Spindle motor torque | 126 / 250 Nm |
| Spindle speed | 15,000 rpm |
| Capacity | DT24 pockets |
| Tool diameter | Ø78 / Ø125 mm (Ø3.07” / Ø4.92”) |
| Tool length | 300 mm (11.81”) |
| Tool weight | 8 kg (17.65 lb) |
| Dimension | 3,850 x 3,100 x 3,185 mm (151.57” × 122.05” × 125.39”) |
| Weight | 7,500 kg (16,535 lb) |
