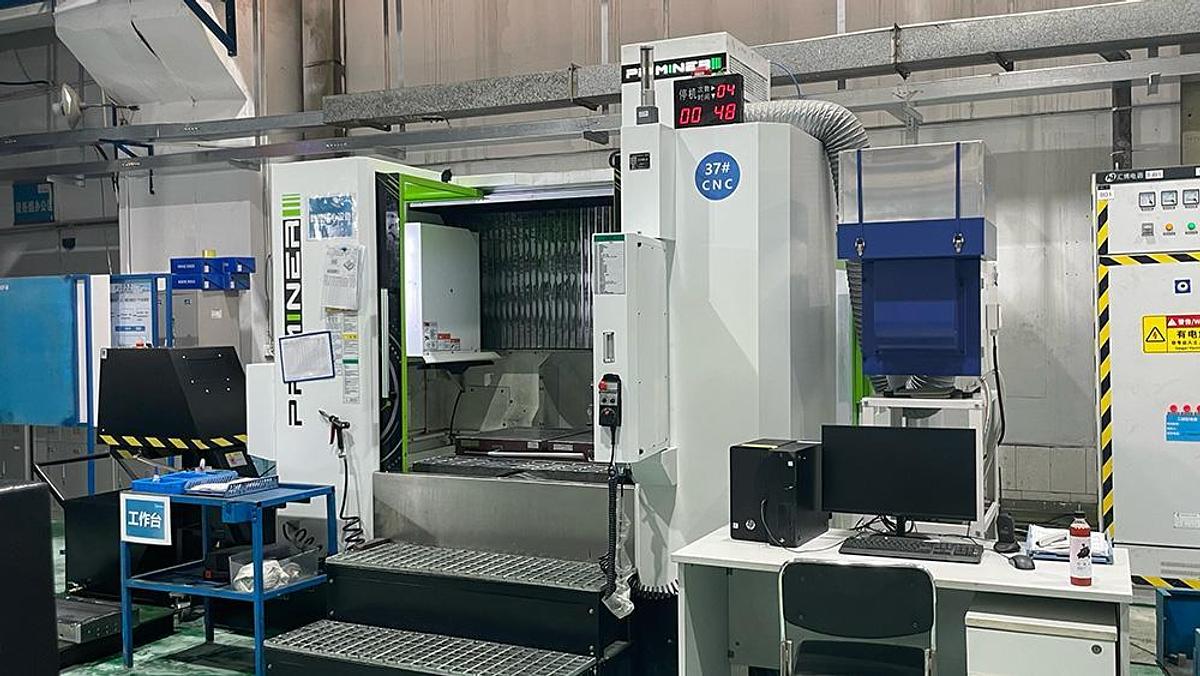

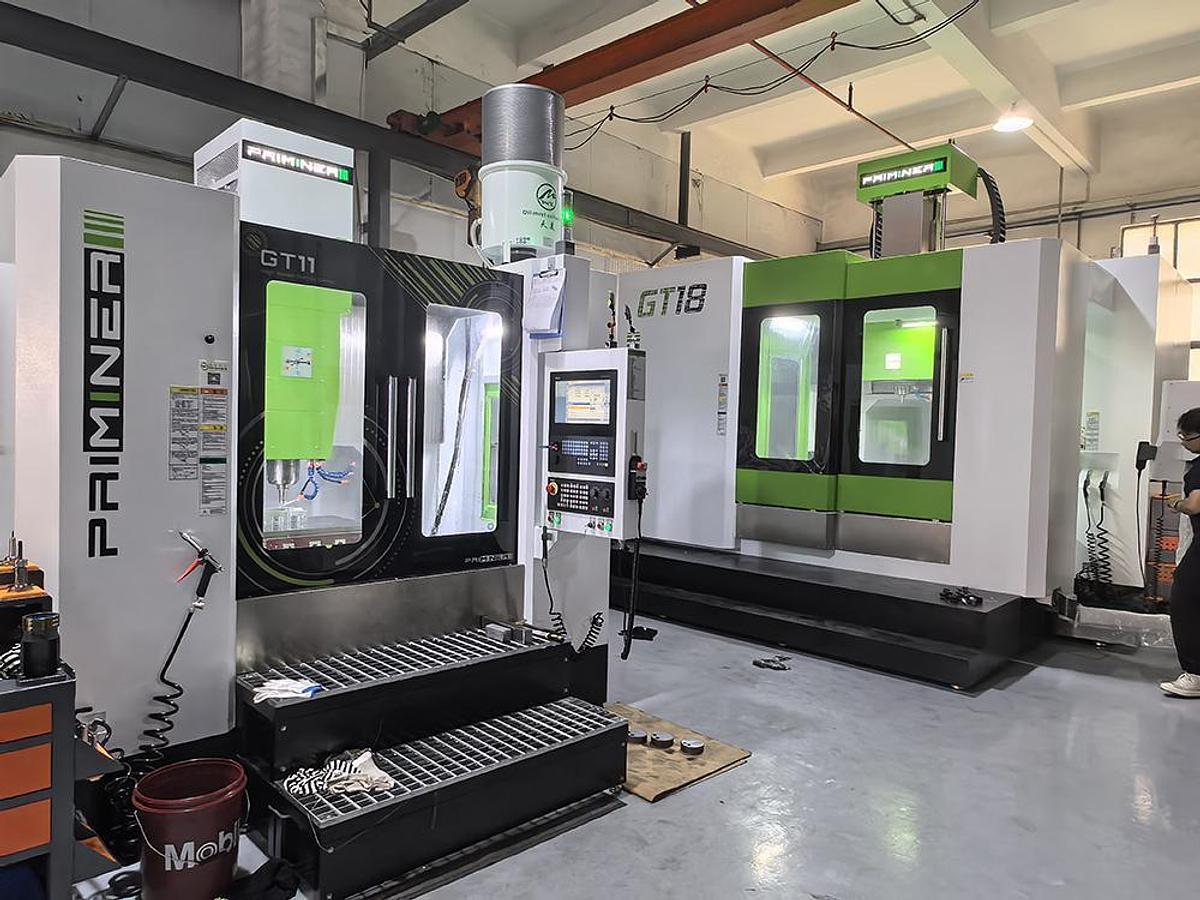

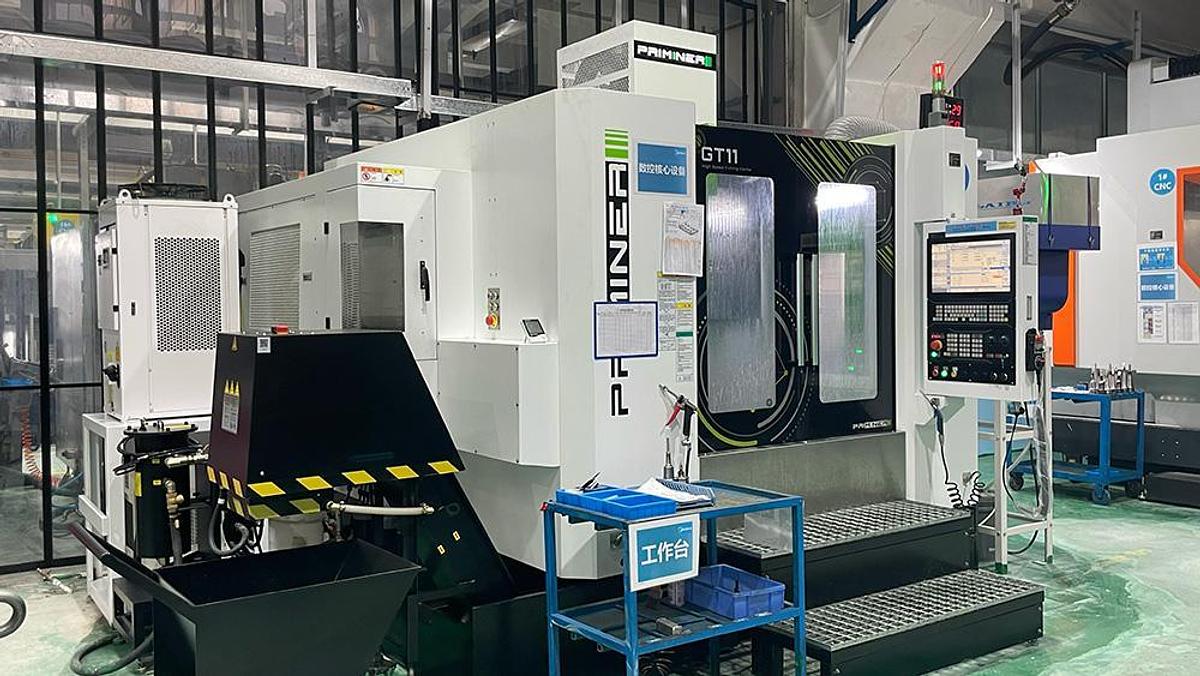

GT11

High Speed Double Column Machining Center

High-rigidity gantry structure design

The base, crossbeam, and double column are all made of integrated cast iron components

Coming Soon

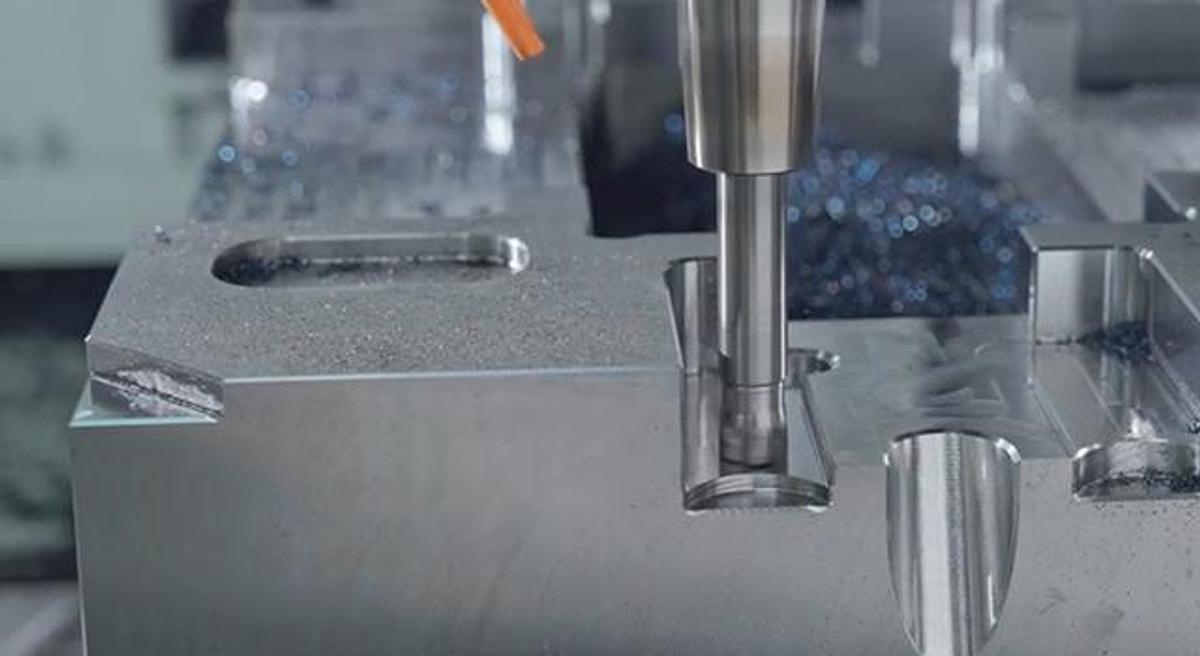

High Precision Mold

Standard Configuration

Built-in spindle HSK A63 20000rpm_30/36kW_72/86Nm (SIEMENS / HEIDENHAIN)

40 pockets chain type tool changer, HSK A63

Sealed linear scales on X/Y/Z axes

Telescopic covers for linear axis (X-axis)

Full enclosed splash guard

Two screw type and one chain type chip conveyor

High precision spindle water cooler

Air-condition electrical cabinet

Rigid tapping

Automatic lubrication system

Coolant system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical+electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Built-in spindle HSK A63 16000rpm_30/36kW_100/120Nm (SIEMENS / HEIDENHAIN)

CTS coolant through spindle + ATS

Oil cooling through ballscrew

Workpiece probe

Tool probe

Oil mist collector

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens / Heidenhain
Table Size	1,200 x 700 mm (47.24” × 27.56”)
T slot [width x distance x number]	18 × 100 × 6 mm ( 0.71” × 3.94” × 0.24”)
Max. load	1,500 kg (3,305 lb)
X/Y/Z travel	1,150 / 700 / 520 mm (45.28” / 27.56” / 20.47”)
Spindle nose to table	140 ~ 660 mm (5.51” ~ 25.98”)
Spindle motor power	30 / 36 kW
Spindle motor torque	72 / 86 Nm
Spindle speed	20,000 rpm
Dimension	3,680 x 3,180 x 3,090 mm (144.88” × 125.20” × 121.65”)
Weight	9,000 kg (19,842 lb)
