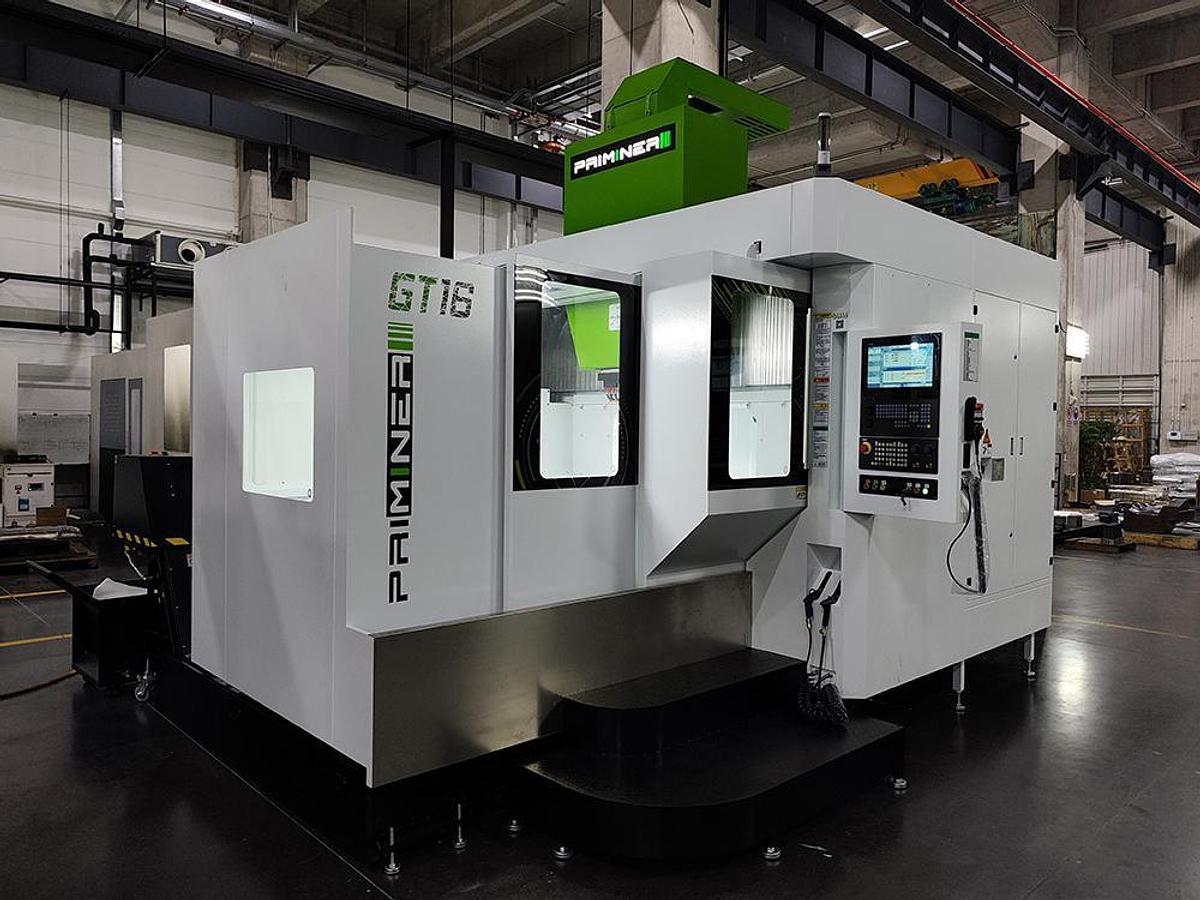

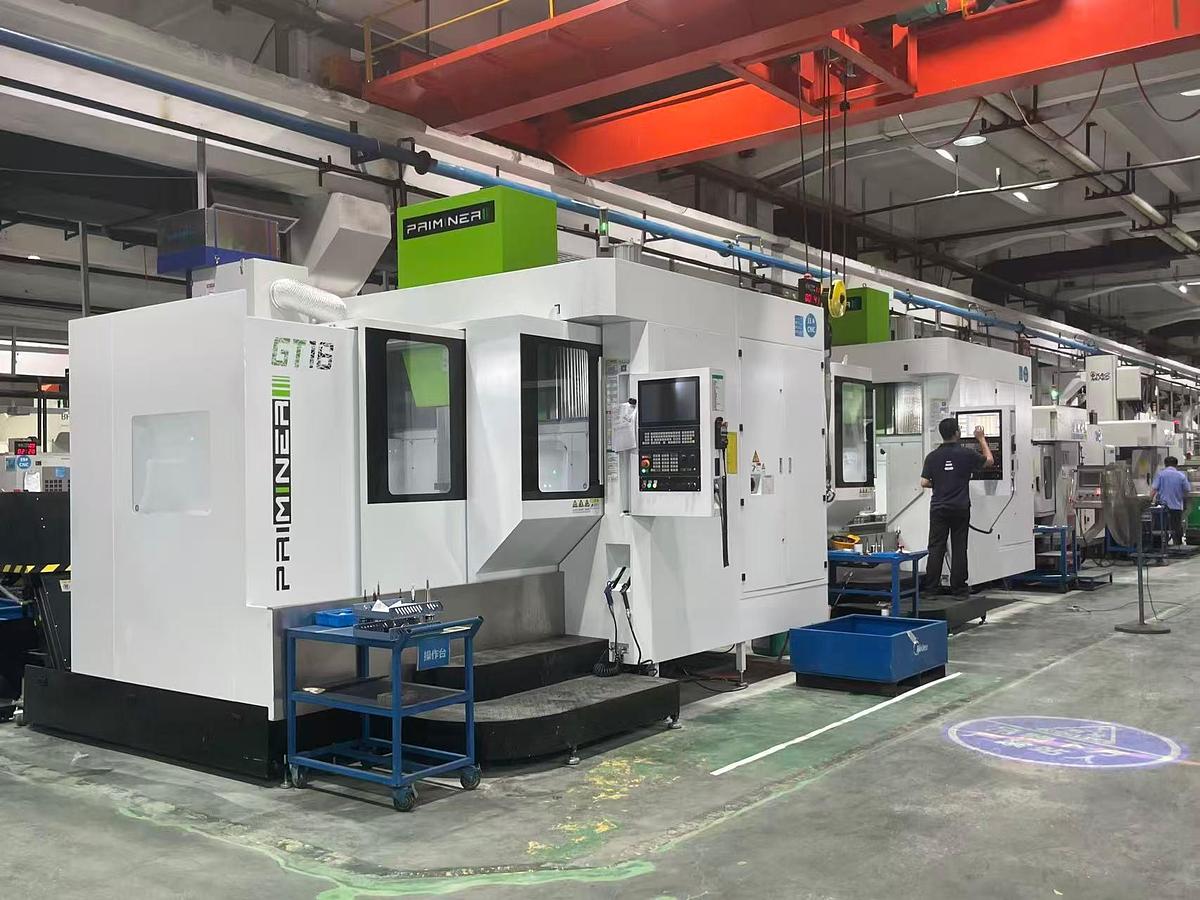

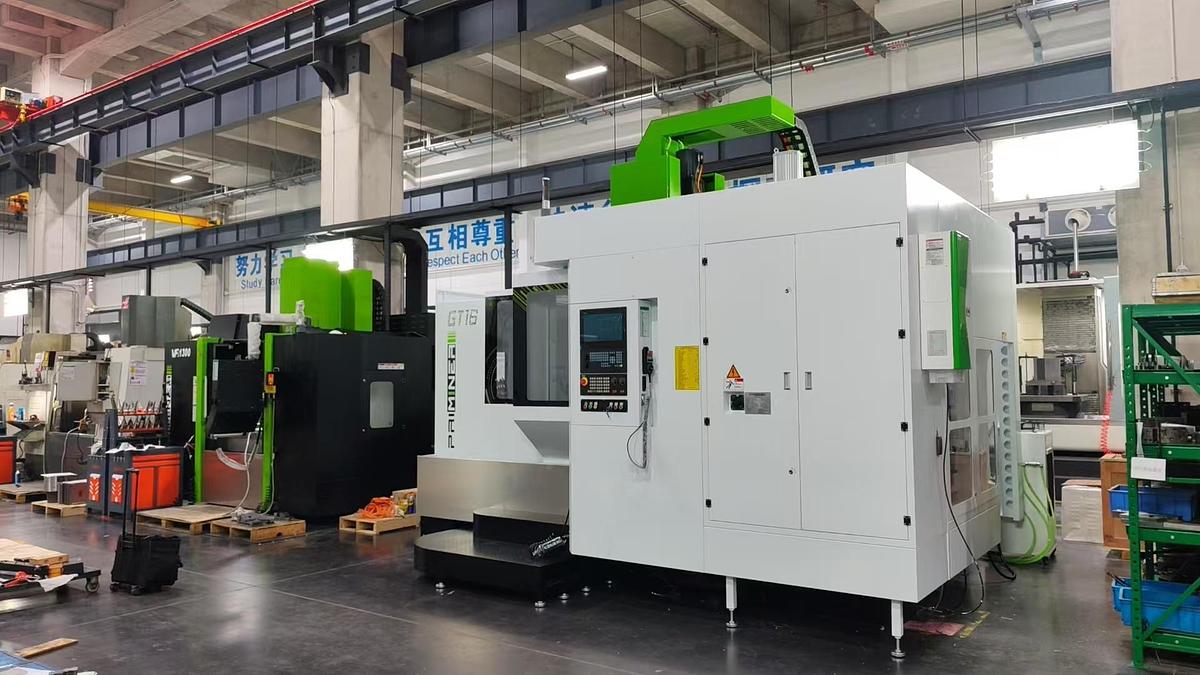

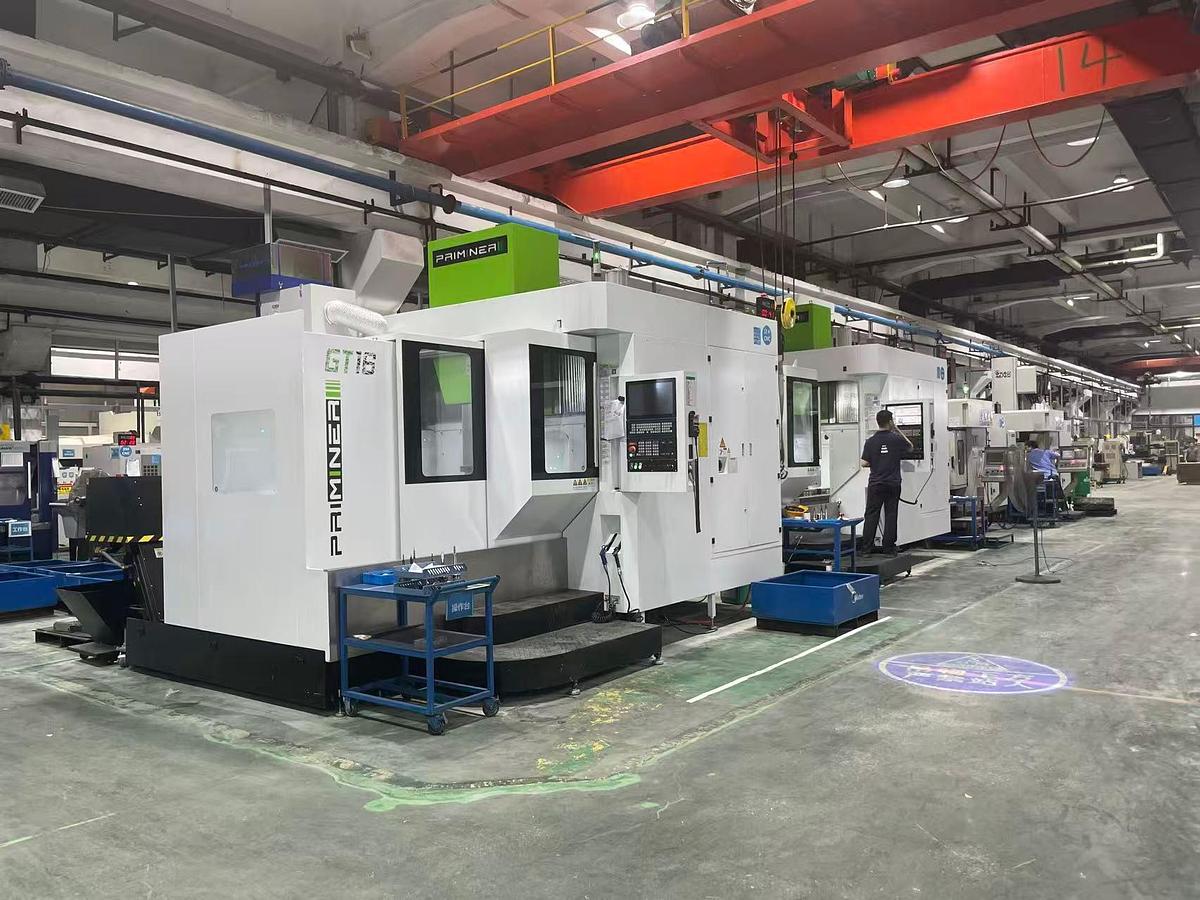

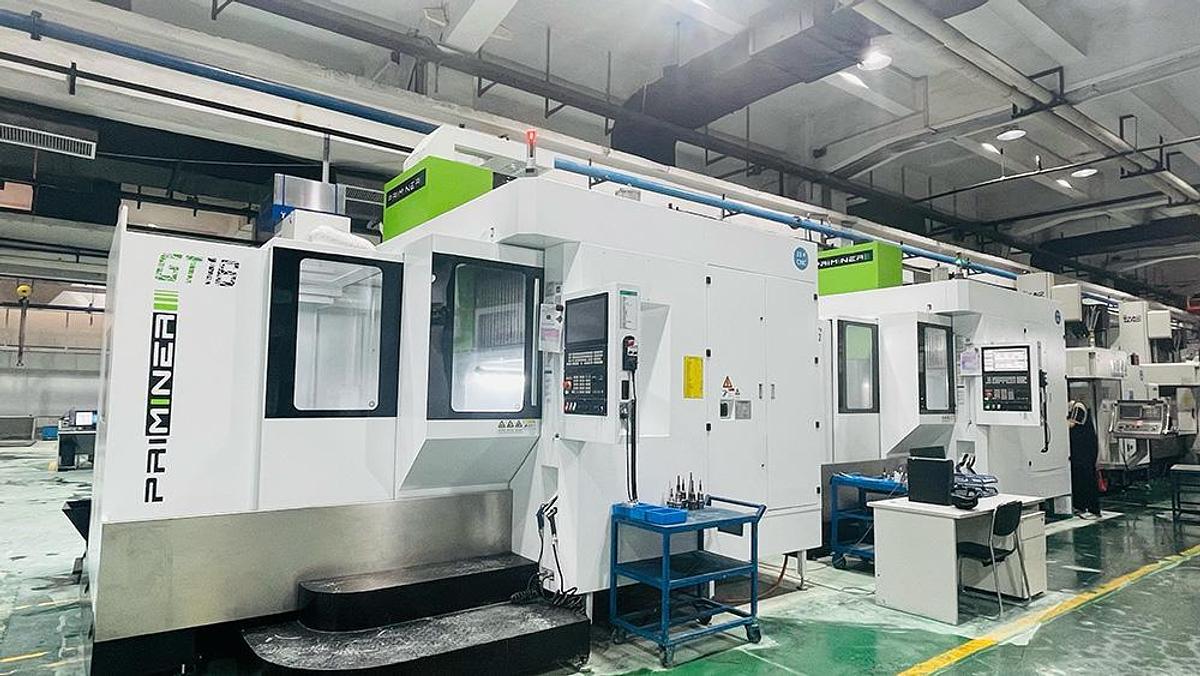

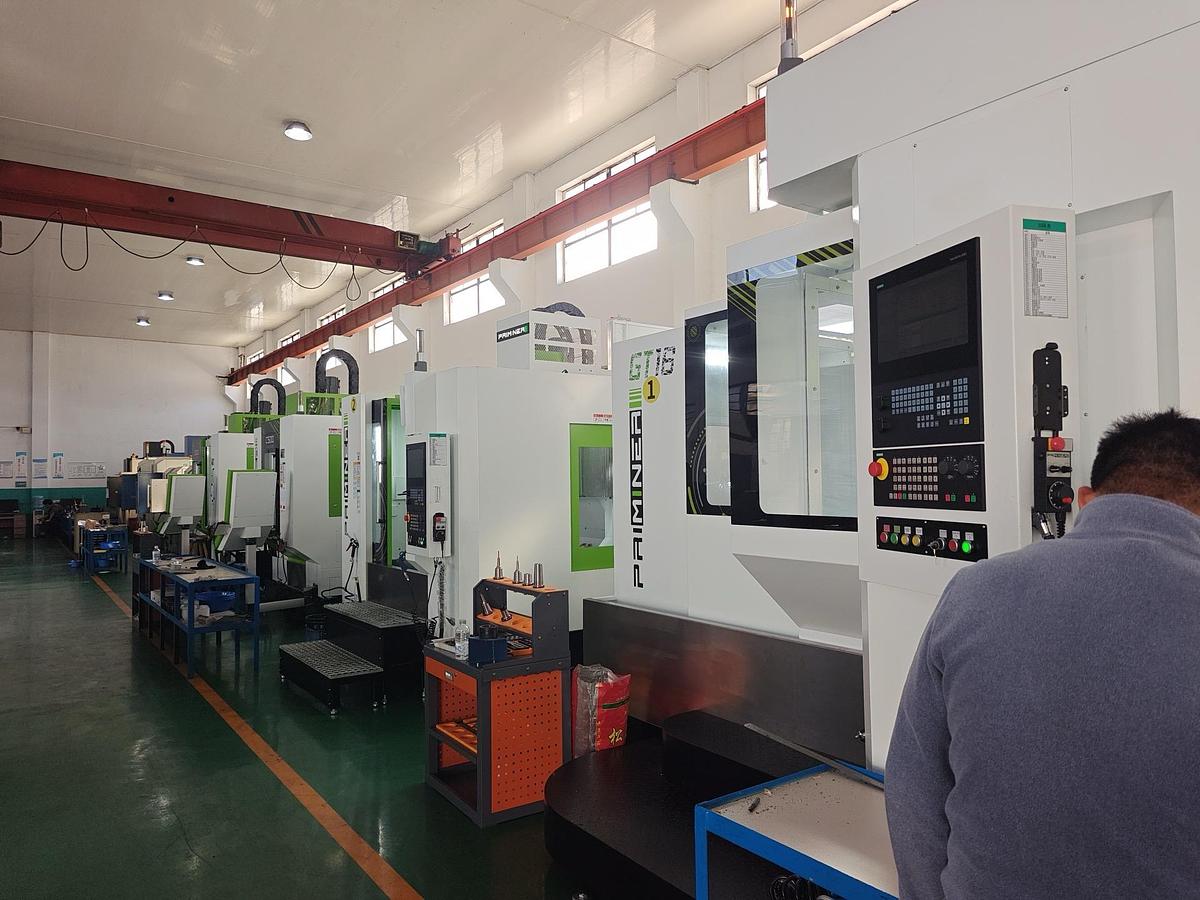

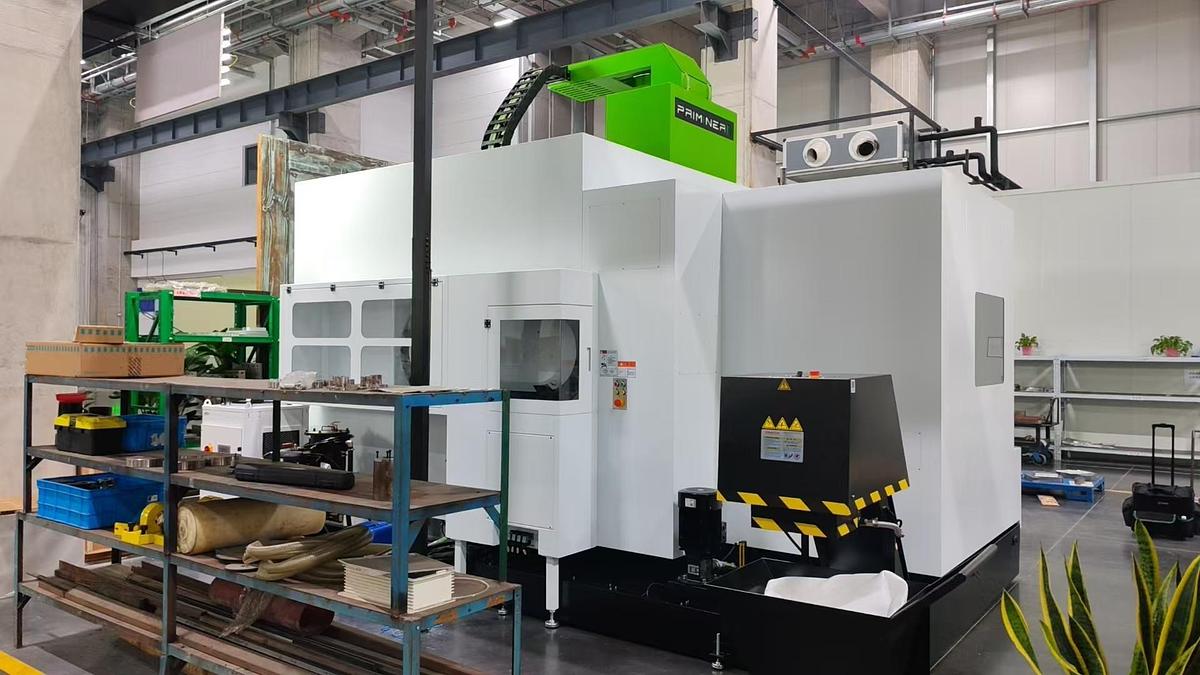

GT16

High Speed Double Column Center

High-rigidity gantry structure design

The base, crossbeam, and double column are all made of integrated cast iron components

X/Y/Z axes are equipped with Heidenhain sealed linear encoder

Coming Soon

Automation

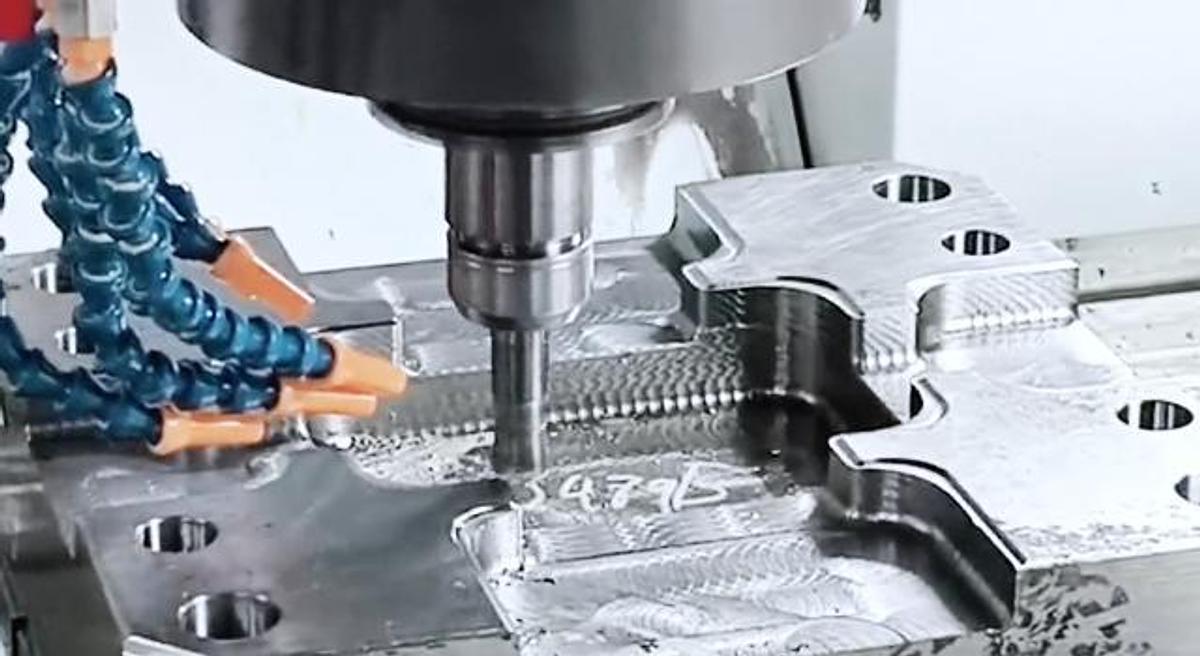

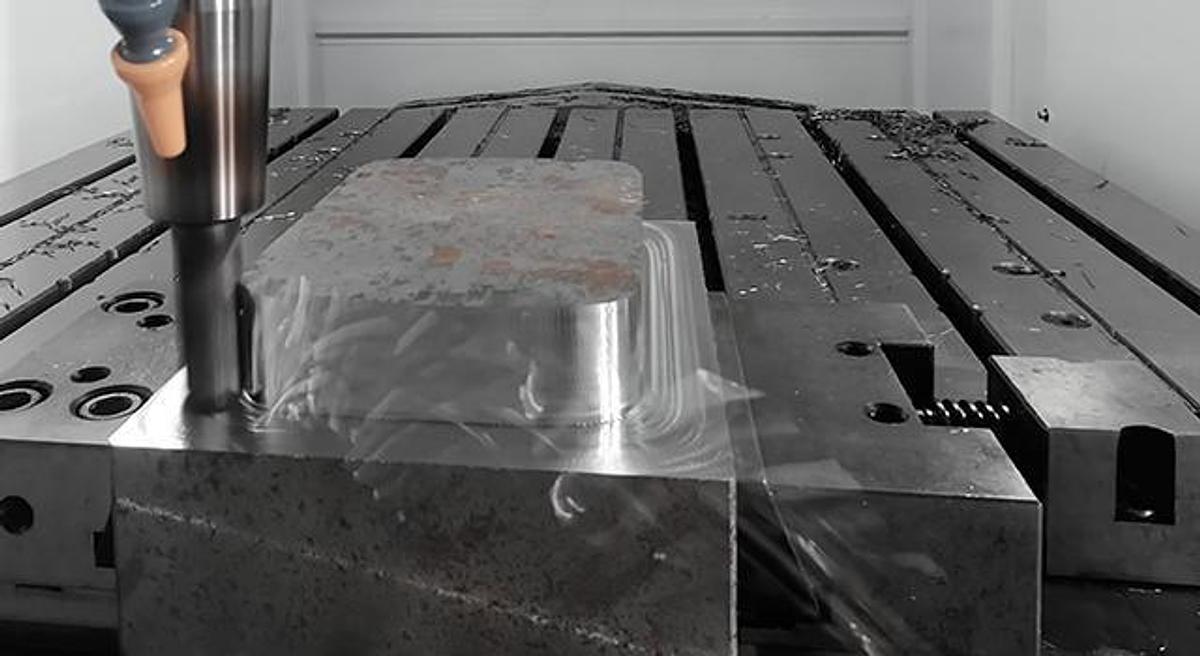

General Machining

Standard Configuration

Built-in spindle HSK A63 20000rpm_30/36kW_72/86Nm(SIEMENS / HEIDENHAIN)

40 pockets chain type tool changer, HSK A63

Sealed linear scales on X/Y/Z axes

Telescopic covers for linear axis (X-axis)

Full enclosed splash guard

Two screw type and one chain type chip conveyor

High precision spindle water cooler

Air-condition electrical cabinet

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Built-in spindle HSK A63 16000rpm_30/36kW_100/120Nm(SIEMENS / HEIDENHAIN)

Built-in Spindle HSK A100 10000rpm_54/65kW_300/360Nm(SIEMENS / HEIDENHAIN)

40 pockets tool changer, HSK A100

CTS coolant through spindle + ATS

Oil cooling through ballscrew

Workpiece probe

Tool probe

Oil mist collector

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens / Heidenhain
Table Size	1,800 x 1,050 mm (70.87” × 41.34”)
T slot [width x distance x number]	18 × 150 × 7 mm (0.71” × 5.91” × 0.28”)
Max. load	3,000 kg (6,610 lb)
X/Y/Z travel	1,600 / 1,200 / 600 mm (62.99” / 47.24” / 23.62”)
Spindle nose to table	250 ~ 850 mm (9.84” ~ 33.46”)
Distance between column	1,600 mm (62.99”)
Spindle motor power	30 / 36 kW
Spindle motor torque	72 / 86 Nm
Spindle speed	20,000 rpm
Dimension	4,805 x 3,456 x 3,850 mm (189.17” × 136.06” × 151.57”)
Weight	17,000 kg (37,479 lb)
