V11L
Description
V11L
Fully enclosed tool magazine cover and full enclosure protection for the machine
More efficient chip removal system
Optimized coolant tank structure design for better filtration and easier maintenance
Optimized pipeline installation with drag chain to extend the lifetime
General Machining
Standard Configuration
Belt drive spindle BT40/SK40/CAT40 10000rpm_9/22kW_63/135Nm (Siemens & Heidenhain)
Belt drive spindle BT40/SK40/CAT40 10000 rpm_11/18.5kW_52.5/118Nm (FANUC)
24 pockets arm type tool changer, BT40/SK40/CAT40
Roller type linear guideways on all axis
Full enclosed splash guard
Telescopic covers for linear axis
Chain type chip conveyor
Spindle oil cooler
Air-condition electrical cabinet

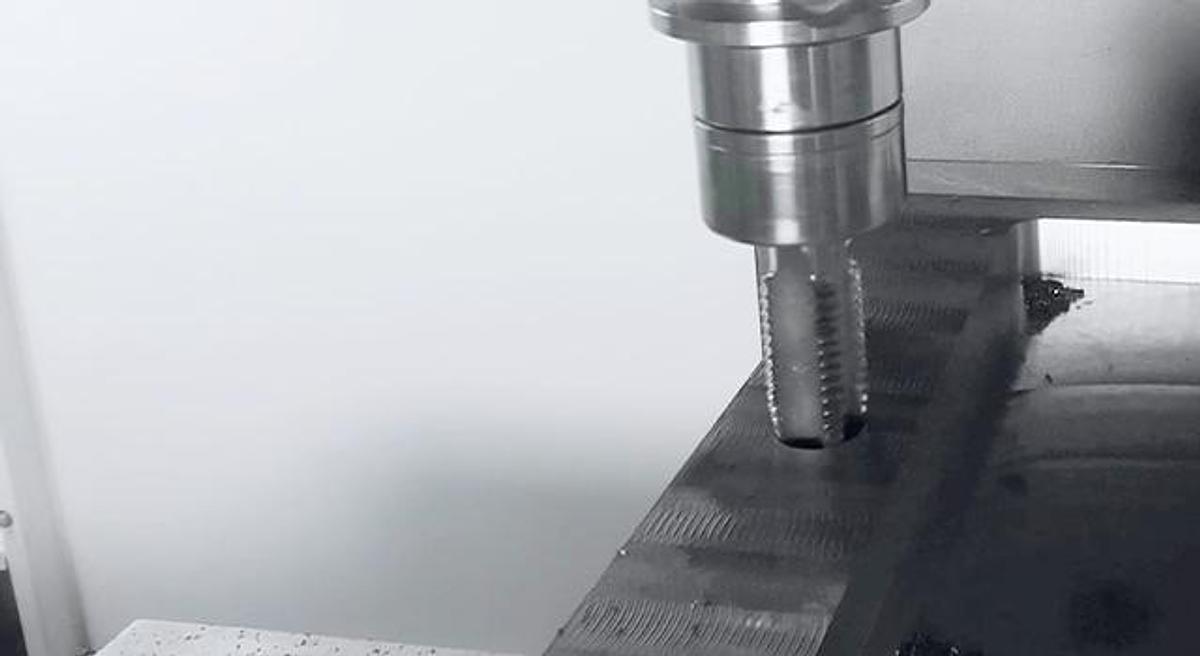

Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical + electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Direct-drive spindle BBT40/SK40/CAT40 12000 rpm, 9/22kW, 63/135Nm
Direct-drive spindle BBT40/SK40/CAT40 12000 rpm, 11/18.5kW, 52.5/118Nm
Direct-drive spindle BBT40/SK40/CAT40 15000 rpm_8.5/33.5kW_63/135Nm（SIEMENS & HEIDENHAIN Control System）
Direct drive spindle BBT40/SK40/CAT40 15000 rpm_9/15kW__57.3/119Nm (FANUC)
28 pockets arm type tool changer, BT40/SK40/CAT40
30 pockets arm type tool changer, BT40/SK40/CAT40
40 pockets arm type tool changer, BT40/SK40/CAT40
24 pockets arm type tool changer, BT50/SK50/CAT50
Additional rotary 4th axis
Additional rotary 4/5th axis
Linear scales on X/Y/Z axis
CTS Coolant through spindle + ATS
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Extra 200GB SSD program memory (only available on SIEMENS)
High Performance Machining Center
General Machining
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Control System | Siemens / Heidenhain |
| Table Size | 1,200 x 600 mm (47.24″ x 23.62″) |
| T slot [width x distance x number] | 18 × 100 × 5mm (0.71″ × 3.94″ × 0.20″) |
| Max. load | 1,000 kg (2,205 lb) |
| X/Y/Z travel | 1,100 / 600 / 600 mm (43.31″ / 23.62″ / 23.62″) |
| X/Y/Z rapid feedrate | 36 m/min |
| Spindle nose to table | 150 ~ 750 mm (5.91″ ~ 29.53″) |
| Spindle Taper | SK40 / BT40 / CAT40 |
| Spindle motor power | 9 / 22 kW |
| Spindle motor torque | 63 / 135 Nm |
| Spindle speed | 12,000 rpm |
| Capacity | DT24 pockets |
| Tool diameter | Ø78 / Ø125 mm (Ø3.07″ / Ø4.92″) |
| Tool length | 300 mm (11.81″) |
| Tool weight | 8 kg (17.64 lb) |
| Dimension | 3,845 x 2,320 x 3,120 mm (151.38″ × 91.34″ × 122.83″) |
| Weight | 6,500 kg (14,330 lb) |
