V2516

Double Column Machining Center

Gantry-type structural design

The worktable adopts ball screw drive

The base, crossbeam, and double column are all made of integrated cast iron components

Extra wide column to increase connection surface with the crossbeam to decrease vibration during cutting（1,600mm）

X/Y axes with high torque roller linear guideways，Z axis with high torque boxway guideways

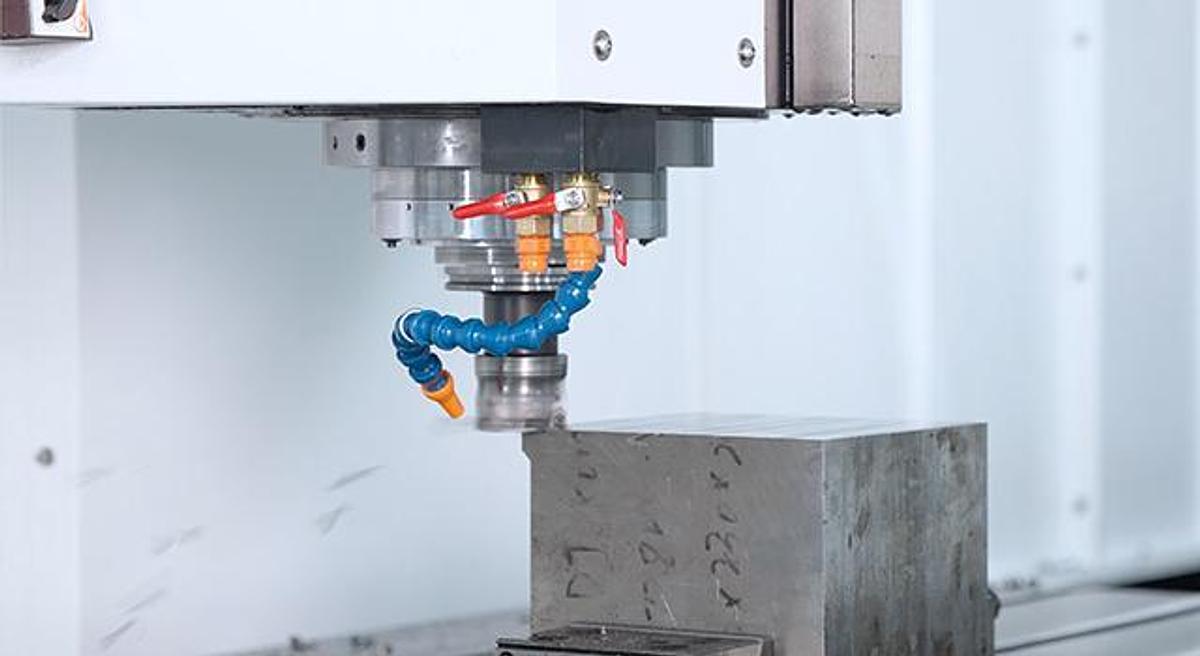

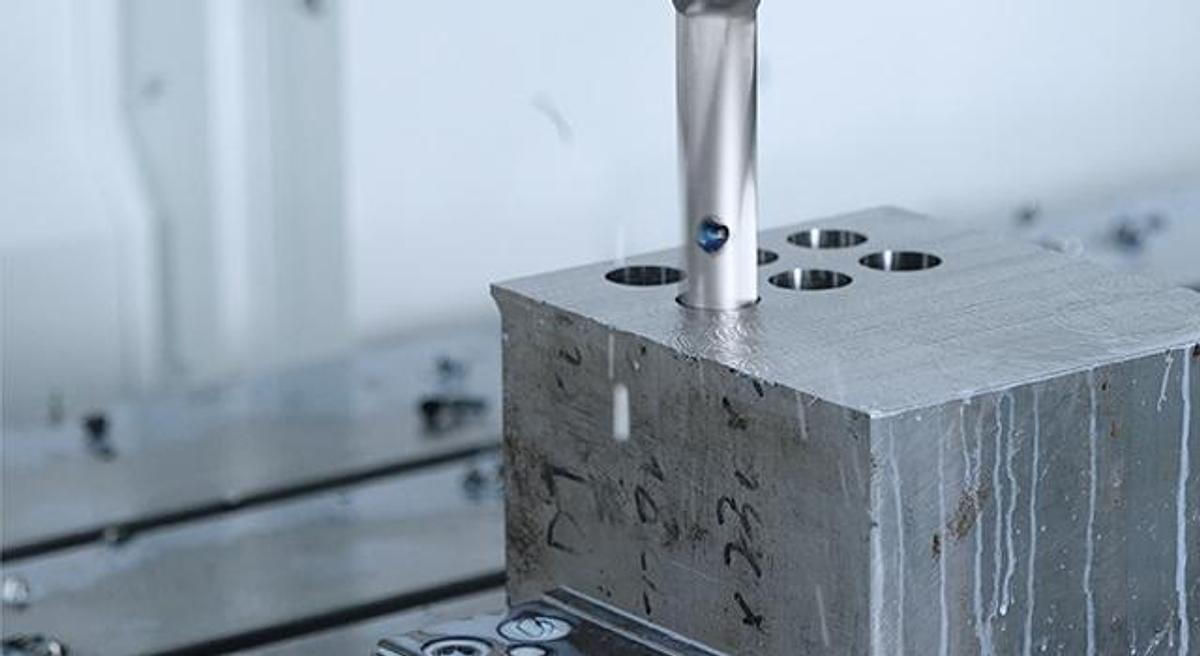

General Machining

Standard Configuration

Belt drive spindle BT50/SK50 6000 rpm_17/42 kW_183/400Nm (SIEMENS / Heidenhain)

Belt drive spindle BT50/SK50 6000 rpm_15/20.3 kW_143/259Nm (FANUC)

Roller type linear guideways on all axis

Full enclosed splash guard

Telescopic covers for linear axis (X-axis)

Two screw type and one chain type chip conveyor

Spindle oil cooler

Air-condition electrical cabinet

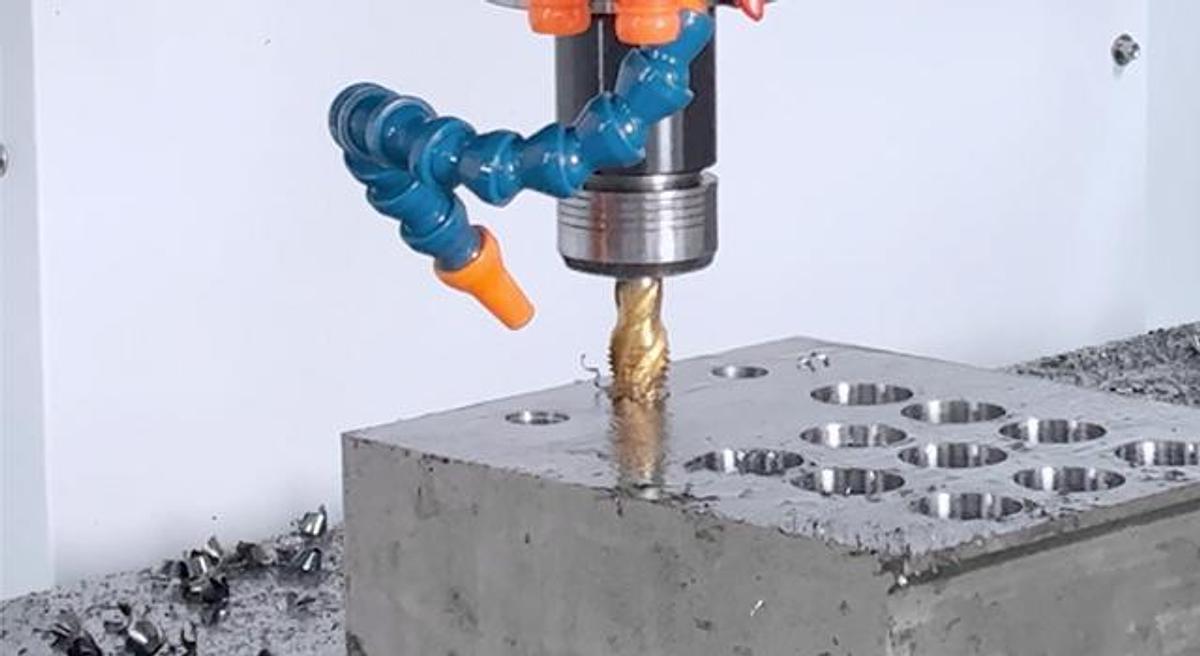

Rigid tapping

Automatic lubrication system

Coolant system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Built-in spindle HSK-A100 12000rpm, 20/22.5kW, 298/346Nm (SIEMENS)

60 pockets chain type tool changer, BT50/SK50

40 pockets chain type tool changer, HSK A100

Additional rotary 4th axis

Additional rotary 4/5th axis

Sealed linear scales on X/Y/Z axes

CTS coolant through spindle + ATS

Workpiece probe

Tool probe

Oil skimmer

Extra 200GB SSD program memory (Only available on SIEMENS Control)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens / Heidenhain
Table Size	2,500 x 1,400 mm (98.43” × 55.12”)
T slot [width x distance x number]	22 × 170 × 7 mm (0.87” × 6.69” × 0.28”)
Max. load	7,000 kg (15,433 lbs)
X/Y/Z travel	2,500 / 1,600 / 800 mm (98.43” / 62.99” / 31.50”)
X/Y/Z rapid feedrate	15 /20 / 20 m/min
Spindle nose to table	270 ~ 1,070 mm (10.63” ~ 42.13”)
Distance between column	1,600 mm (62.99”)
Spindle Taper	BT50 / SK50
Spindle motor power	17 / 42 kW
Spindle motor torque	183 / 400 Nm
Spindle speed	6,000 rpm
Dimension	7,470 x 4,160 x 4,200 mm (294.09” × 163.78” × 165.35”)
Weight	20,500 kg (45,195 lbs)
