Description

V7L

High Performance Machining Center


  • Fully enclosed tool magazine cover and full enclosure protection for the machine

  • More efficient chip removal system

  • Optimized coolant tank structure design for better filtration and easier maintenance

  • Optimized pipeline installation with drag chain to extend the lifetime

    • General Machining

    Standard Configuration

  • Belt drive spindle BT40/SK40/CAT40 10000 rpm_9/22kW_63/135Nm (Siemens)

  • Belt drive spindle BT40/SK40/CAT40 10000 rpm_7.5/15kW_35.8/95.5Nm (FANUC)

  • 24 pockets arm type tool changer, BT40/SK40/CAT40

  • Roller type linear guideways on all axis

  • Full enclosed splash guard

  • Telescopic covers for linear axis

  • Chain type chip conveyor

  • Spindle oil cooler

  • Air-condition electrical cabinet

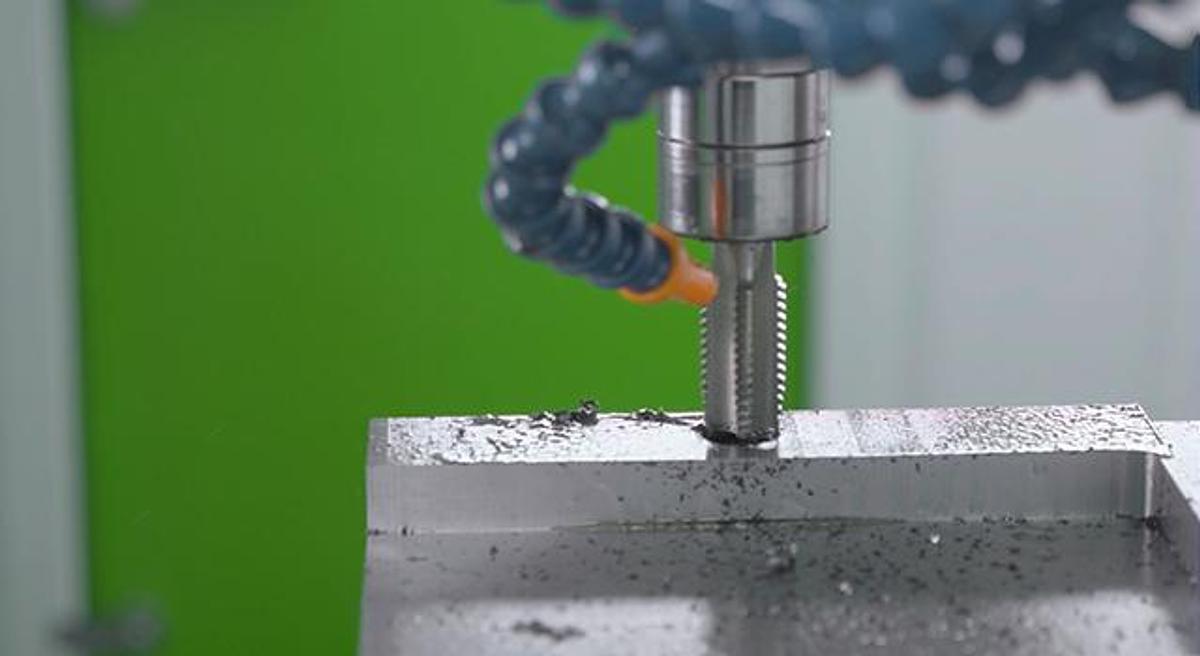

  • Rigid tapping

  • Automatic lubrication system

  • Air blast during cutting

  • LED working lamp

  • End of program light

  • Electrical handwheel (MPG)

  • Tool box

  • Leveling bolts and blocks

  • Coolant gun

  • Air gun

  • User manual (mechanical + electrical parts)

  • Ethernet, CF card and USB interface

    • Optional Configuration

  • Direct-drive spindle BBT40/SK40/CAT40 12000 rpm, 9/22kW, 63/135Nm

  • Direct-drive spindle BBT40/SK40/CAT40 12000 rpm, 11/18.5kW, 52.5/118Nm

  • Direct-drive spindle BBT40/SK40/CAT40 15000 rpm_8.5/33.5kW_63/135Nm

  • 28 pockets arm type tool changer, BT40/SK40/CAT40

  • 30 pockets arm type tool changer, BT40/SK40/CAT40

  • Additional rotary 4th axis

  • Linear scales on X/Y/Z axis

  • CTS Coolant through spindle + ATS

  • Oil mist collector

  • Tool probe

  • Oil skimmer

  • Extra 200GB SSD program memory (only available on SIEMENS)

    • Specifications

    ManufacturerPRIMINER
    ConditionNew
    Control SystemSiemens
    Table Size900 x 420 mm （35.43” × 16.54”）
    T slot [width x distance x number]14 × 125 × 3mm (0.55” × 4.92” × 0.12”)
    Max. load500 kg (1,103 lb)
    X/Y/Z travel760 / 450 / 520 mm (29.92” / 17.72” / 20.47”)
    X/Y/Z rapid feedrate48 m/min
    Spindle nose to table100 ~ 620 mm (3.94” ~ 24.41”)
    Spindle TaperSK40 / BT40 / CAT40
    Spindle motor power9 / 22 kW
    Spindle motor torque63 / 135 Nm
    Spindle speed10,000 rpm
    CapacityDT24 pockets
    Tool diameterØ78 / Ø125 mm (Ø3.07” / Ø4.92”)
    Tool length300 mm (11.81”)
    Tool weight8 kg (17.64 lb)
    Dimension3,250 x 2,710 x 2,900 mm (127.95” × 106.69” × 114.17”)
    Weight4,500 kg (9,920 lb)
