GT420-5X
Description
GT420-5X
Gantry-type structural design
The worktable adopts a ballscrew drive with a full closed-loop control system using a sealed linear scale
The base is make of one-piece cast-iron
Extra-wide column design
DD driven double arm head
A/C axes adopt direct-drive (DD) motor technology

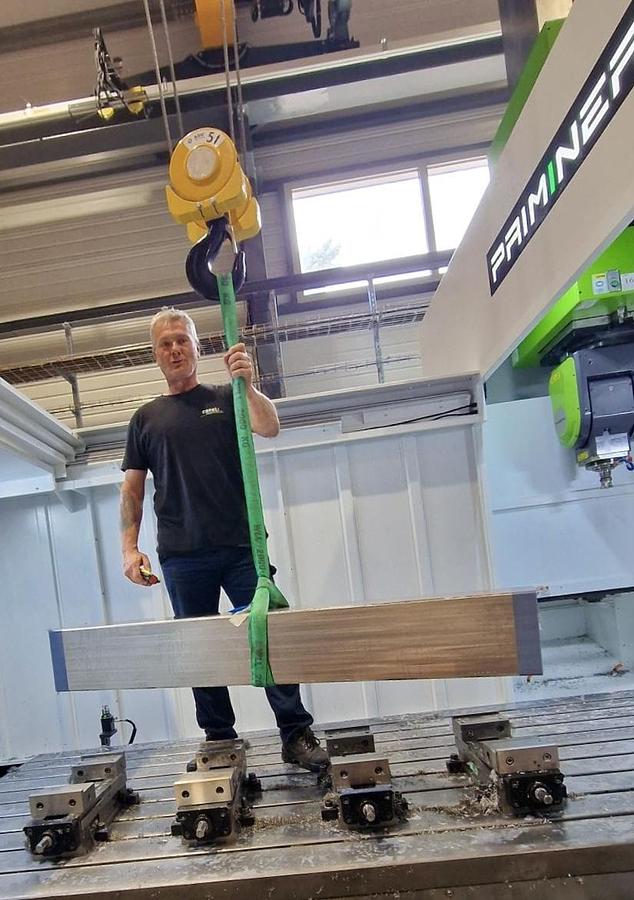

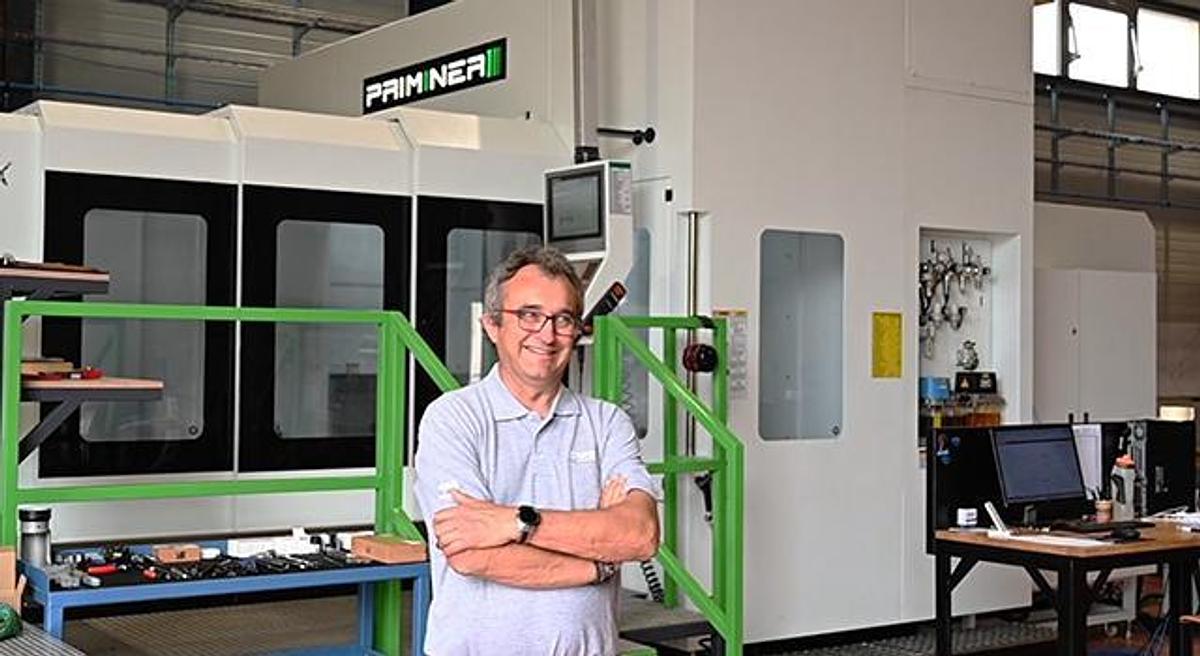

Case Study
Standard Configuration
Model S AC head, bulit-in spindle HSK A63 24000rpm_30/35kW_72/85Nm (SIEMENS/ HEIDENHAIN)
60 pockets chain type tool changer, HSK A63
Sealed linear scales on X/Y/Z axes
Rotary encoder on A/C axes
Direct drive head
Full enclosed splash guard
Telescopic covers for linear axis (X-axis)
Two screw type and one chain type chip conveyor
High precision spindle water cooler
Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Model M AC head, bulit-in spindle HSK A100 15000rpm_40/50kW_103/129Nm (SIEMENS/ HEIDENHAIN)
40 pockets tool changer, HSK A100
60 pockets tool changer, HSK A100
CTS coolant through spindle + ATS
Workpiece probe
Tool probe
Oil skimmer
Dynamic collision monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
Double Column 5-axis Machining Center
Coming Soon
Case Study
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Table Size | 4,000 x 1,900 mm (157.48” × 74.80”) |
| T slot [width x distance x number] | 22 × 170 × 11 mm (0.87” × 6.69” × 0.43”) |
| Max. load | 12,000 kg (26,455 lbs) |
| X/Y/Z travel | 4,200 / 2,700 / 1,000 mm (165.35” / 106.30” / 39.37”) |
| A/C Travel | ±108° / ±360° |
| Spindle taper | HSK A63 |
| Spindle motor power | 30 / 35 kW |
| Spindle motor torque | 72 / 85 Nm |
| Spindle speed | 24,000 rpm |
| Spindle nose to table | 155 ～ 1,155 mm (6.10” ~ 45.47”) |
| 90° spindle center line to table | 465 ～ 1,465 mm (18.31” ~ 57.68”) |
| Distance between column | 2,000 mm (78.74”) |
| Rapid feed X/Y/Z | 15 / 20 / 20 m/min |
| Rotation speed B/C | 50 rpm |
| CNC control | Siemens / Heidenhain |
