Stellaris P18X
Description
Stellaris P18X

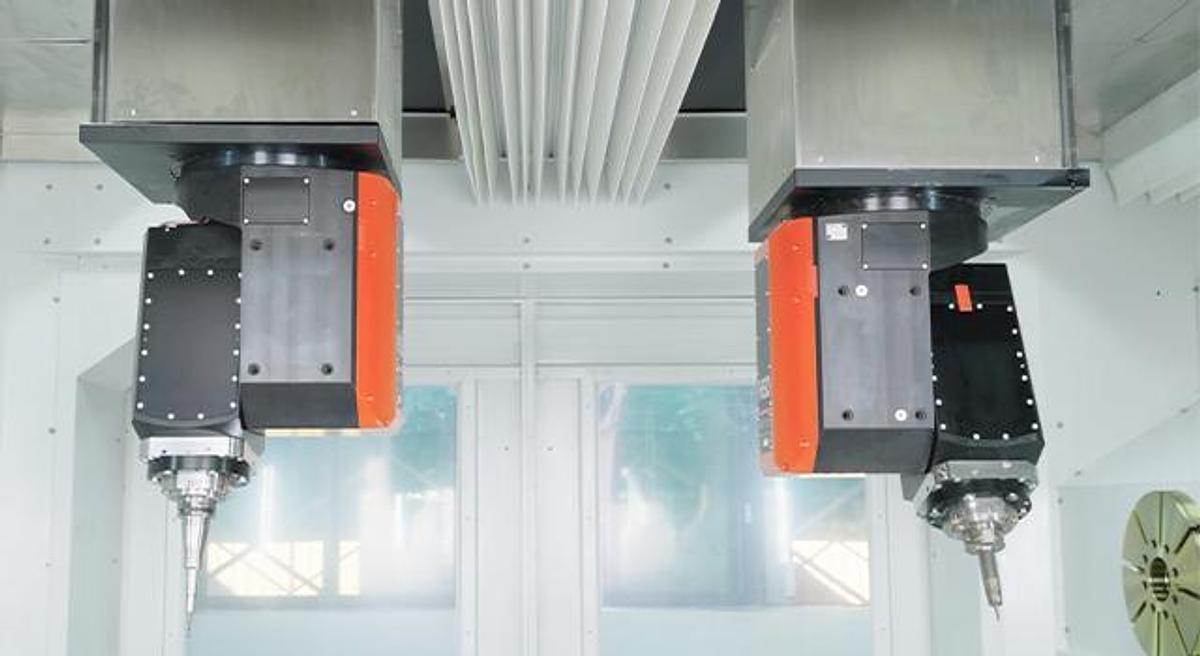

Dual-channel, dual milling head, 11-axis simultaneous independent machining
Linear motor direct-drive 110 m/min, maximum acceleration 1G
Optimized footprint for efficient robotic loading/unloading and improved logistics design
Others
Standard Configuration
Direct drive spindle HSK A63 15000rpm_8.5/33.5kW_63/135Nm (SIEMENS / HEIDENHAIN)
Direct drive spindle BBT40/SK40/CAT40 12000 rpm_11/18.5kW_52.5/118Nm (FANUC)
Roller gear cam drive rotary table
Rotary encoder
Full enclosed splash guard
60 pockets chain type tool changer, HSK A63
40 pockets chain type tool changer, BBT40/SK40/CAT40
Chain type chip conveyor
Spindle oil cooler
Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Direct drive spindle BBT40/SK40/CAT40 12000 rpm_9/22kW_63/135Nm (SIEMENS)
Direct drive spindle BBT40/SK40/CAT40 15000 rpm_8.5/33.5kW_63/135Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 18000rpm_30/36kW_85/102Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 20000rpm_20/24kW_48/58Nm (SIEMENS / HEIDENHAIN)
Linear scales on X/Y/Z axis
40 pockets chain type tool changer,BT40/SK40/CAT40/HSK A63
60 pockets chain type tool change,BT40/SK40/CAT40
90 pockets tool changer,BT40/SK40/CAT40/HSK A63
CTS coolant through spindle + ATS
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Dynamic collision monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
High Speed Gantry Type Multi Axes Machining Center
Coming Soon
Others

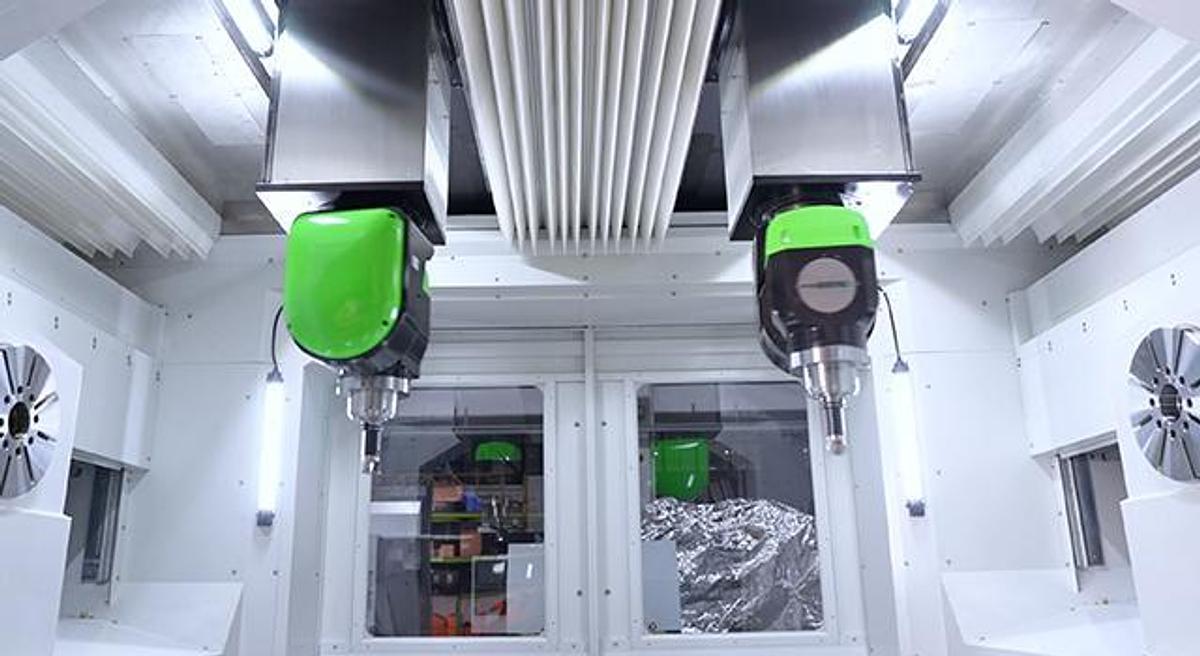

Delivery P18X
delivered to Xpeng
HSD Milling Head
-
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| X/Y/Z travel | 3300 (2450x2) /1800/1200 mm (129.92” (96.46”×2) / 70.87” / 47.24”) |
| Max. rapid feed X/Y/Z | 100 m/min |
| Max. acceleration X/Y/Z | 6 / 6 / 10 m/s2 |
| B/C Travel | +110° ~ +270° |
| Spindle taper | HSK A63 |
| Spindle rotation speed | 20,000 rpm |
| Spindle motor power | 20 / 25 kW |
| Spindle motor torque | 35 / 52 Nm |
| Tool Changer | 39x2 pockets |
| Positioning accuracy X/Y/Z (VDI 3441 Full travel) | 0.030 / 0.030 / 0.030 mm |
| Repeatability accuracy X/Y/Z (VDI 3441) | 0.010 / 0.010 / 0.010 mm |
