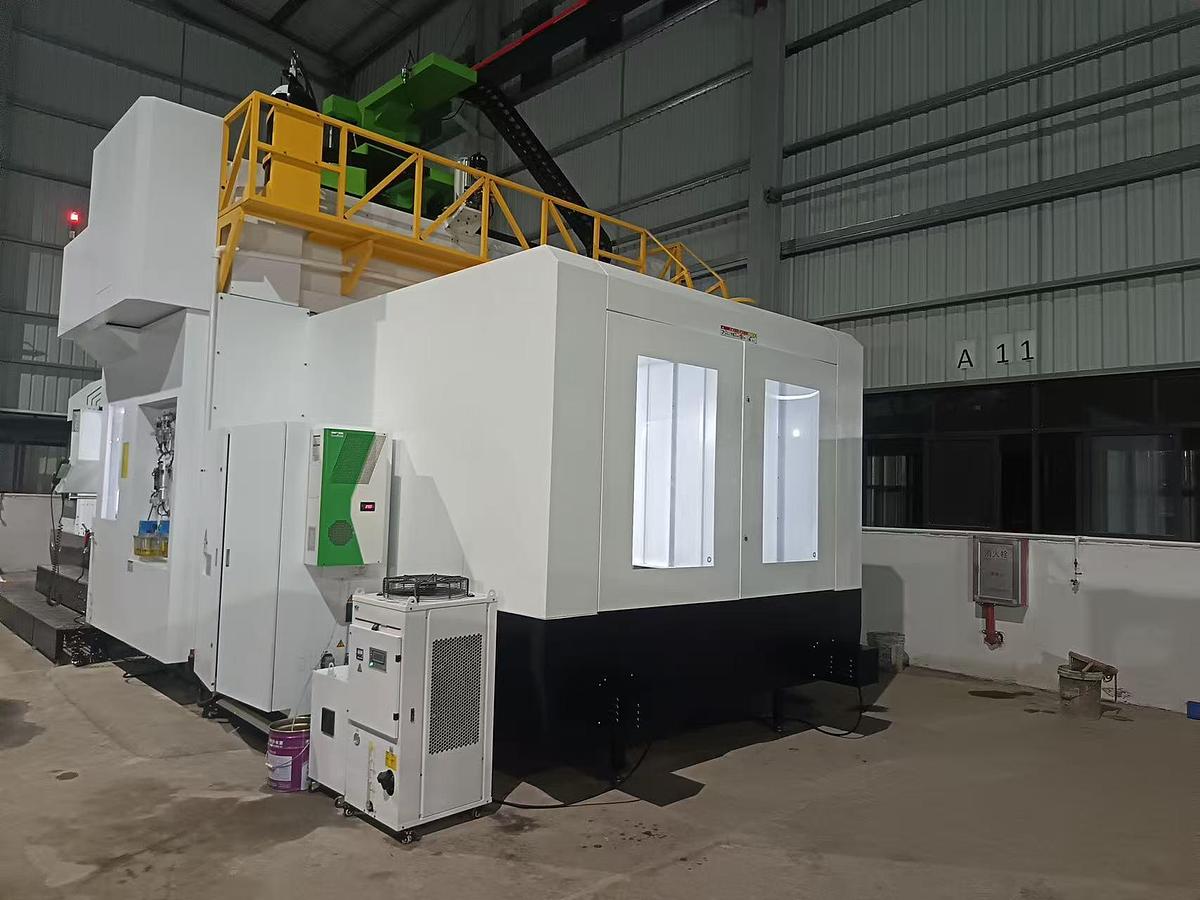

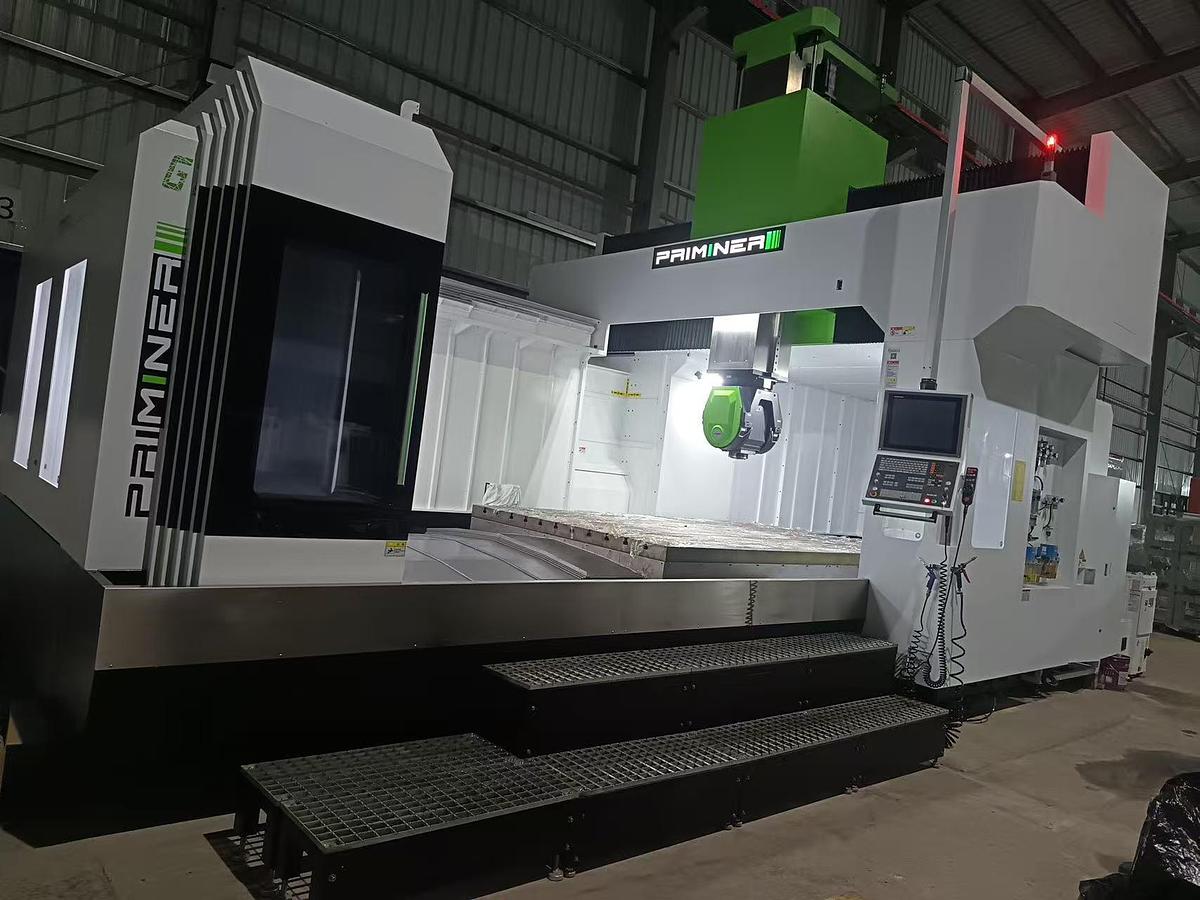

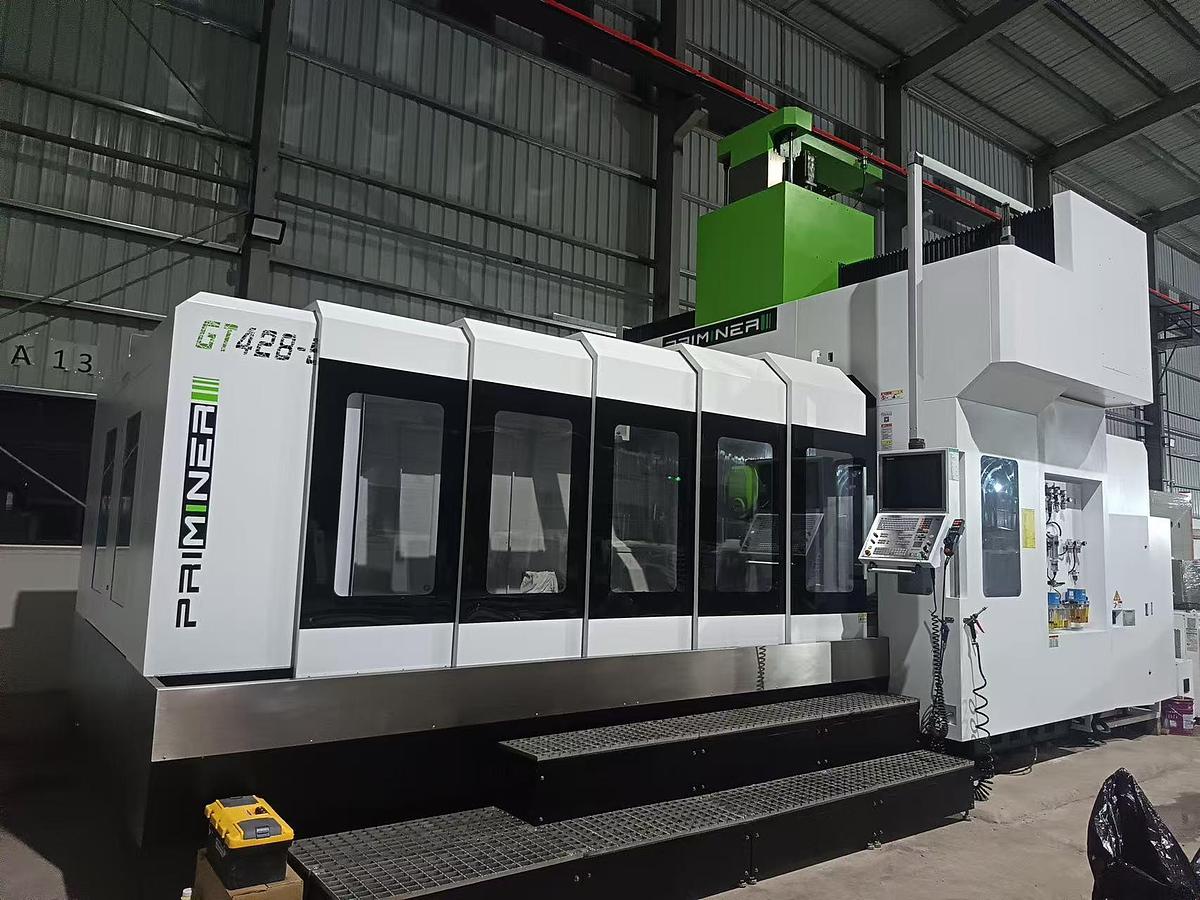

GT428-5X

High Rigidity Double Column 5-axis Machining Center

Gantry-type structural design

The base is make of one-piece cast-iron

DD driven double arm head

A/C axes adopt direct drive (DD) motor technology

Coming Soon

Standard Configuration

Model XL AC head, built in spindle HSK A100 12000rpm_40/47kW_248/293Nm (SIEMENS / HEIDENHAIN)

60 pockets tool changer, HSK A100

Y axis with dual direct drive

Sealed linear scales on X/Y/Z axes

Rotary encoder on A/C axes

Direct drive head

Full enclosed splash guard

Telescopic covers for linear axis (X-axis)

Two screw type and one chain type chip conveyor

High precision spindle water cooler

Air-condition electrical cabinet

Rigid tapping

Automatic lubrication system

Coolant system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical+electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Model M AC head, bulit-in spindle HSK A100 15000rpm_40/50kW_103/129Nm (SIEMENS/ HEIDENHAIN)

CTS coolant through spindle + ATS

Workpiece probe

Tool probe

Oil skimmer

Dynamic collision monitoring (DCM)

Kinematics

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Table Size	4,000 x 2,400 mm (157.48” × 94.49”)
T slot [width x distance x number]	28 × 200 × 11 mm (1.10” × 7.87” × 0.43”)
Max. load	15,000 kg (33,070 lbs)
X/Y/Z travel	4,200 / 3,300 / 1,200 mm (165.35” / 129.92” / 47.24”)
A/C Travel	±108 °/ ± 360 °
Spindle taper	HSK A100
Spindle motor power	40 / 47 kW
Spindle motor torque	248 / 293 Nm
Spindle speed	12,000 rpm
Spindle nose to table	-40 ~ 1,160 mm (-1.57” ~ 45.67”)
90° spindle center line to table	310 ～ 1,510 mm (12.20” ~ 59.45”)
Distance between columns	2,800 mm (110.24”)
Rapid feed X/Y/Z	12/15/20 m/min
Rotation speed A/C	50 rpm
CNC control	Siemens / Heidenhain
