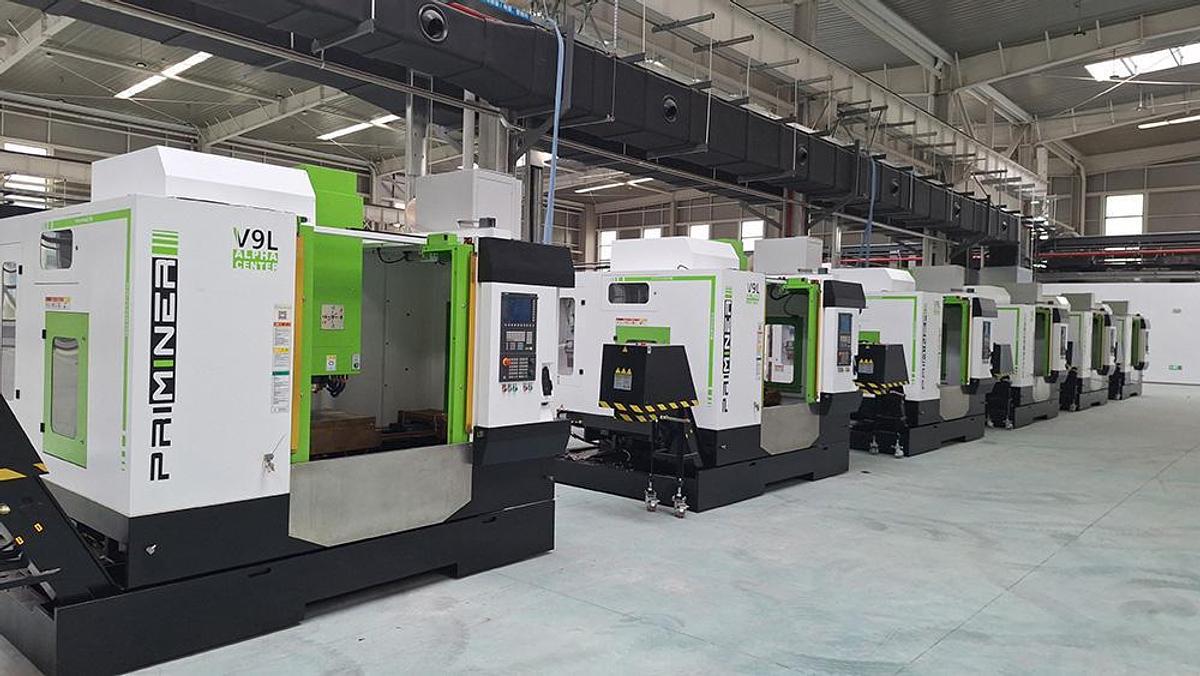

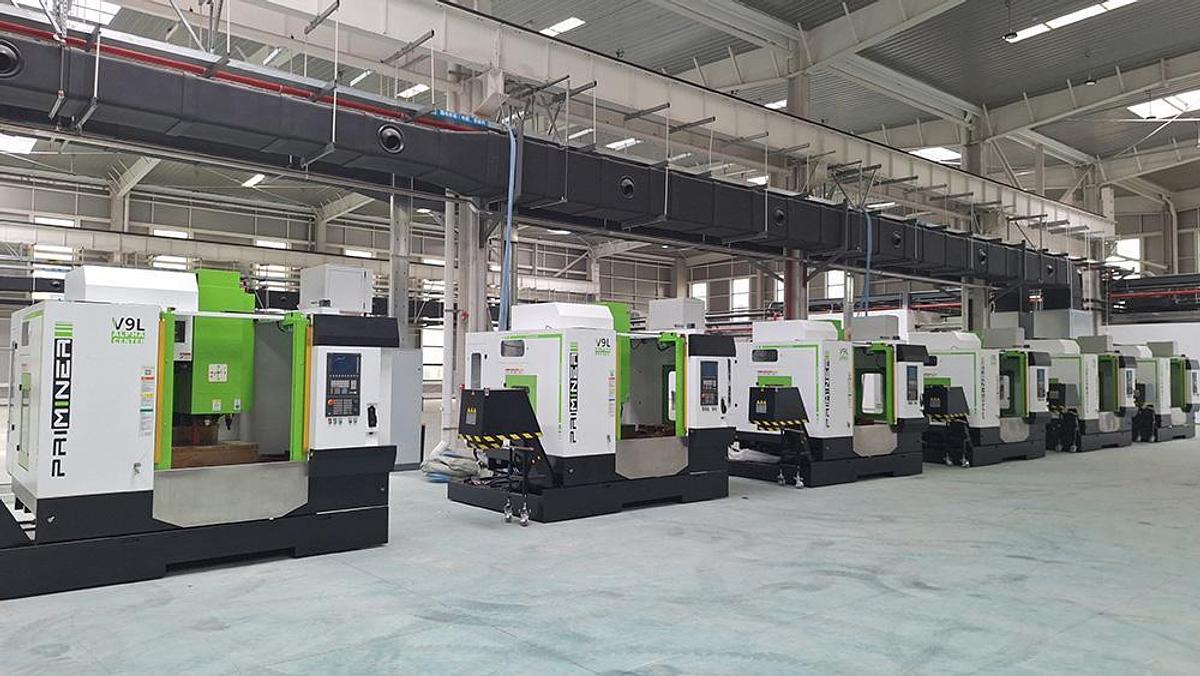

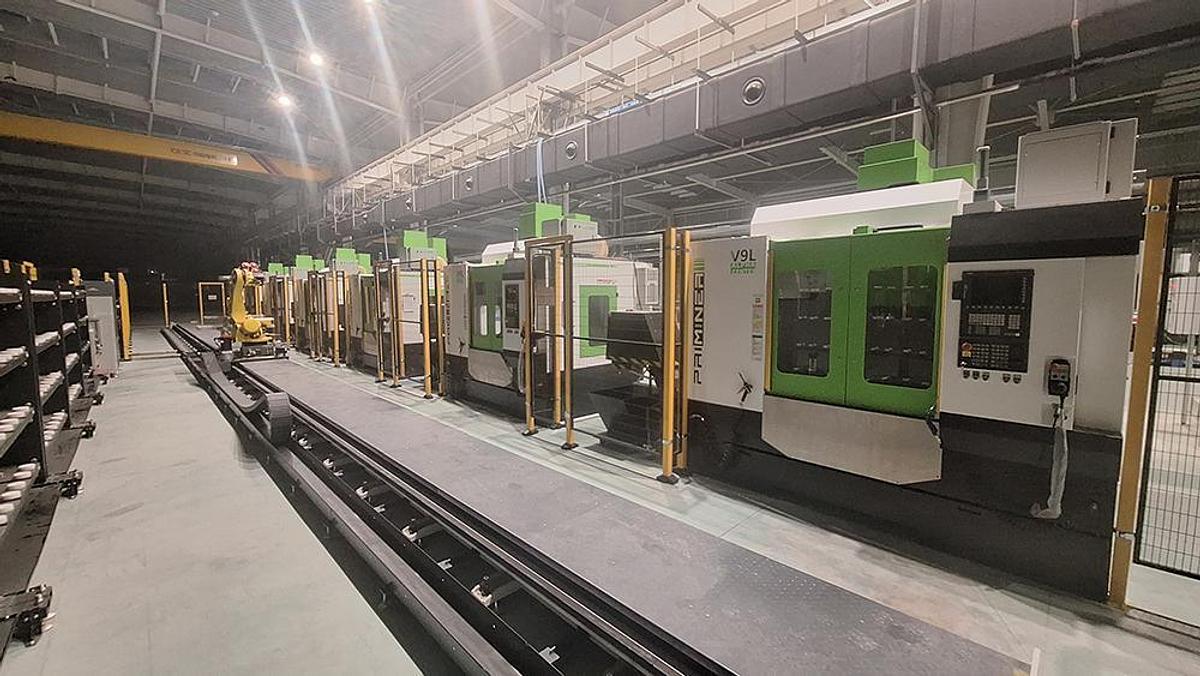

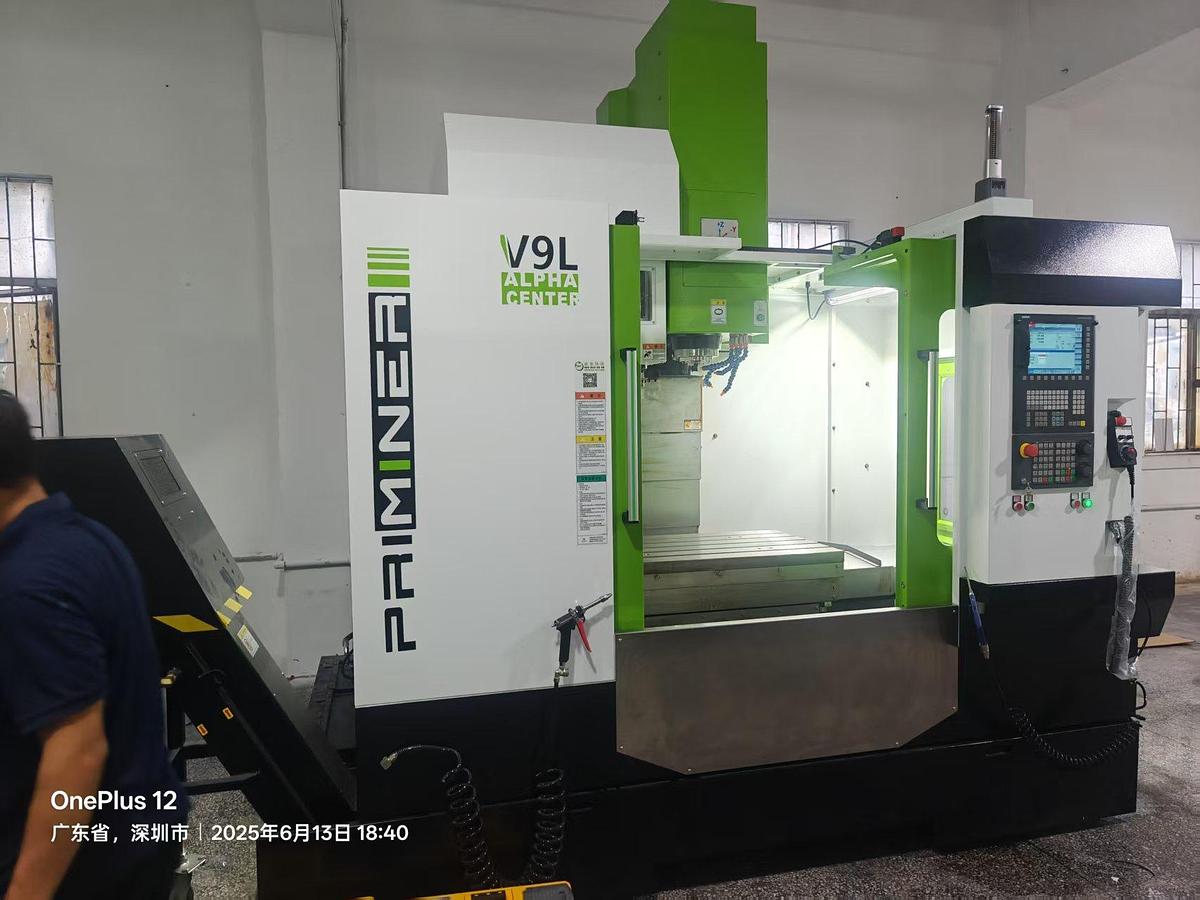

V9L

High Torque Linear Guide Machine Center

Entry-level class available with various control systems

Cost-efficient parts production

Space-saving machine design

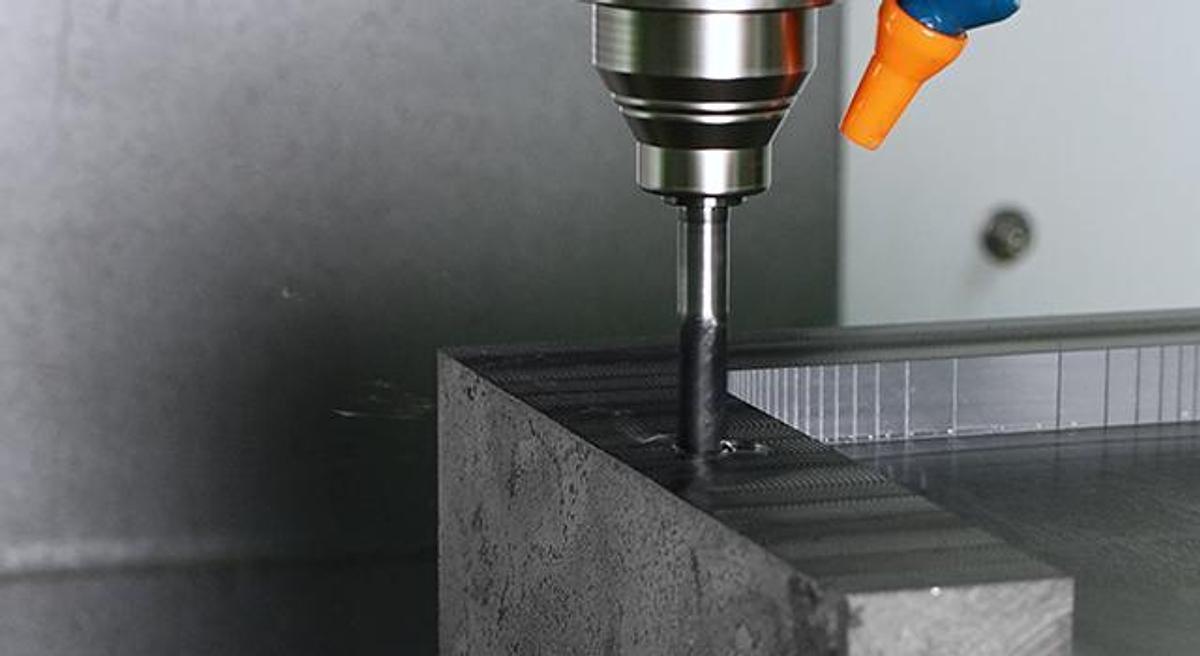

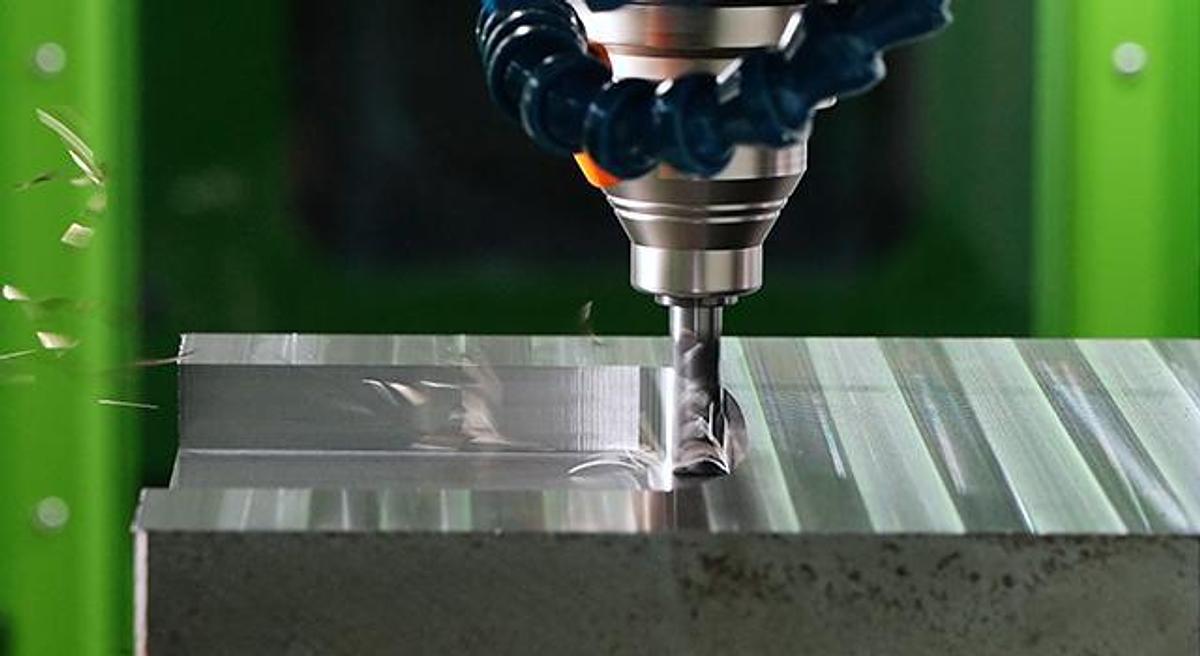

General Machining

Standard Configuration

Belt drive spindle BT40/SK40/CAT40 10000 rpm_7.5/15kW_36/72Nm (SIEMENS)

Belt drive spindle BT40/SK40/CAT40 10000 rpm_3.7/13kW_23.6/82.8Nm (FANUC)

24 pockets arm type tool changer, BT40/SK40/CAT40

Full enclosed splash guard

Telescopic covers for linear axis

Screw type chip conveyor

Spindle oil cooler

Heat exchanger for electrical cabinet

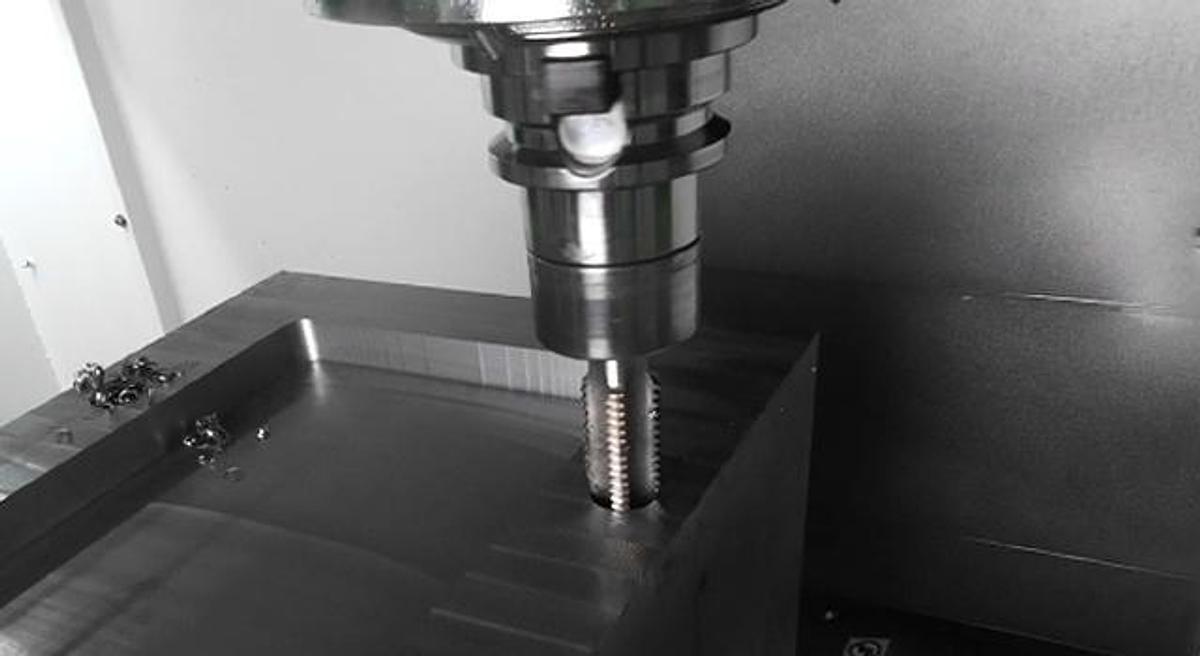

Rigid tapping

Automatic lubrication system

Air blast during cutting

LED working lamp

End of program light

Electrical handwheel (MPG)

Tool box

Leveling bolts and blocks

Coolant gun

Air gun

User manual (mechanical + electrical parts)

Ethernet, CF card and USB interface

Optional Configuration

Additional rotary 4th axis

CTS Coolant through spindle + ATS

Oil mist collector

Tool probe

Oil skimmer

Extra 200GB SSD program memory (only available on SIEMENS)

Manufacturer	PRIMINER
Condition	New
Control System	Siemens
Table Size	1,060 x 600 mm (41.73” × 23.62”)
T slot [width x distance x number]	18 × 100 × 5 mm (0.71” × 3.94” × 0.20”)
Max. load	800 kg (1,764 lbs)
X/Y/Z travel	900 / 600 / 600 mm (35.43” / 23.62” / 23.62”)
Spindle Taper	BT40 / SK40 / CAT40
Spindle motor power	7.5 / 15 kW
Spindle motor torque	36 / 72 Nm
Spindle speed	10,000 rpm
Spindle nose to table	150 ~ 750 mm (5.91” ~ 29.53”)
