U800-5X
Description

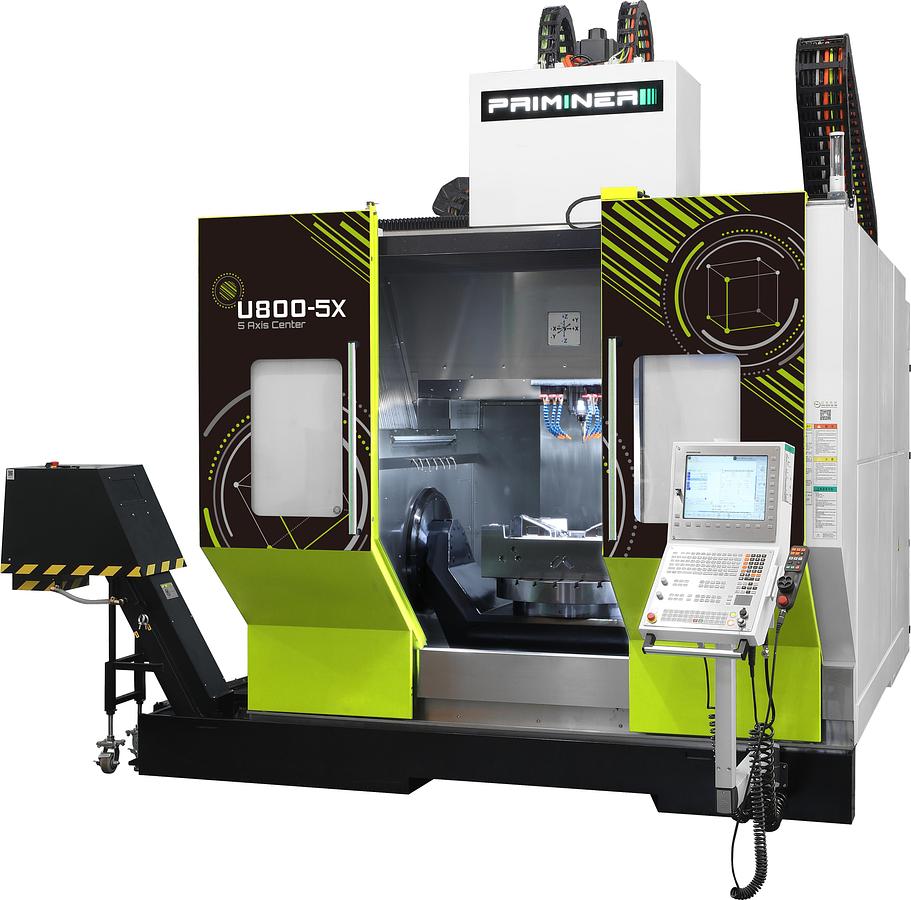

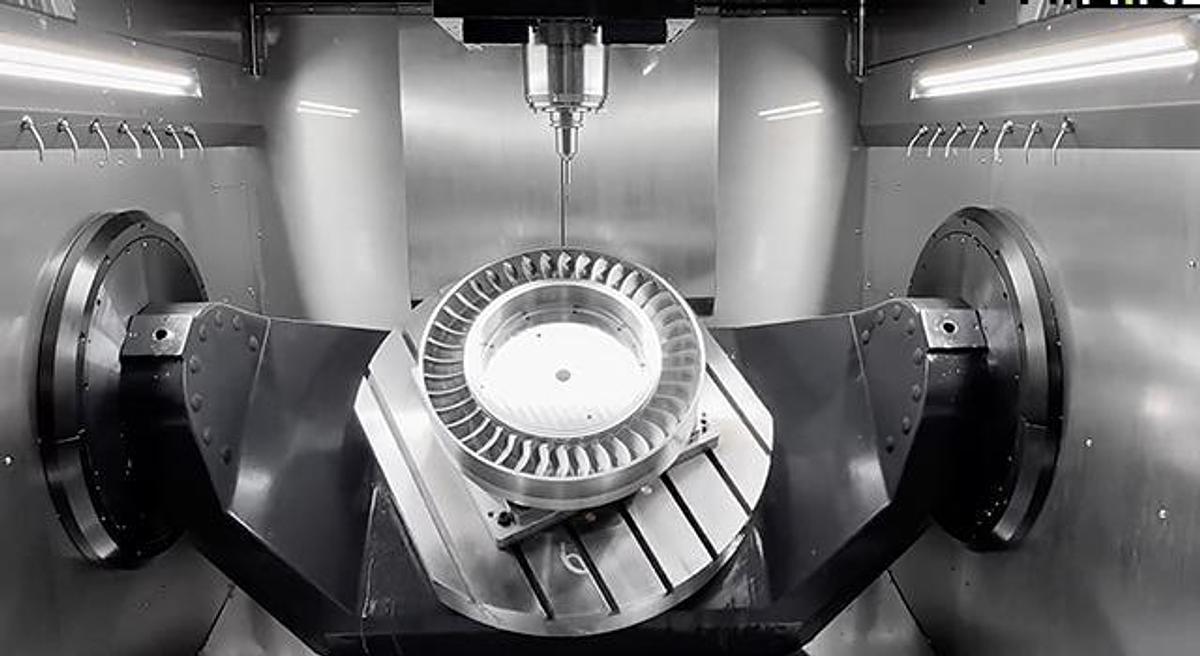

U800-5X
One-piece high-quality casting bed
Gantry-type structure design
A/C axes support a maximum load
1,200kg(U800) / 800kg(U800T)
The A/C axis adopts DD motor direct drive technology
A axis is driven by dual DD motors
Germany pneumatic brakes
A-axis braking torque 9,360Nm
Maximum travel up to 1,000mm
Aircraft
Hydropower
Automotive Mould
Standard Configuration
Built-in spindle HSK A63 16000rpm_30/36kW_100/120Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK T63 15000rpm_30/36kW_100/120Nm (SIEMENS / HEIDENHAIN) (U800T)
Direct drive rotary table
A axis with single direct drive
Y axis with dual direct drive
Sealed linear scales on X/Y/Z axis
Rotary encoder on A/C axes
Full enclosed splash guard
60 pockets chain type tool changer,HSK A63
Chain type chip conveyor
High precision spindle water cooler
Coolant system
Air blast during cutting
Air-condition electrical cabinet
Rigid tapping
Centralized automatic grease lubrication system
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User Manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Built-in spindle HSK A63 20000rpm_30/36kW_72/86Nm (SIEMENS / HEIDENHAIN)
Built-in Spindle HSK A100 10000rpm_54/65kW_300/360Nm (SIEMENS / HEIDENHAIN)
90 pockets tool changer, HSK A63 / HSK T63 (U800T)
48 pockets tool changer, HSK A100 / HSK T100 (U800T)
Oil cooling through ballscrew
CTS coolant through spindle + ATS
Minimum quantity lubrication system
Coolant cooling system
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Dynamic Collision Monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
Gantry-type Machining Center
1,200kg(U800) / 800kg(U800T)
A axis is driven by dual DD motors
A-axis braking torque 9,360Nm
Coming Soon
Aircraft
Hydropower
Automotive Mould
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Max. workpiece diameter | Φ1,000 x 700 mm (Ø39.37” × 27.56”) |
| Table Size | Φ800 x 700 mm (Ø31.50” × 27.56”) |
| T slot [width x distance x number] | 14 × 100 × 7 mm (0.55” × 3.94” × 0.28”) |
| Max. load | 1,200 kg (2,646 lbs) |
| X/Y/Z travel | 1,000 / 1,100 / 600 mm (39.37” / 43.31” / 23.62”) |
| A/C Travel | +30° ~ -110° / ±360° |
| Spindle taper | HSK A63 |
| Spindle motor power | 30 / 36 kW |
| Spindle motor torque | 100 / 120 Nm |
| Spindle speed | 16,000 rpm |
| Spindle nose to table | 180 ~ 780 mm (7.09” ~ 30.71”) |
| Rapid feed X/Y/Z | 48/48/24 m/min [opt 24/24/24 m/min] |
| Rotation speed A/C | 100 / 100 rpm |
| CNC control | Siemens / Heidenhain |
