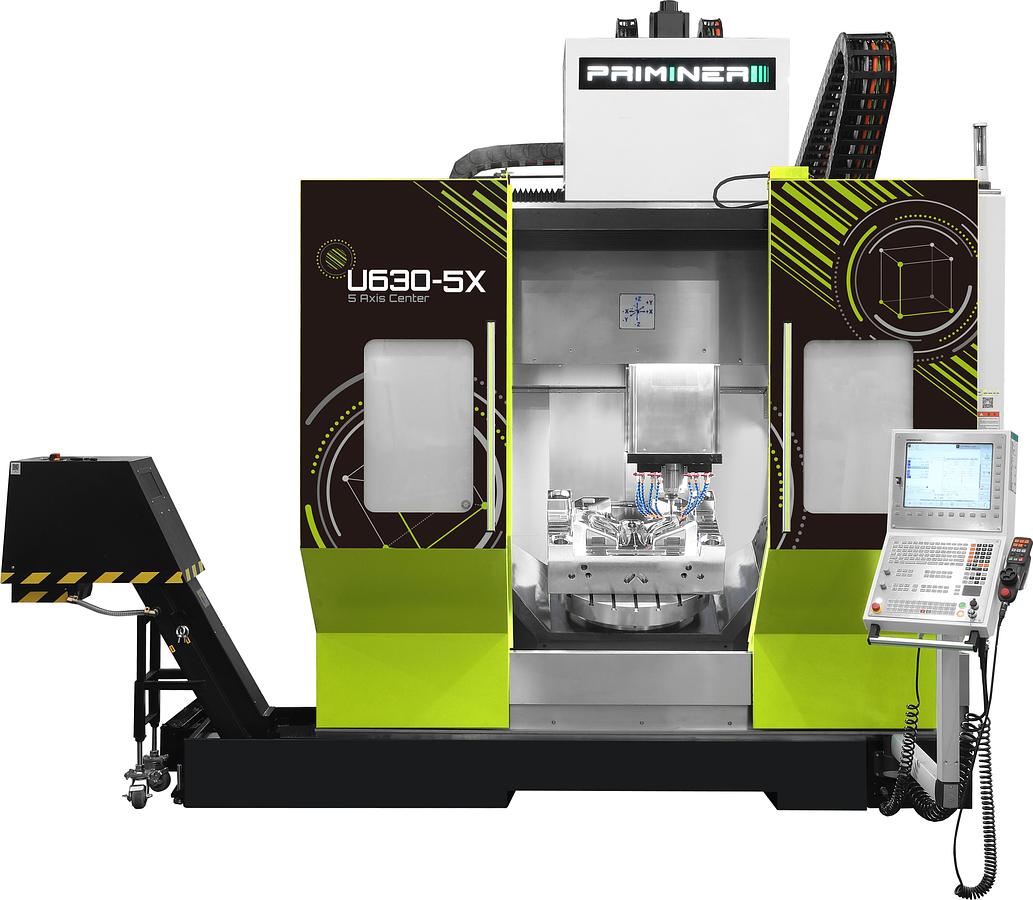

U630-5X
Description

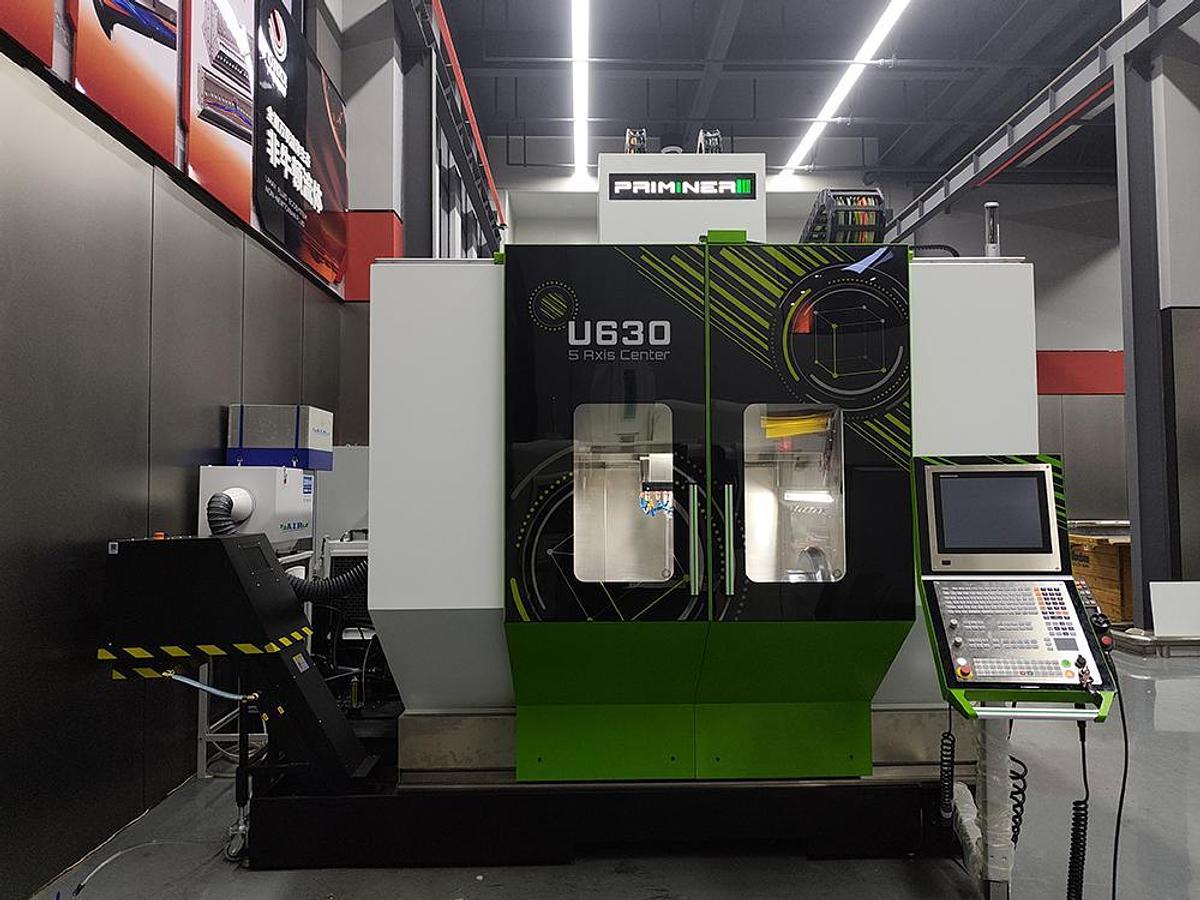

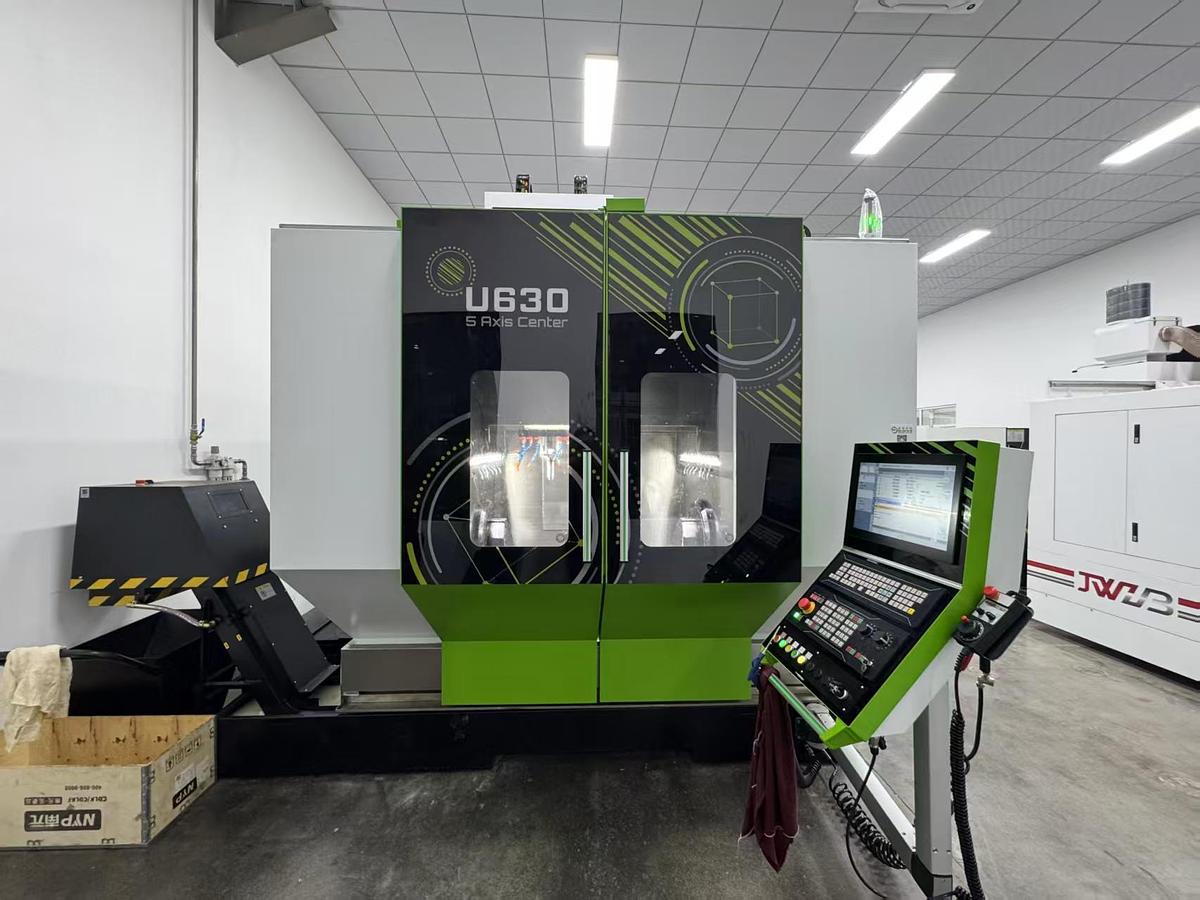

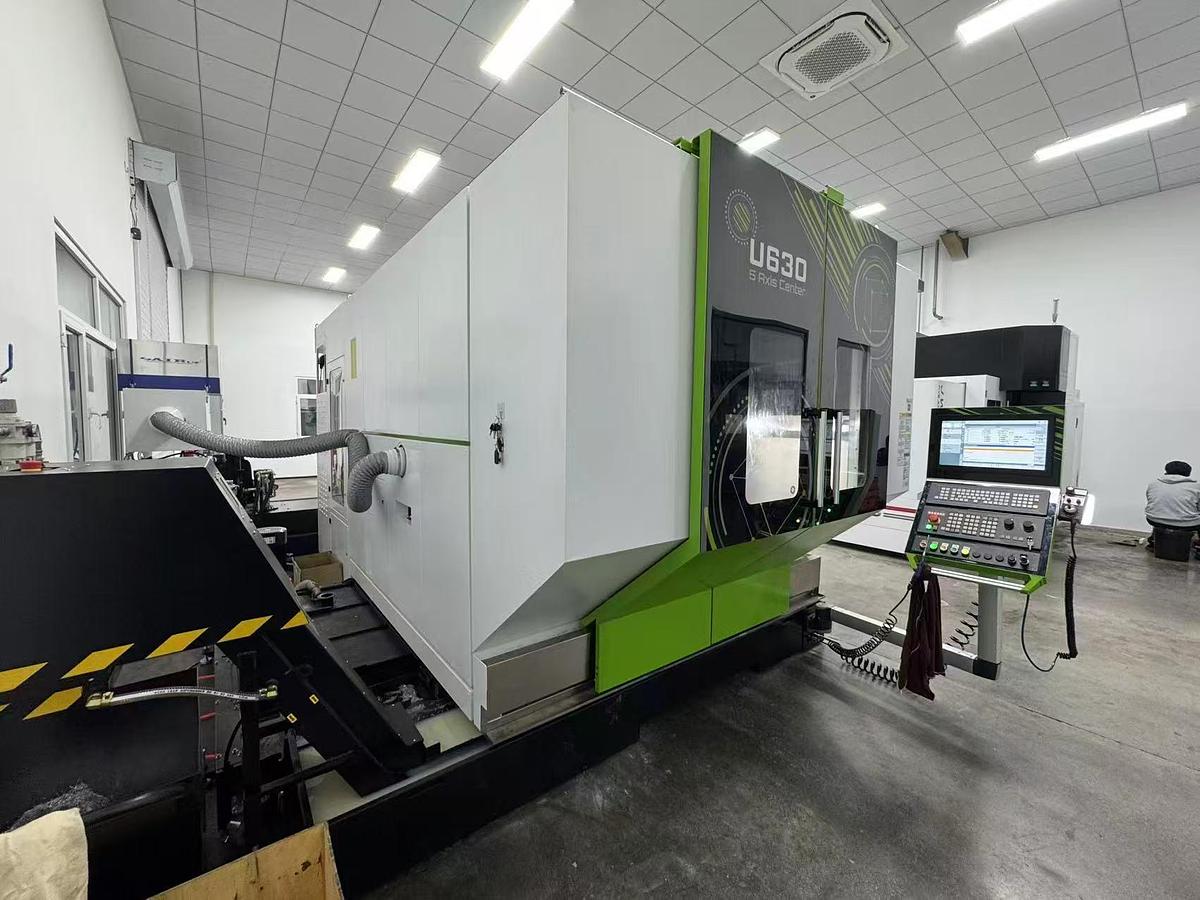

U630-5X
One-piece high-quality casting bed

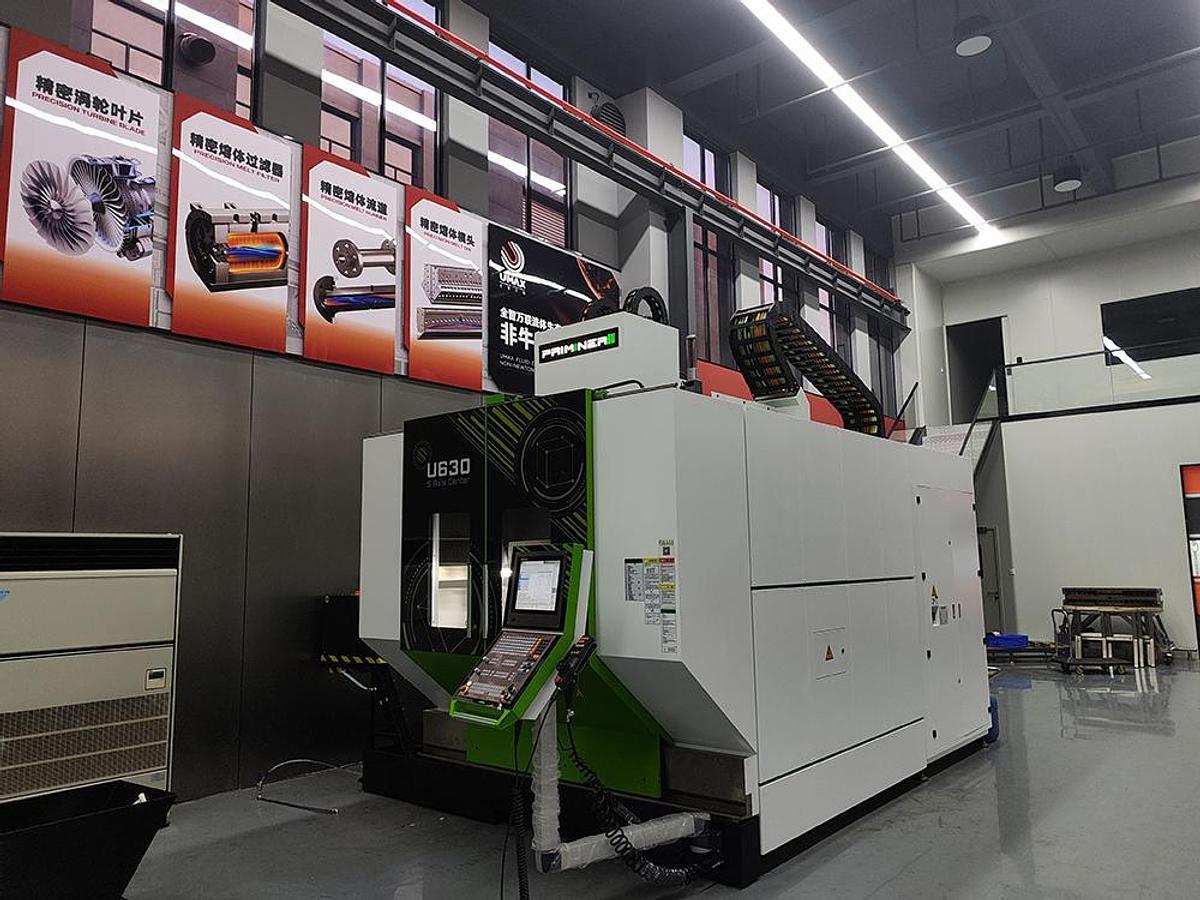

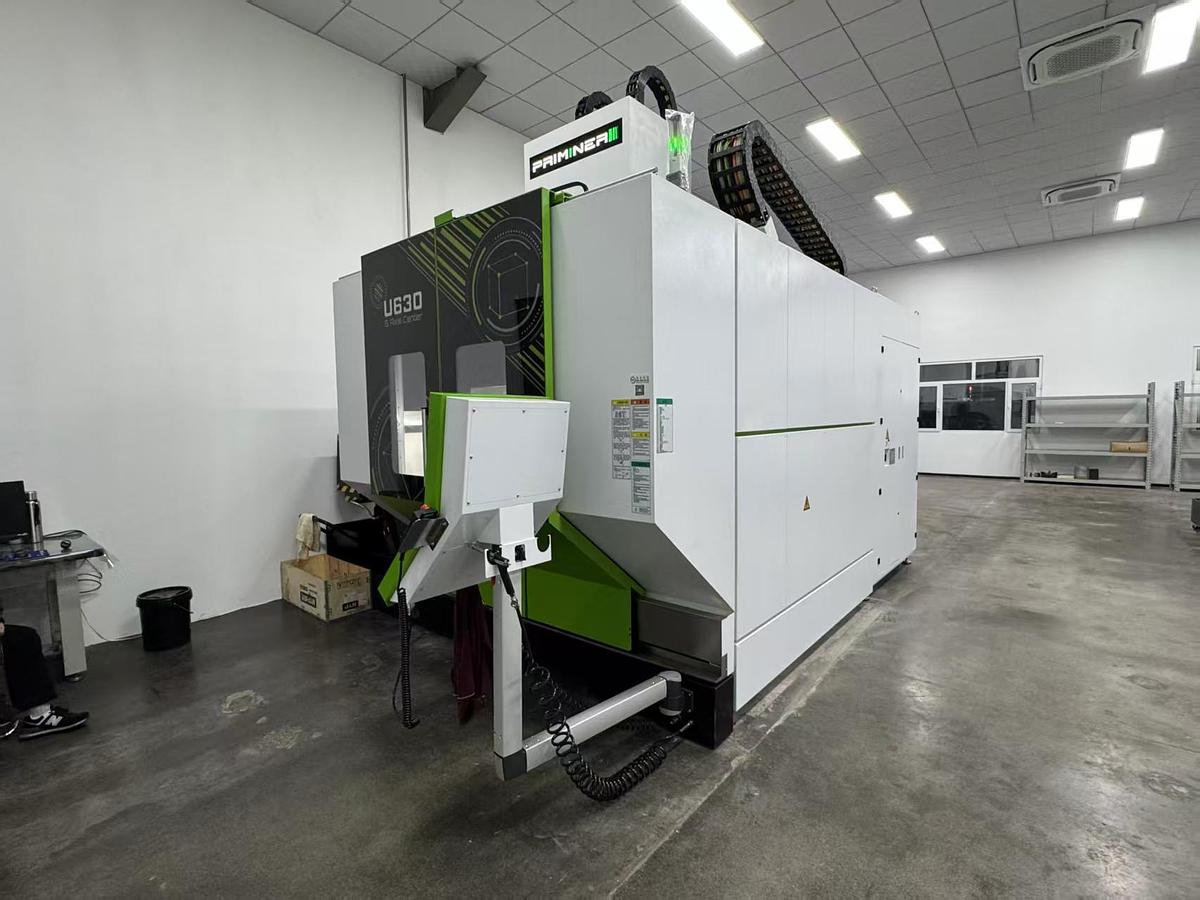

Gantry-type structure design
A/C axes support a maximum load
800kg(U630) / 500kg(U630T)
The A/C axes adopts DD motor direct drive technology
A axis is driven by dual DD motors
Germany high-torque pneumatic brakes
Maximum travel up to 850mm

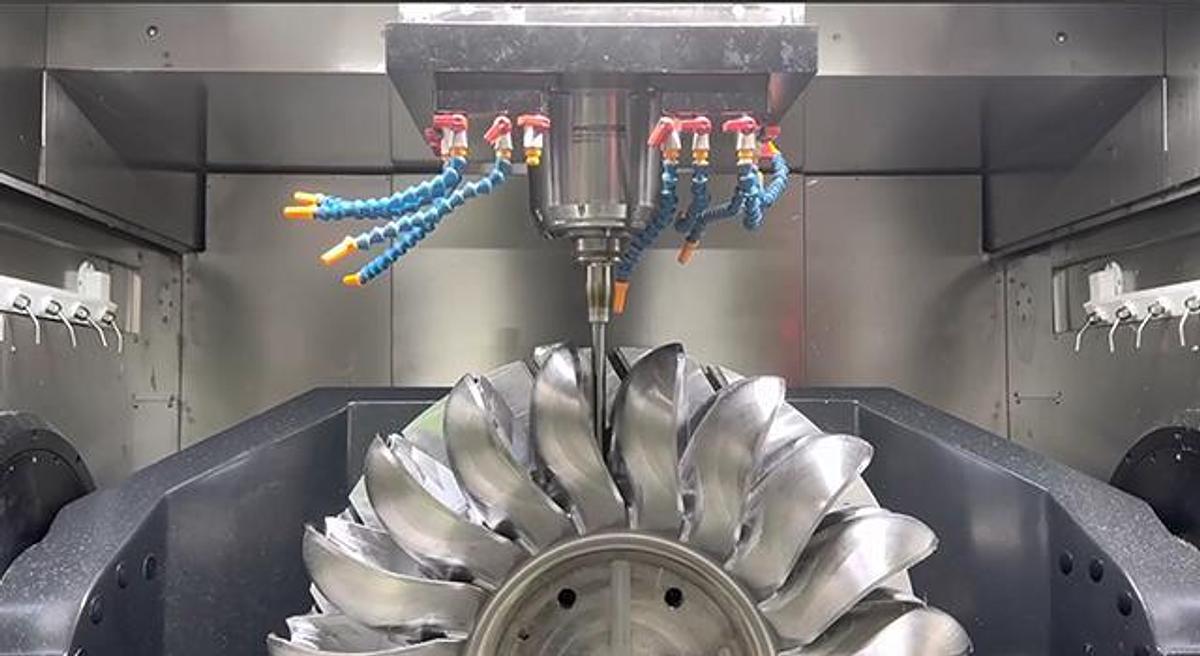

Hydropower

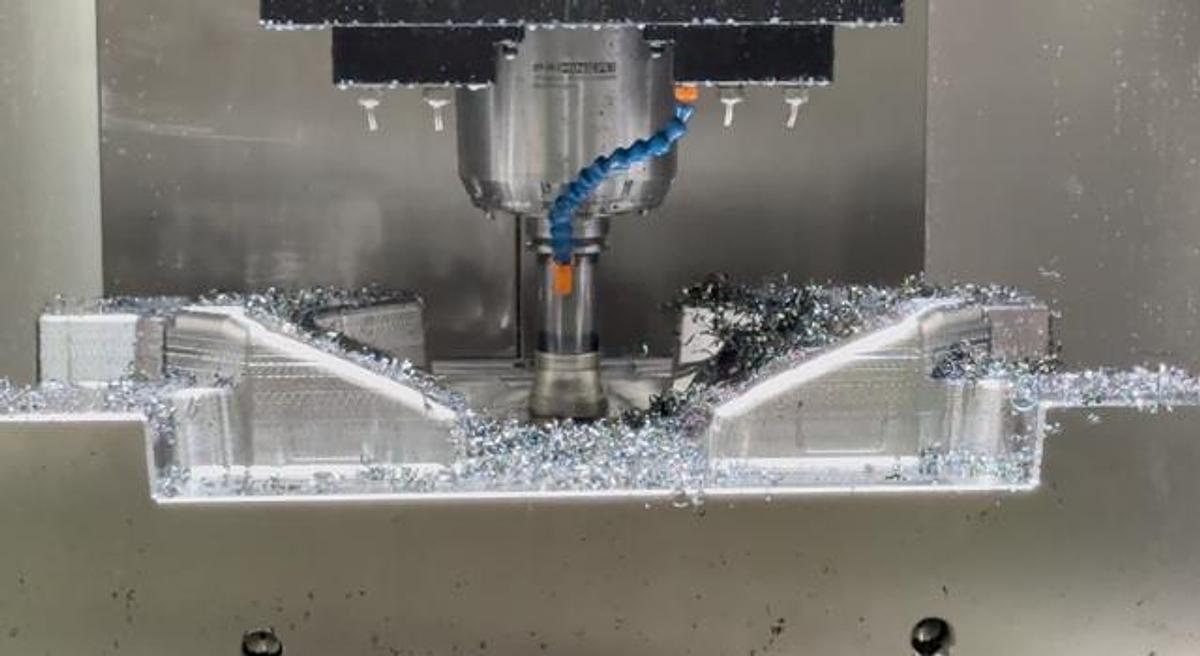

Automotive Mould
Standard Configuration
Built-in spindle HSK A63 16000rpm_30/36kW_100/120Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK T63 15000rpm_30/36kW_100/120Nm (SIEMENS / HEIDENHAIN) [U630T]
Direct drive rotary table
A axis with dual direct drive
Y axis with dual direct drive
Sealed linear scales on X/Y/Z axes
Rotary encoder on A/C axes
Full enclosed splash guard
60 pockets chain type tool changer, HSK A63

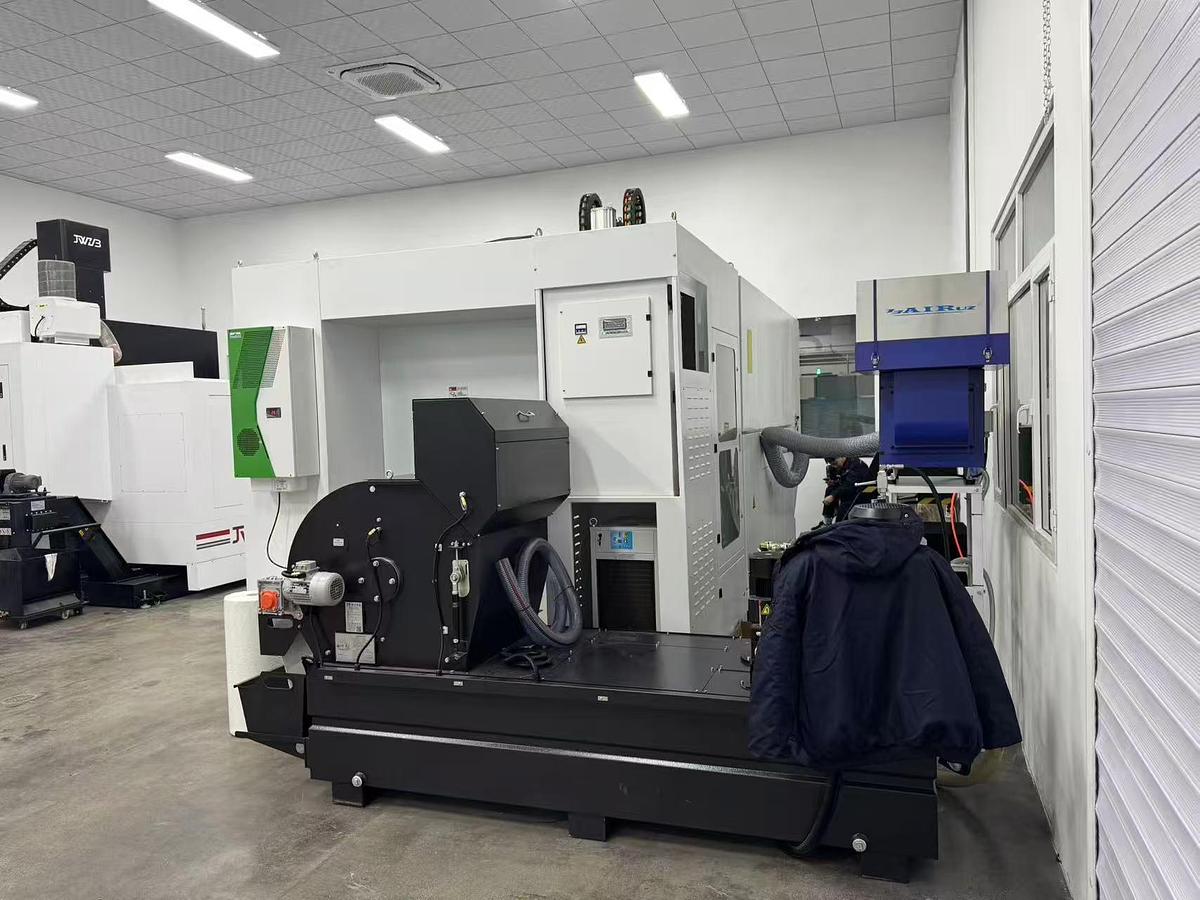

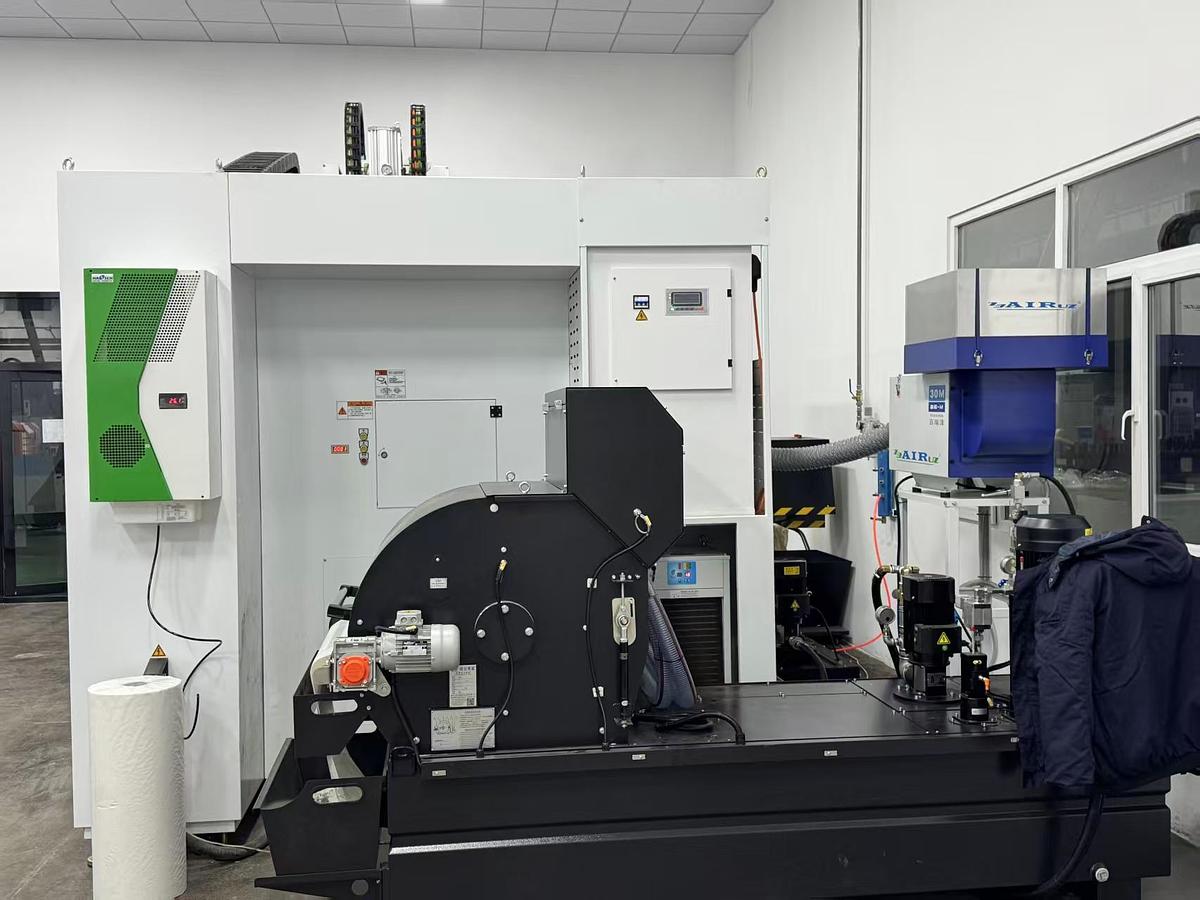

Chain type chip conveyor
High precision spindle water cooler

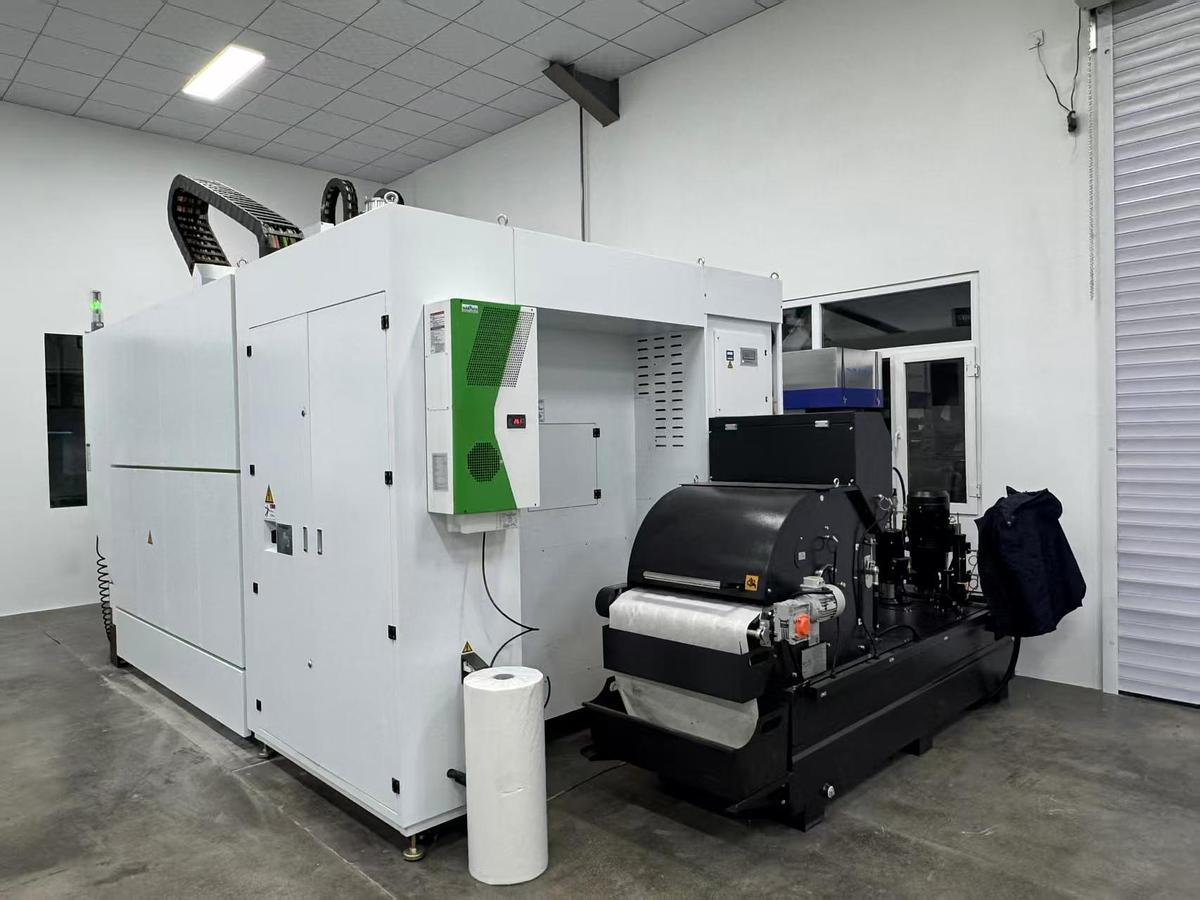

Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Centralized automatic grease lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Built-in spindle HSK A63 12,000rpm_37/44kW_130/156Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 20000rpm_25/40kW_87/135Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 20000rpm_30/36kW_72/86Nm (SIEMENS / HEIDENHAIN)
90 pockets tool changer, HSK A63 / HSK T63 (U630T)
CTS coolant through spindle + ATS
Oil cooling through ballscrew
Workpiece probe
Tool probe
Oil mist collector
Dynamic collision Mmonitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
Gantry-type Machining Center
800kg(U630) / 500kg(U630T)
A axis is driven by dual DD motors
Coming Soon
Hydropower
Automotive Mould
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Max. workpiece diameter | Φ850 x 550 mm (Ø33.46” × 21.65”) |
| Table Size | Φ630 x 500 mm (Ø24.80” × 19.69”) |
| T slot [width x distance x number] | 14 × 100 × 5 mm (0.55” × 3.94” × 0.20”) |
| Max. load | 800 kg (1,764 lbs) |
| X/Y/Z travel | 850 / 875 / 550 mm (33.46” / 34.45” / 21.65”) |
| A/C Travel | +30° ~ -110° / ±360° |
| Spindle taper | HSK A63 |
| Spindle motor power | 30 / 36 kW |
| Spindle motor torque | 100 / 120 Nm |
| Spindle speed | 16,000 rpm |
| Spindle nose to table | 160 ~ 710 mm (6.30” ~ 27.95”) |
| Rapid feed X/Y/Z | 60/60/36 m/min |
| Rotation speed A/C | 100 / 100 rpm |
| CNC control | Siemens / Heidenhain |
