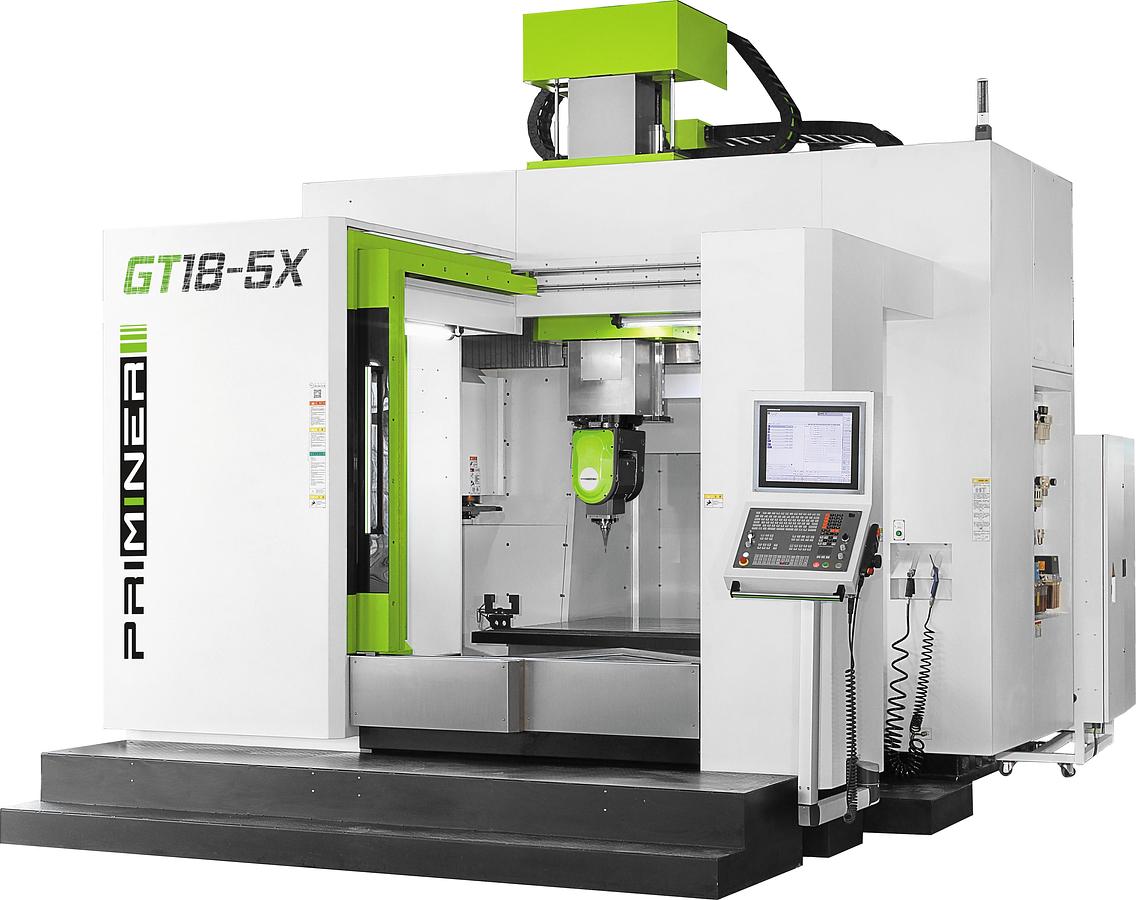

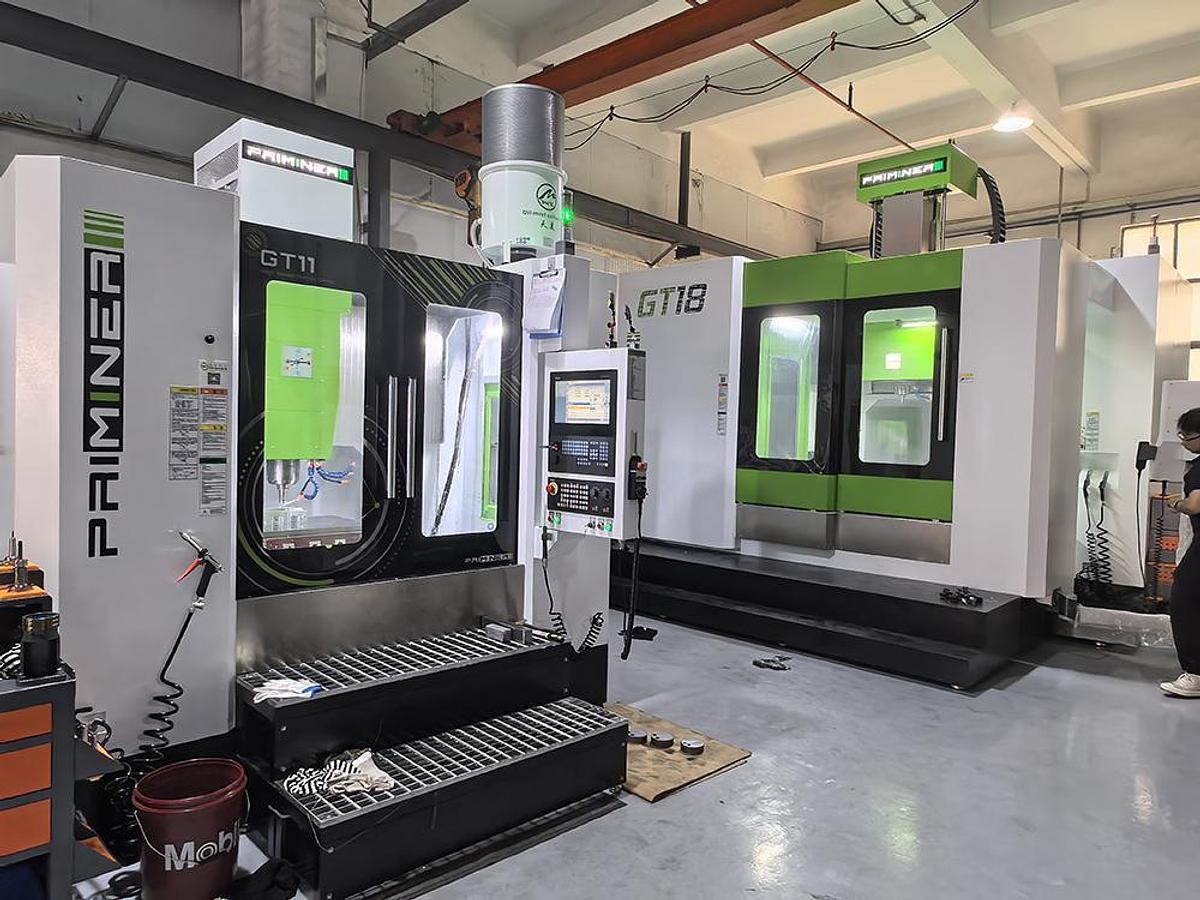

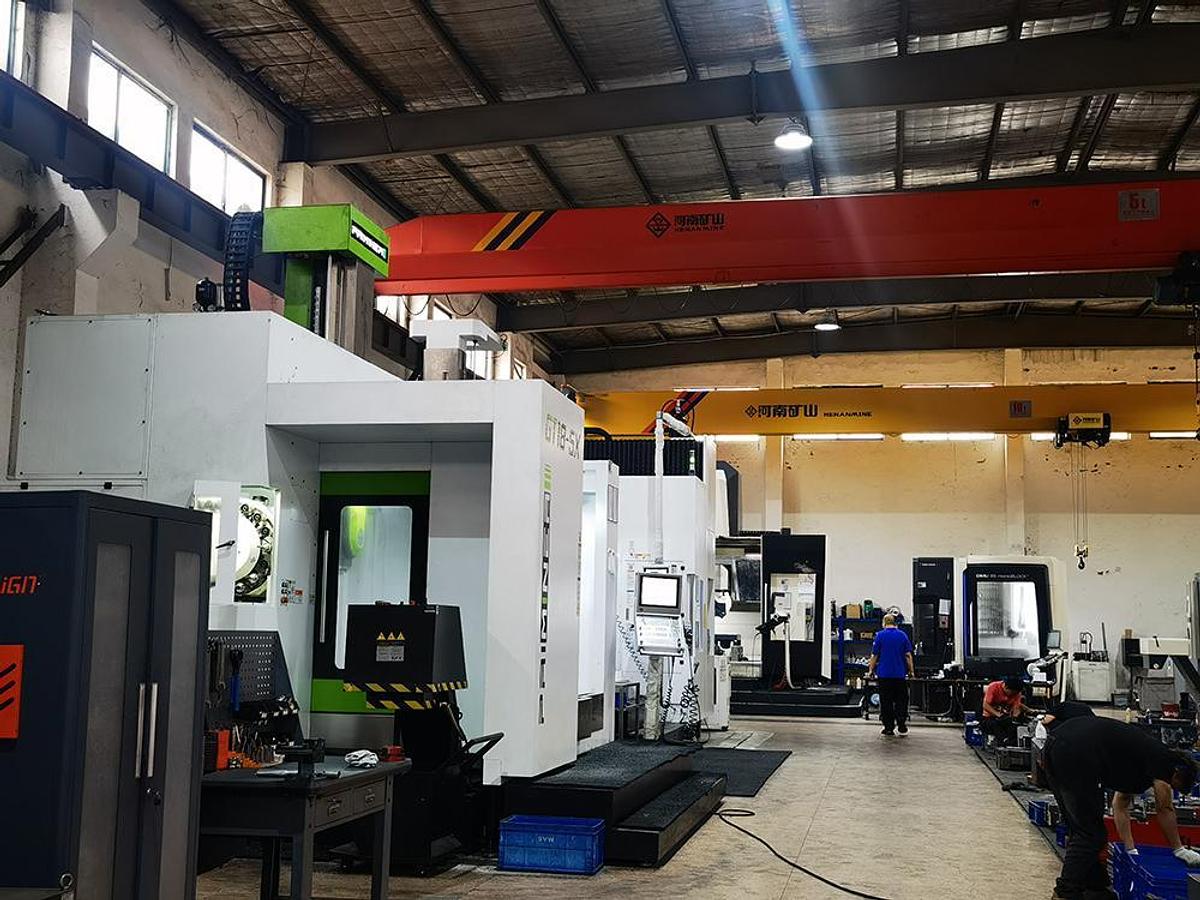

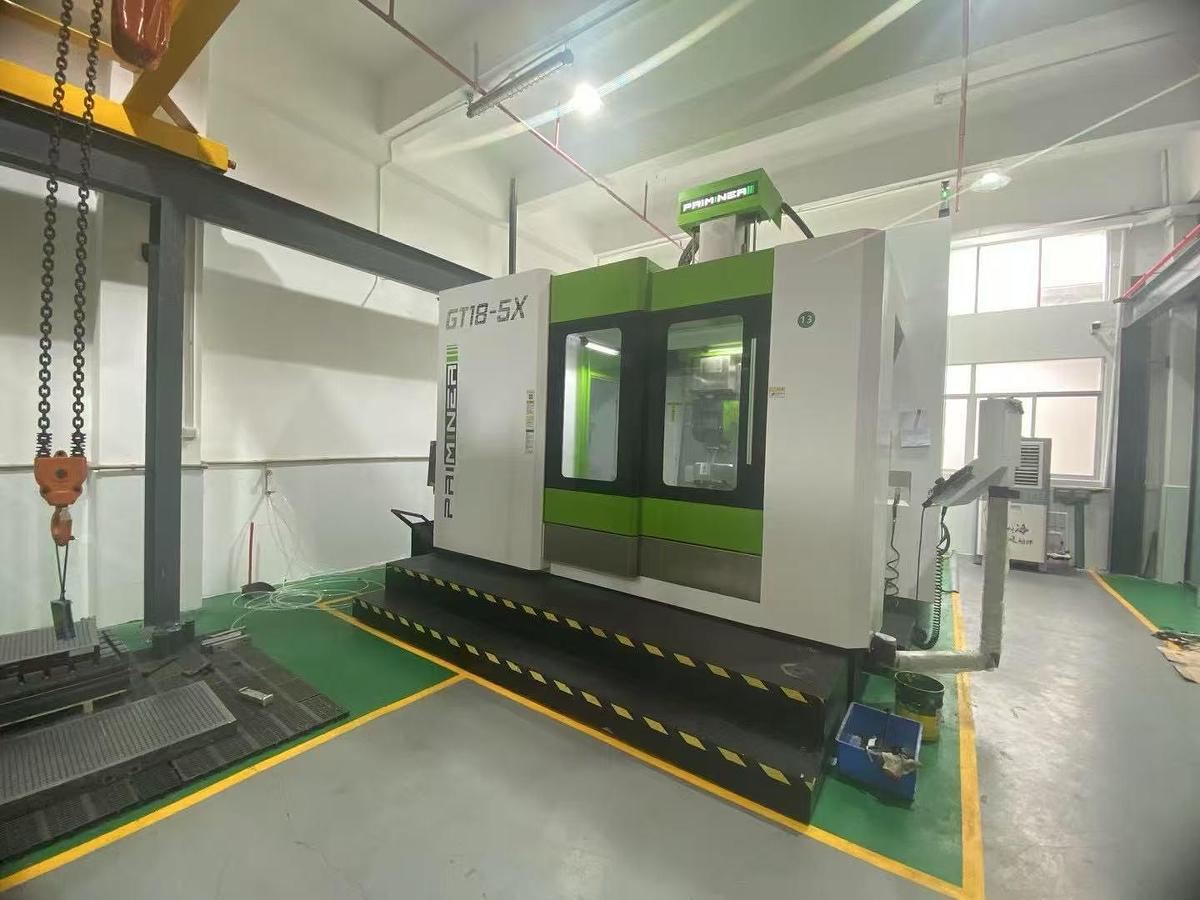

GT18-5X
Description

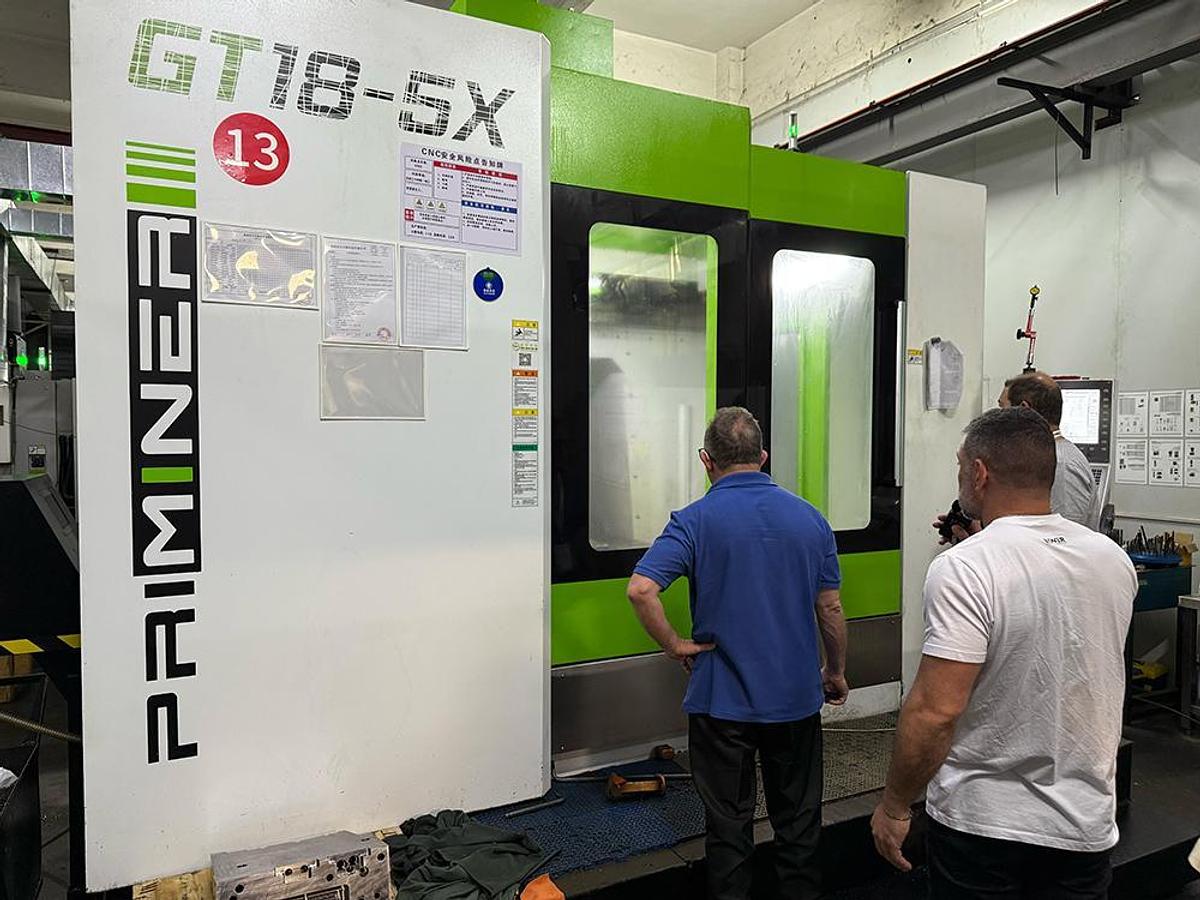

GT18-5X

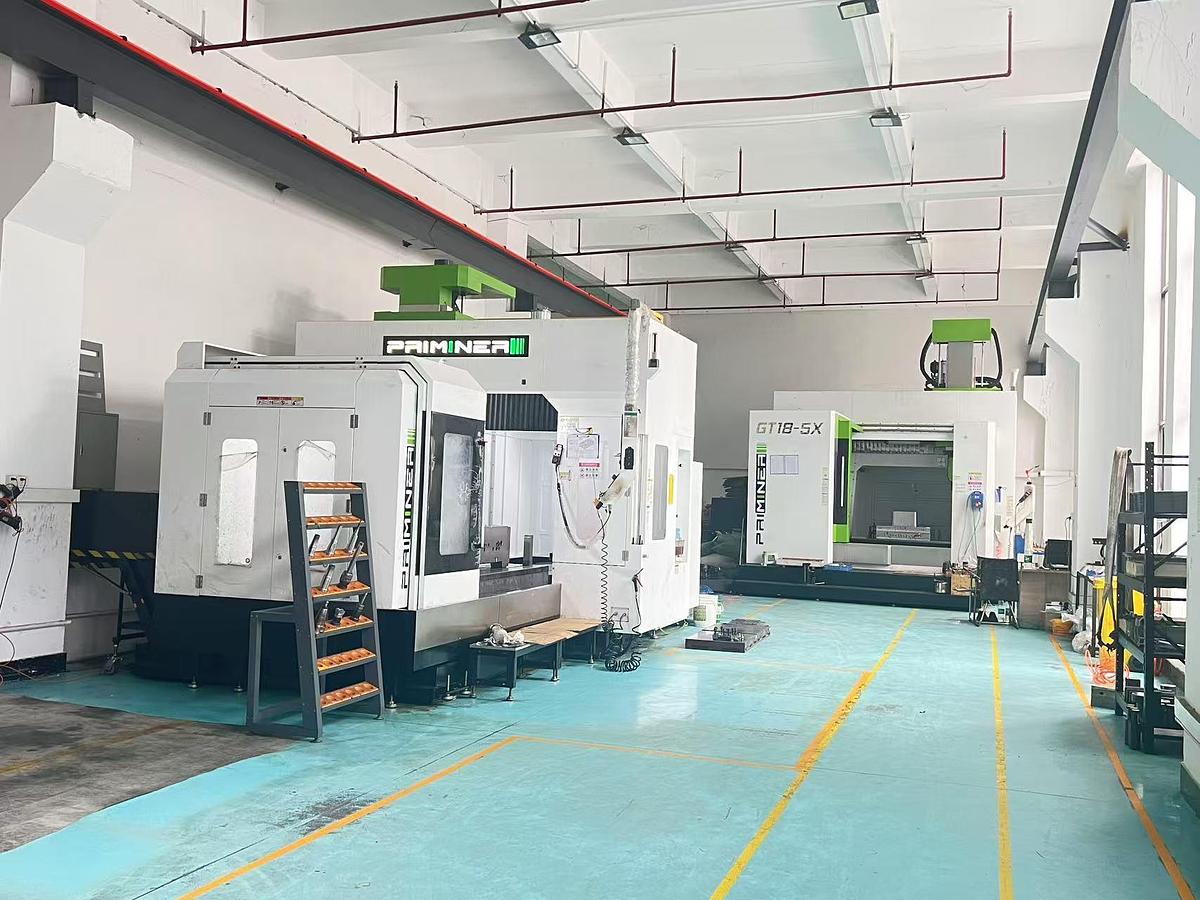

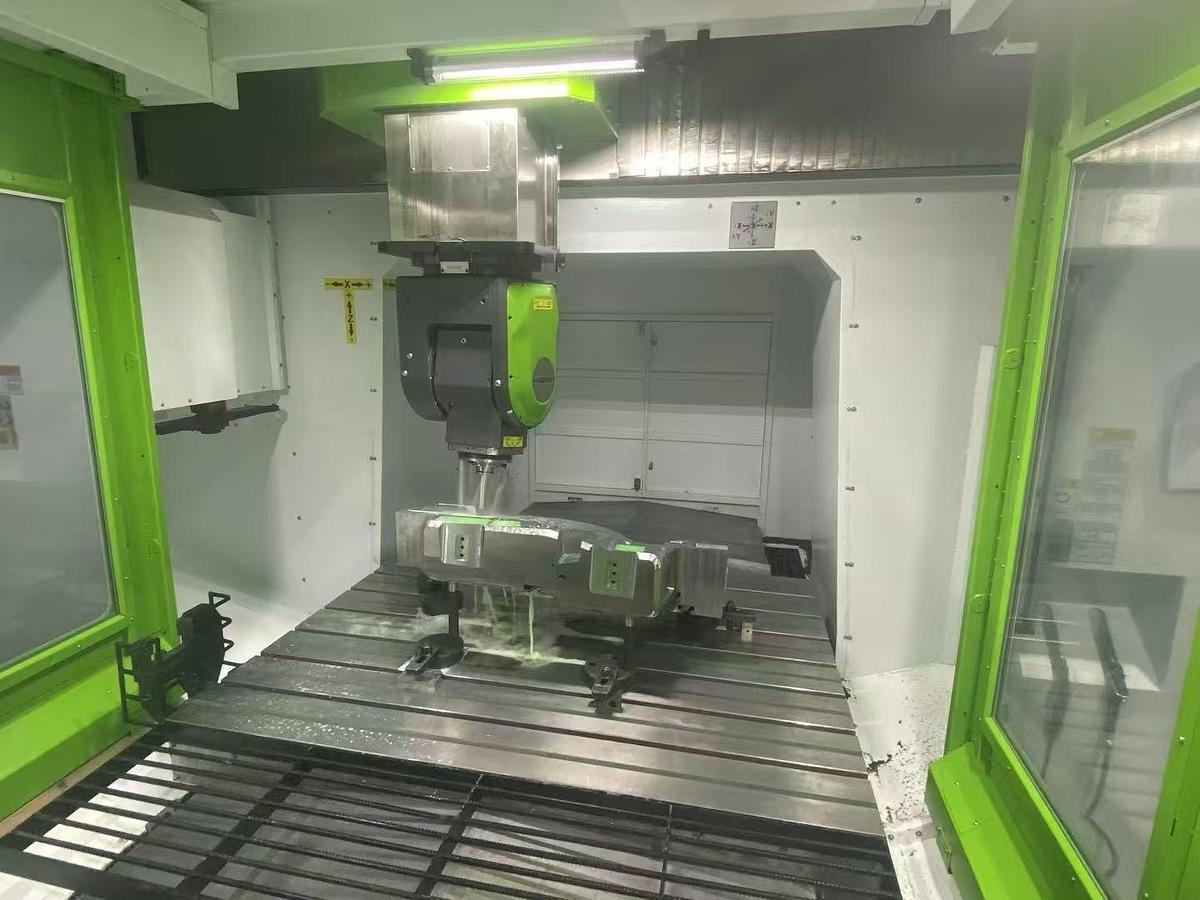

Gantry-type structural design
The base is make of one-piece cast-iron
Dual drive on Y axis to ensure the best dynamic performance
The worktable adopts a dual ball screw drive structure and is supported by three high-rigidity roller guideways

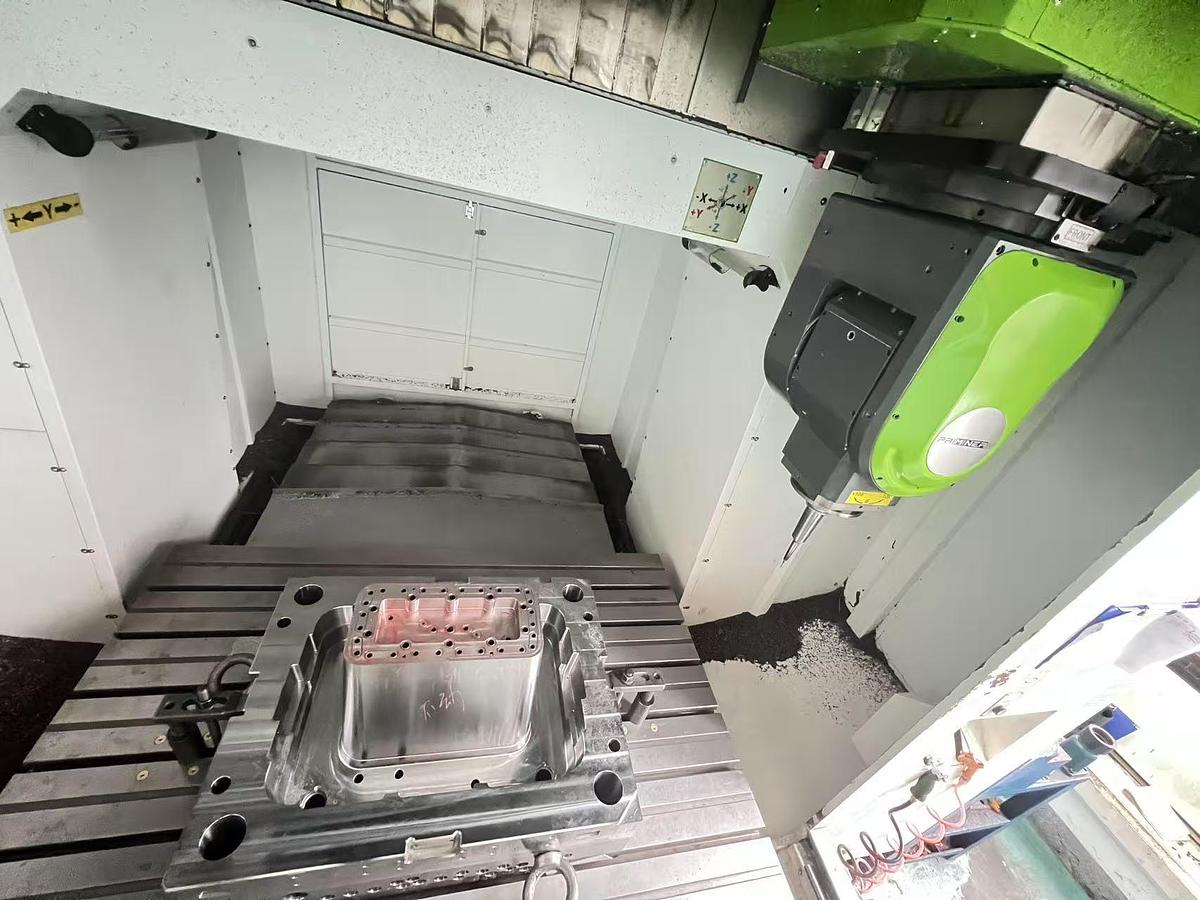

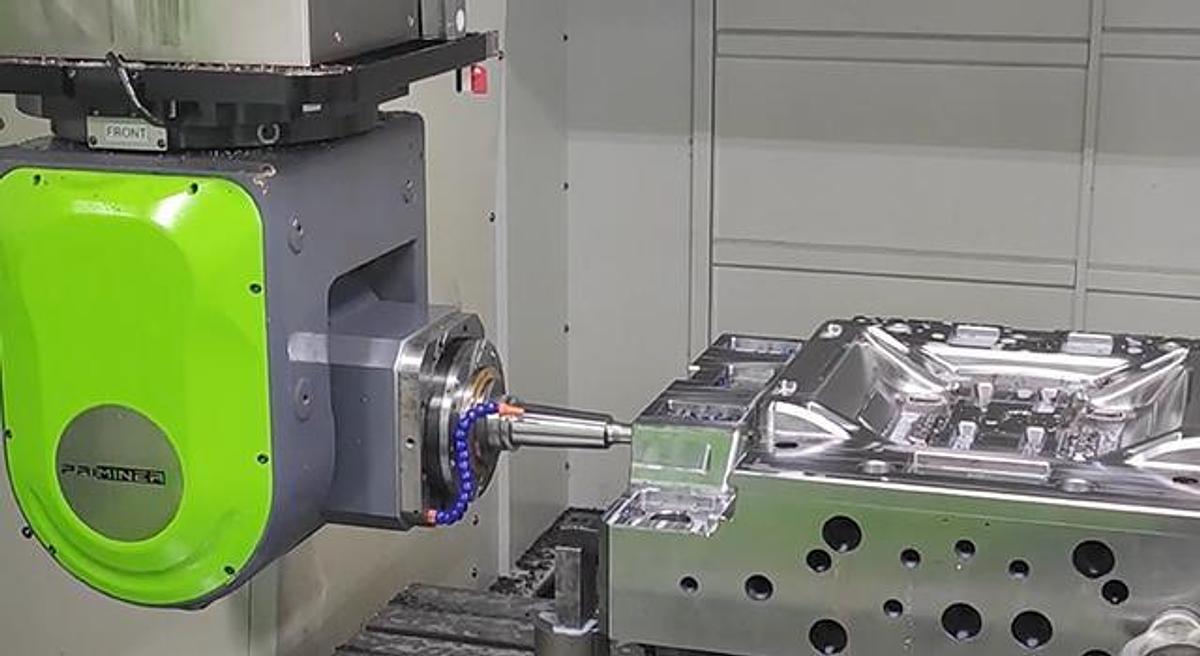

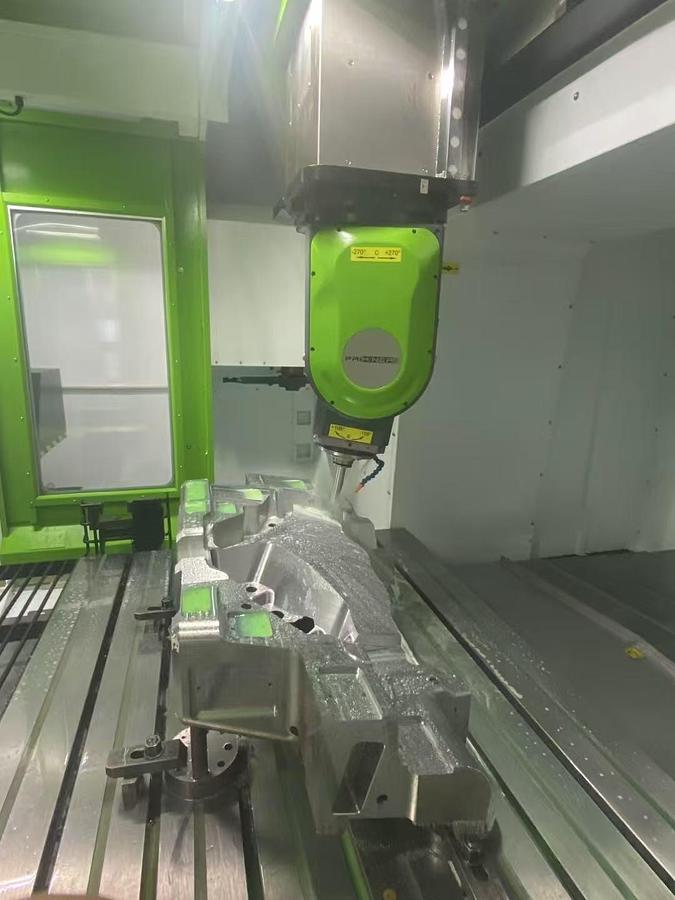

DD drive double arm head

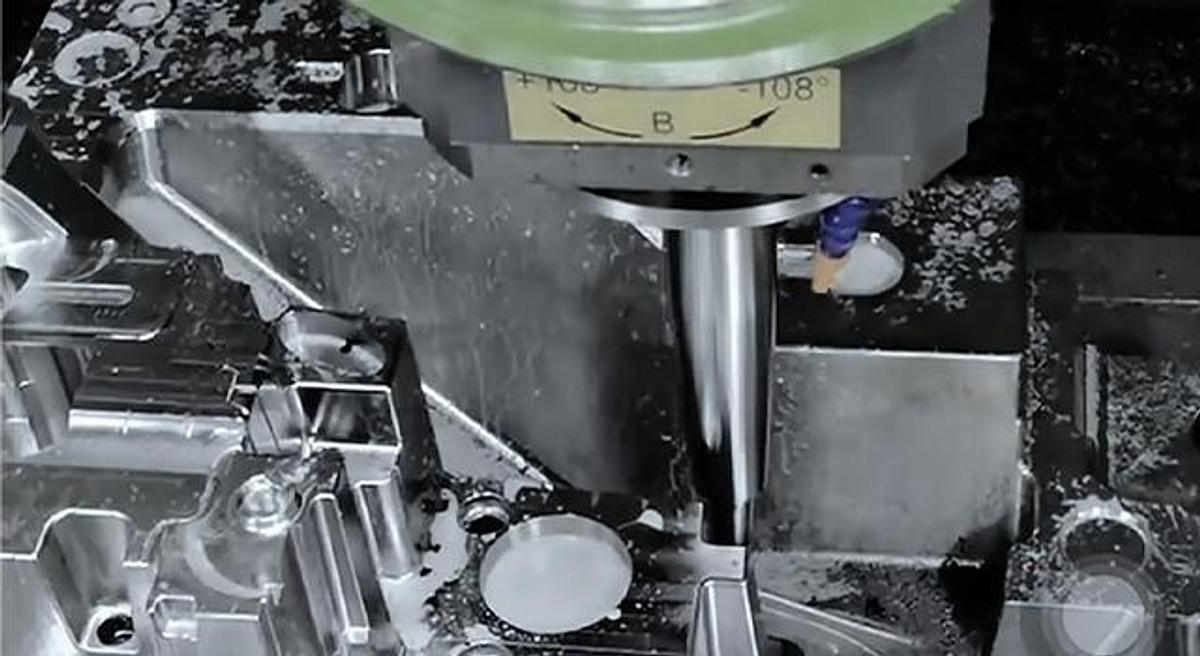

B/C axes adopts direct drive [DD] motor technology

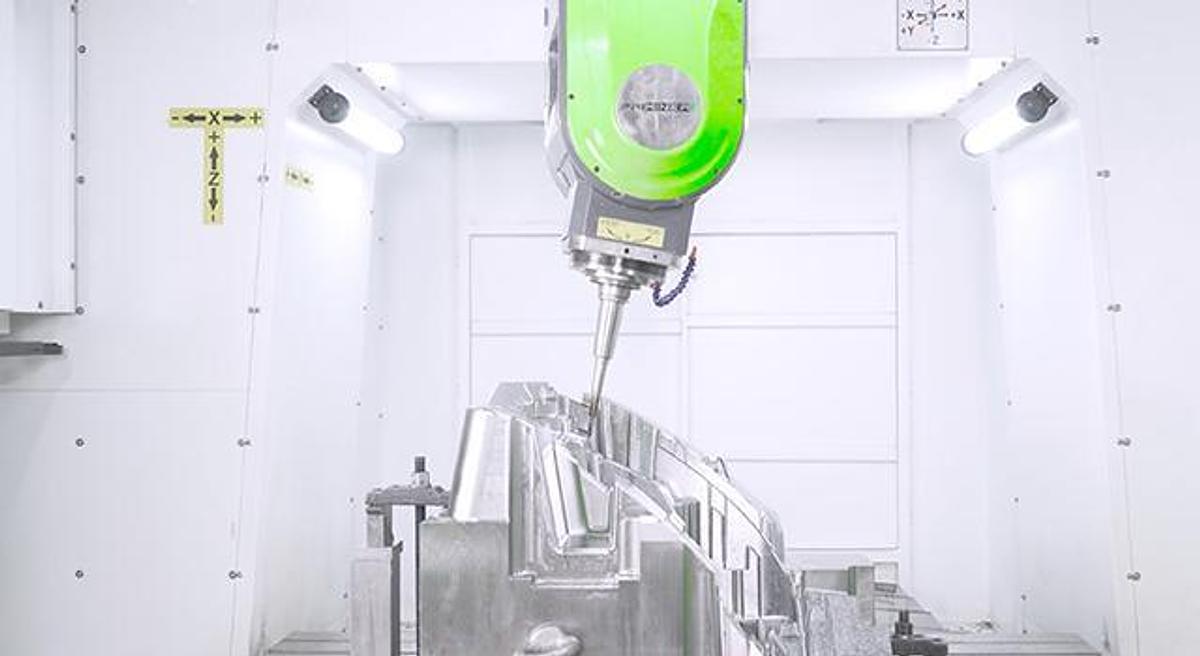

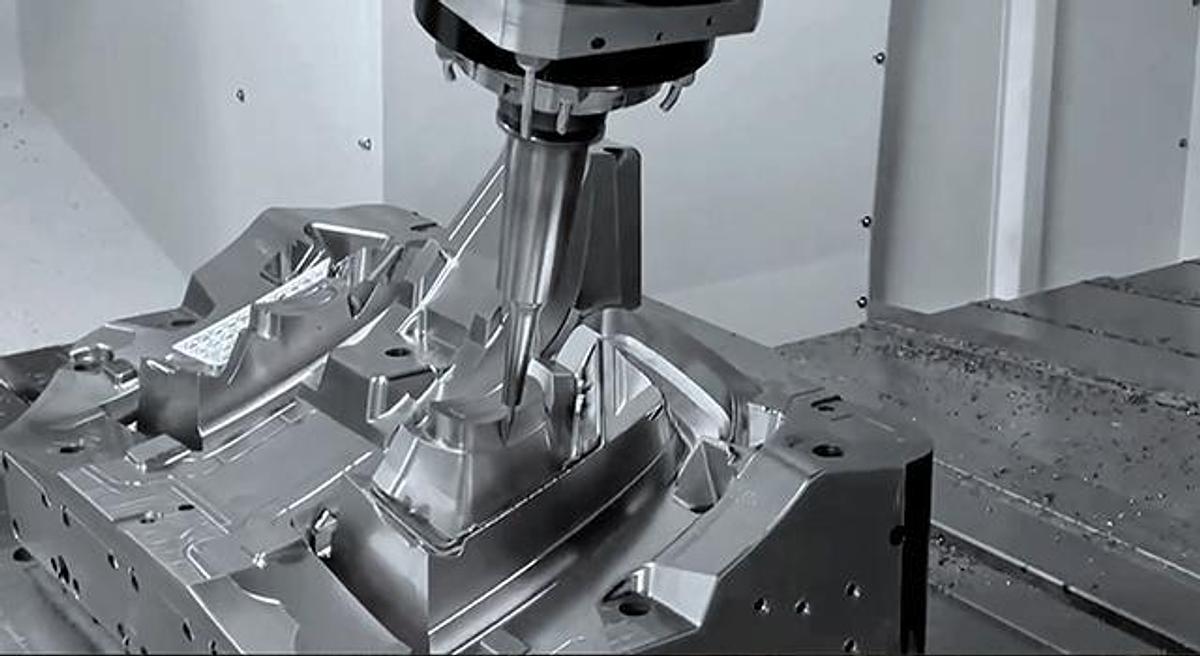

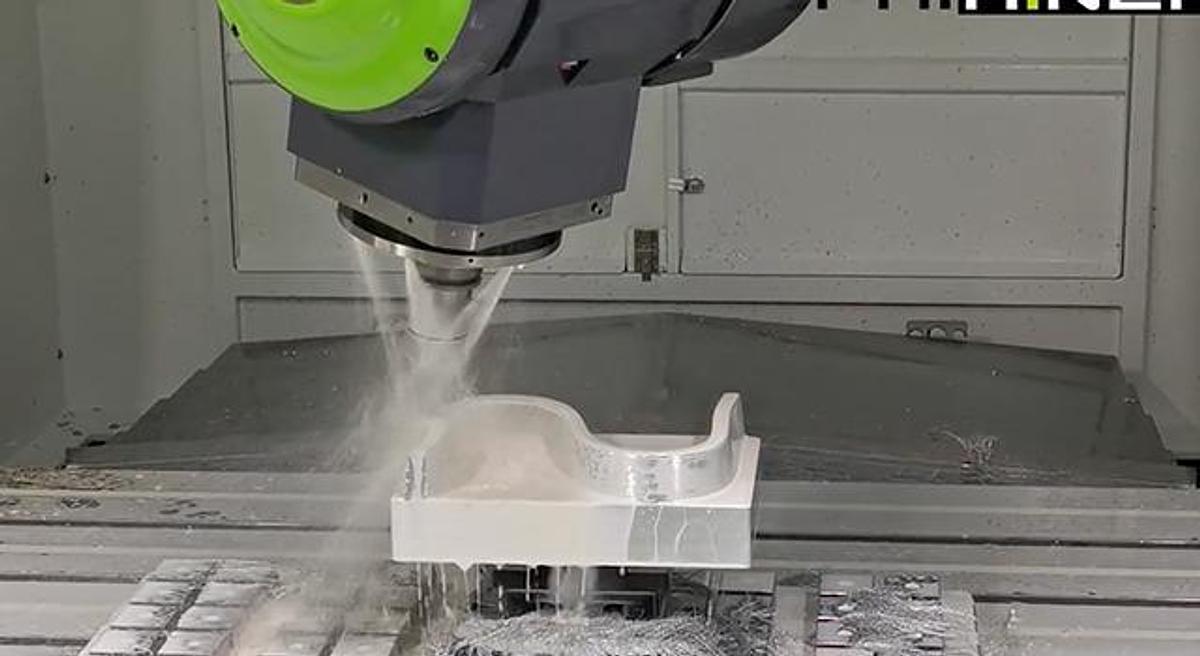

Automotive Mould

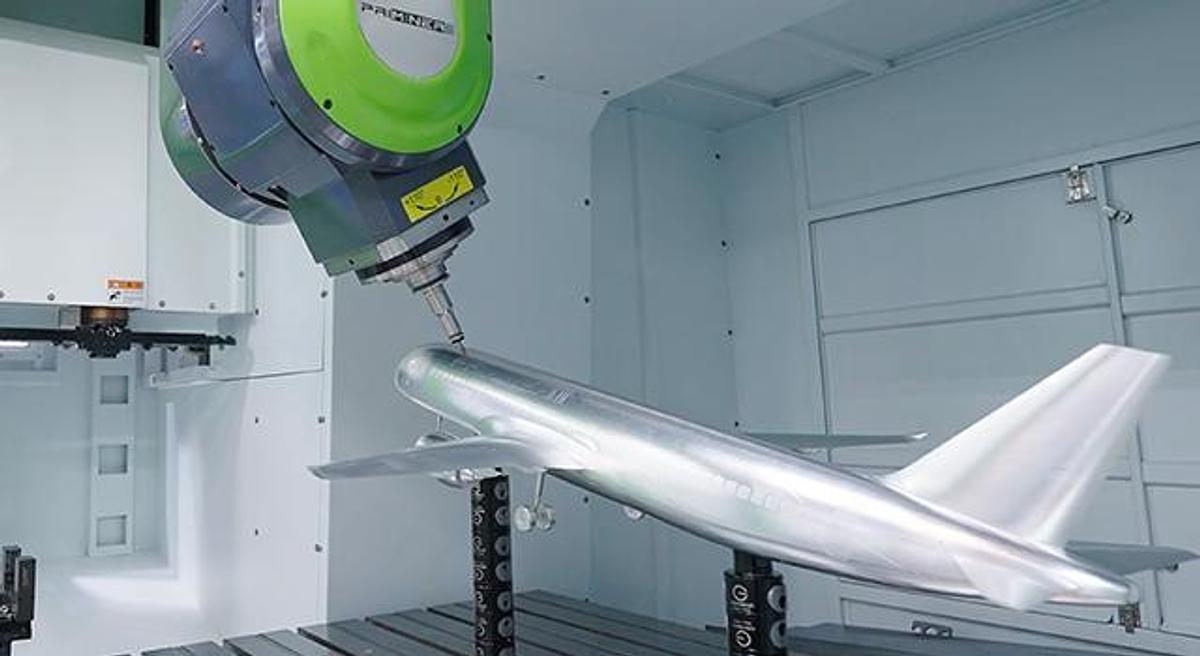

General Machining

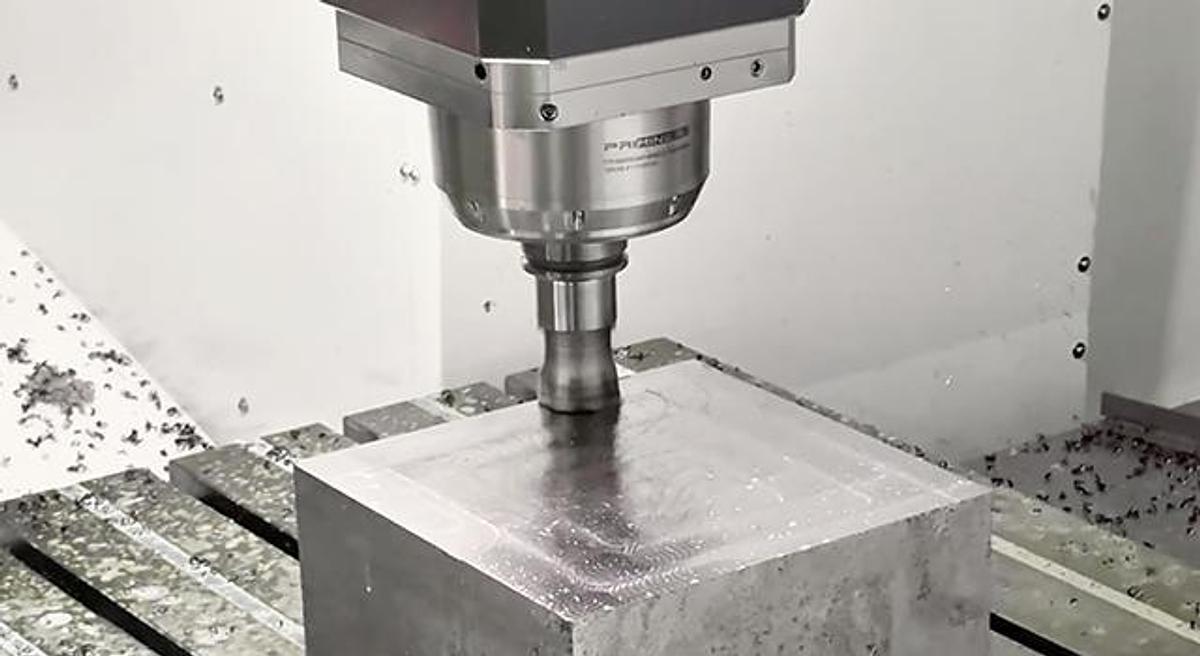

Standard Cutting

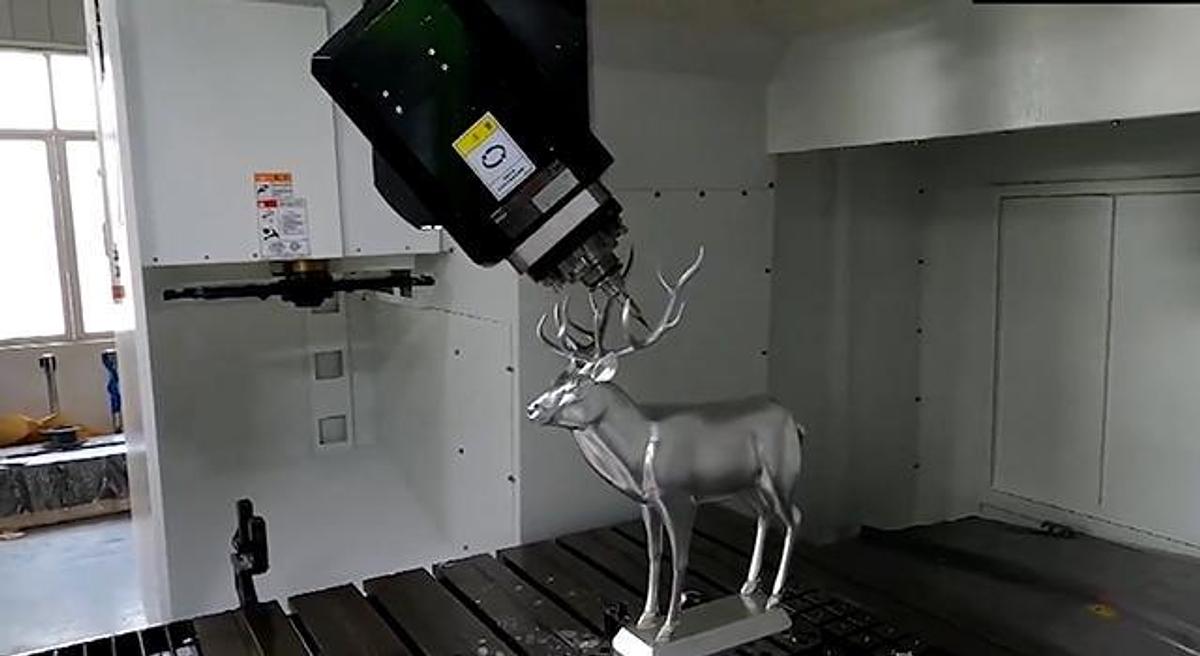

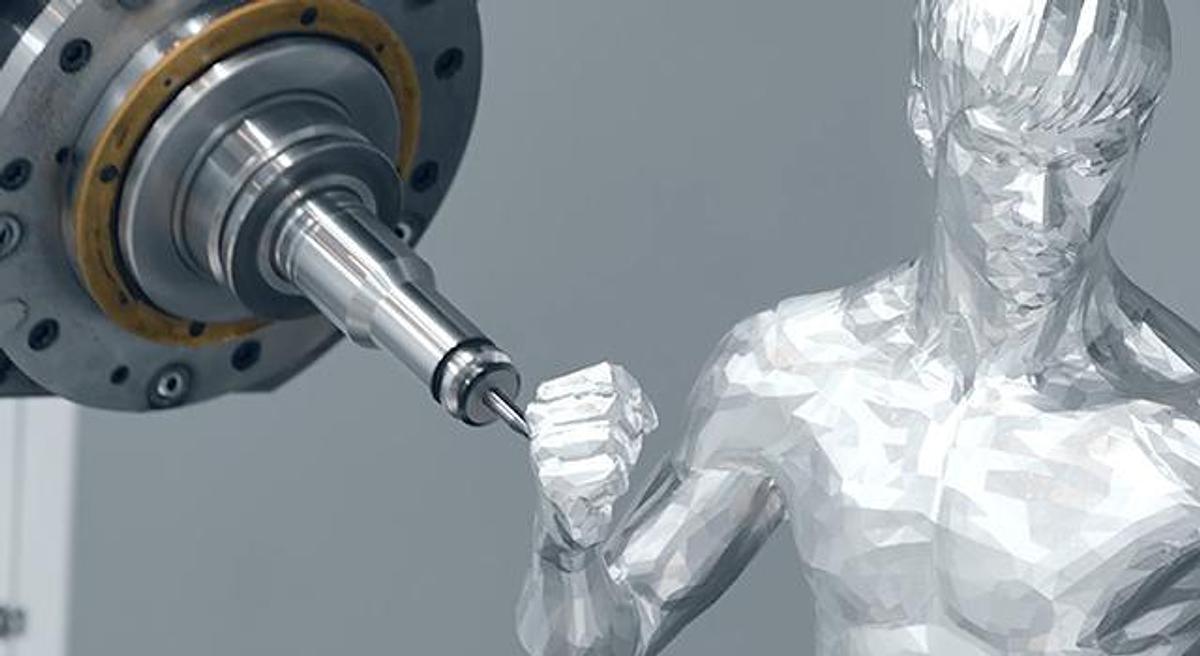

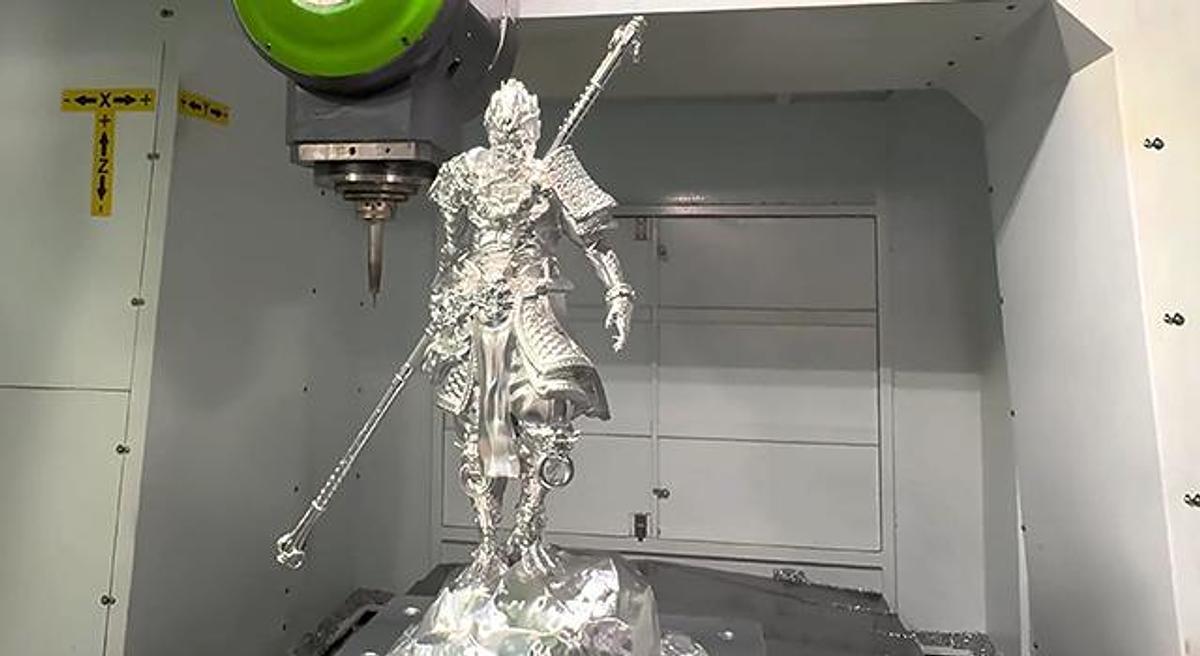

Others
Standard Configuration
Model S AC head, built-in spindle HSK A63 24000rpm_30/35kW_72/85Nm (SIEMENS / HEIDENHAIN)
60 pockets chain type tool changer, HSK A63
Y axis with dual direct drive
Sealed linear scales on X/Y/Z axes
Rotary encoder on B/C axes
Direct drive head
Full enclosed splash guard
Telescopic covers for linear axis (X-axis)
Two screw type and one chain type chip conveyor
High precision spindle water cooler
Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light

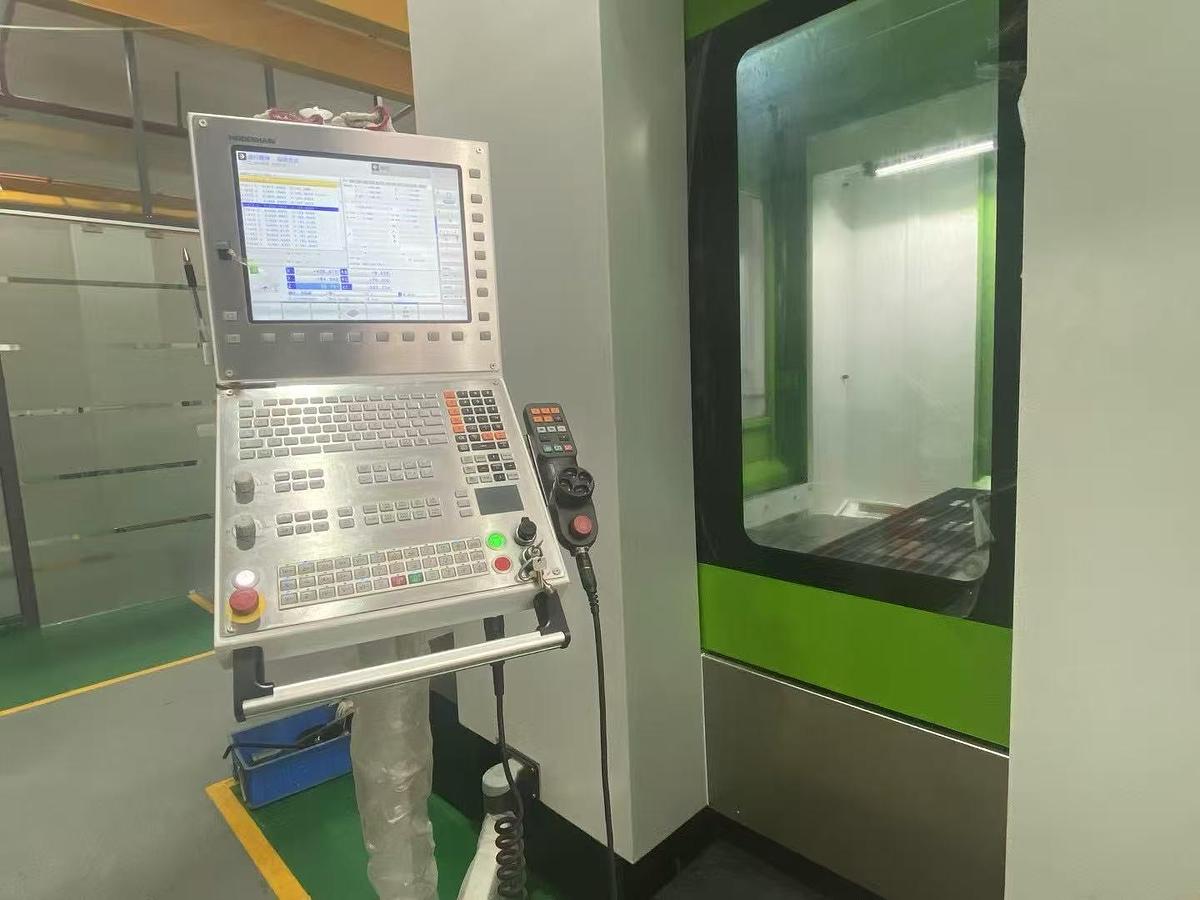

Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
CTS coolant through spindle + ATS
Oil cooling through ballscrew
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Coolant cooling system
Dynamic collision monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
Double Column 5-axis Machining Center
Coming Soon
Automotive Mould
General Machining
Standard Cutting
Others
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Table Size | 1,800 x 1,400 mm (70.87” × 55.12”) |
| T slot [width x distance x number] | 22 × 170 × 7 mm (0.87” × 6.69” × 0.28”) |
| Max. load | 6,000 kg (13,228 lbs) |
| X/Y/Z travel | 1,900 / 1,400 / 800 mm (74.80” / 55.12” / 31.50”) |
| A/C Travel | ±108° ~ ±360° |
| Spindle taper | HSK A63 |
| Spindle motor power | 30 / 35 kW |
| Spindle motor torque | 72 / 85 Nm |
| Spindle speed | 24,000 rpm |
| Spindle nose to table | 50 ~ 850 mm (1.97” ~ 33.46”) |
| Distance between column | 1,960 mm (77.17”) |
| 90° spindle center line to table | 410 -1,210 mm (16.14” ~ 47.64”) |
| Rapid feed X/Y/Z | 24 m/min |
| Rotation speed B/C | 50 rpm |
| CNC control | Siemens / Heidenhain |
