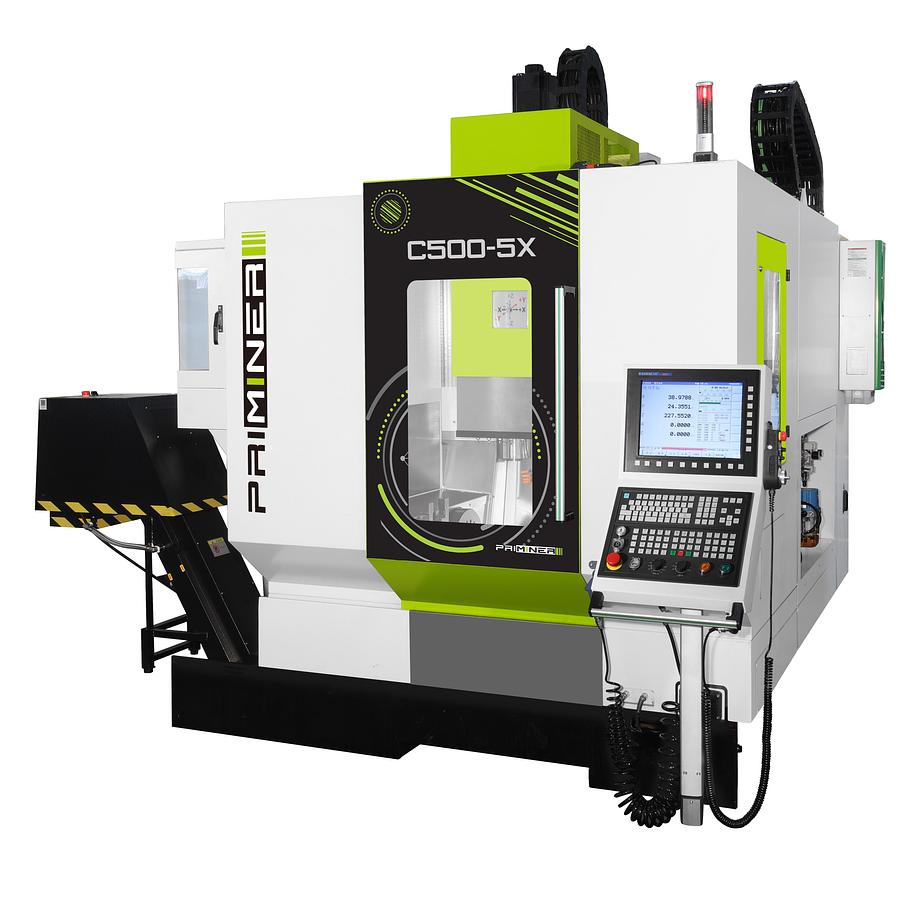

C500-5X
Description

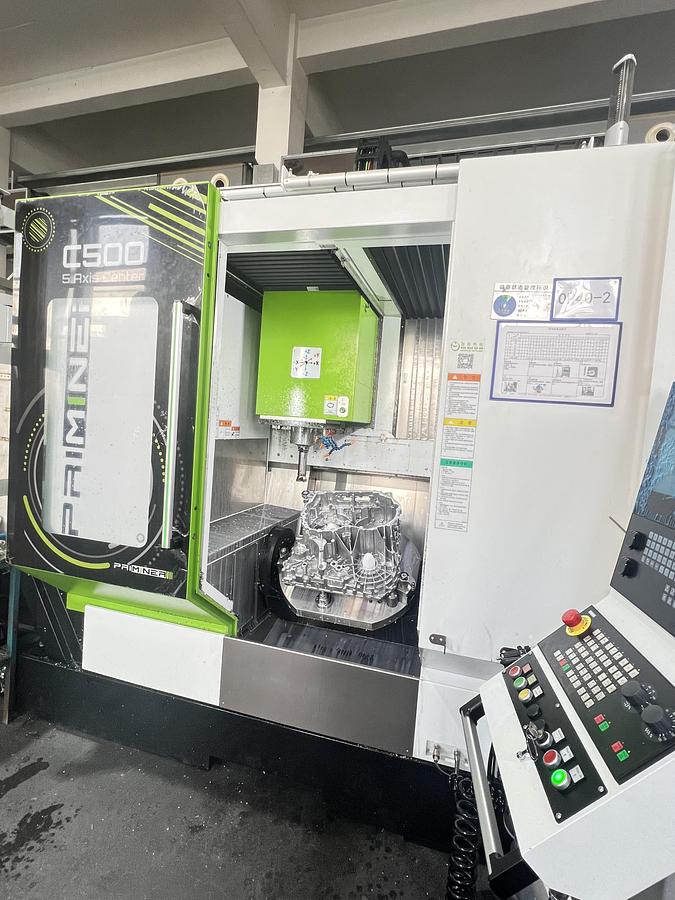

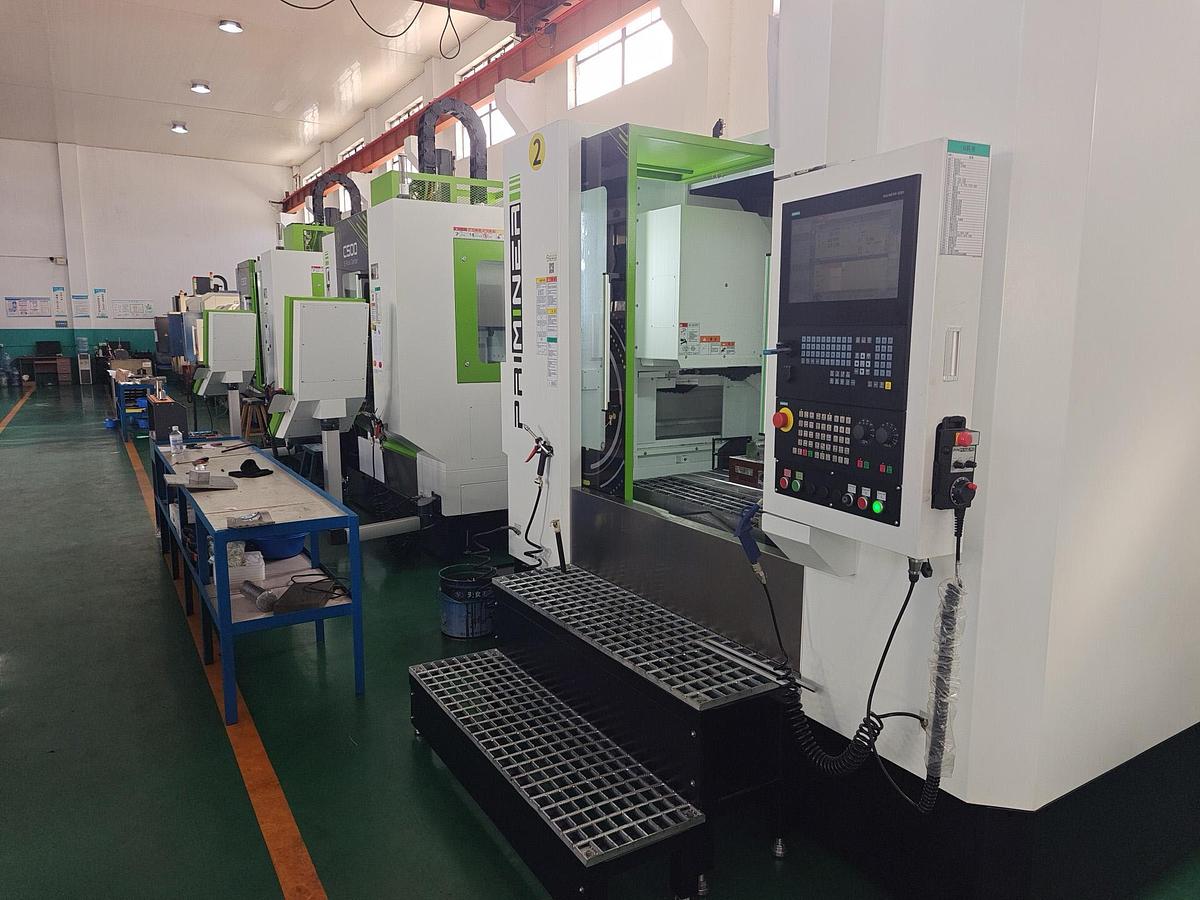

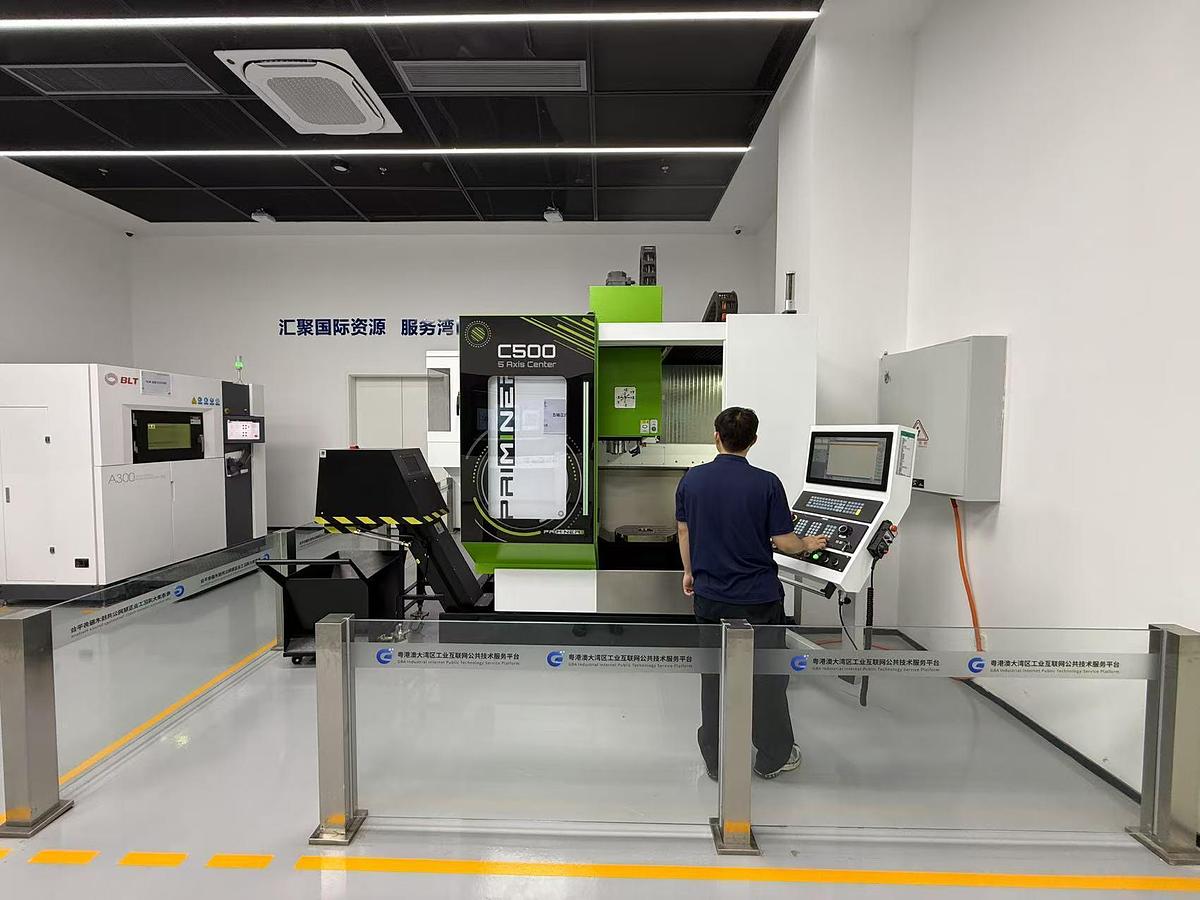

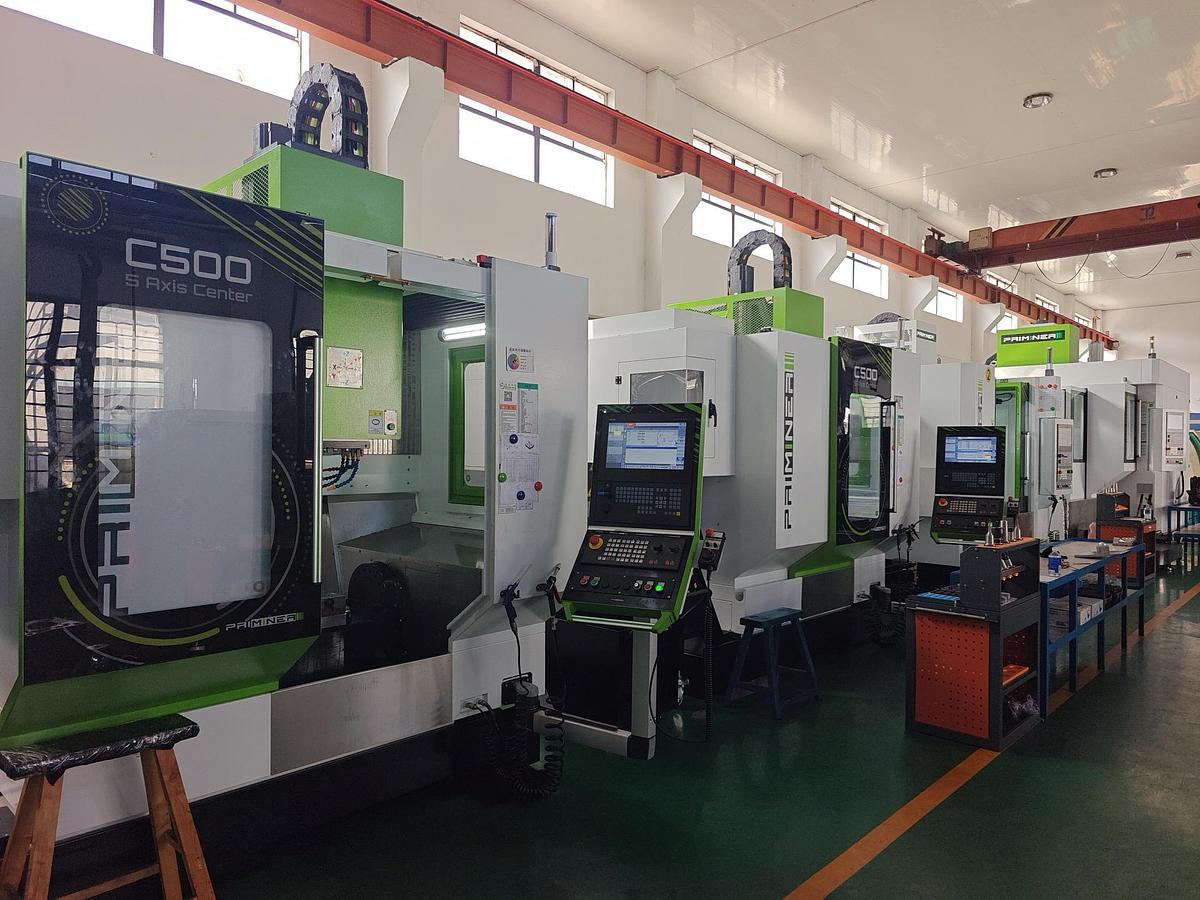

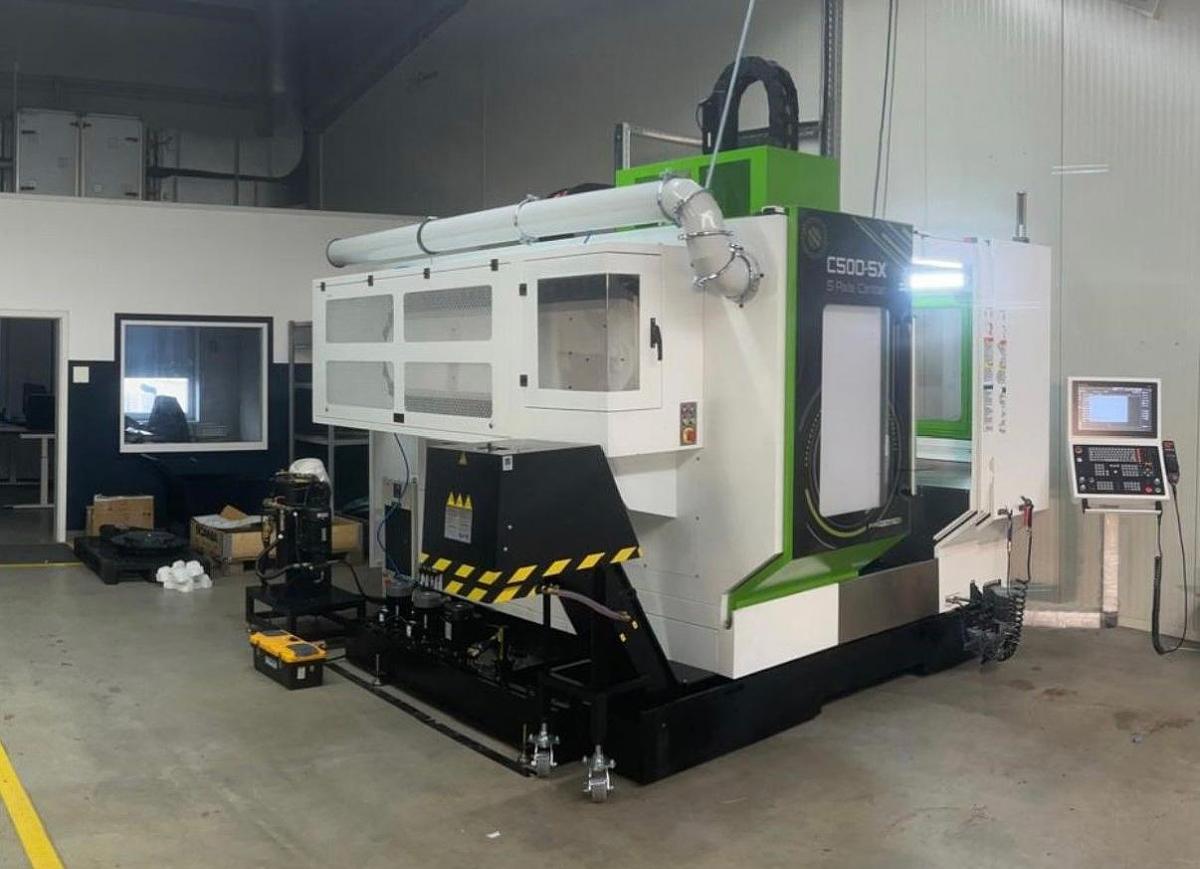

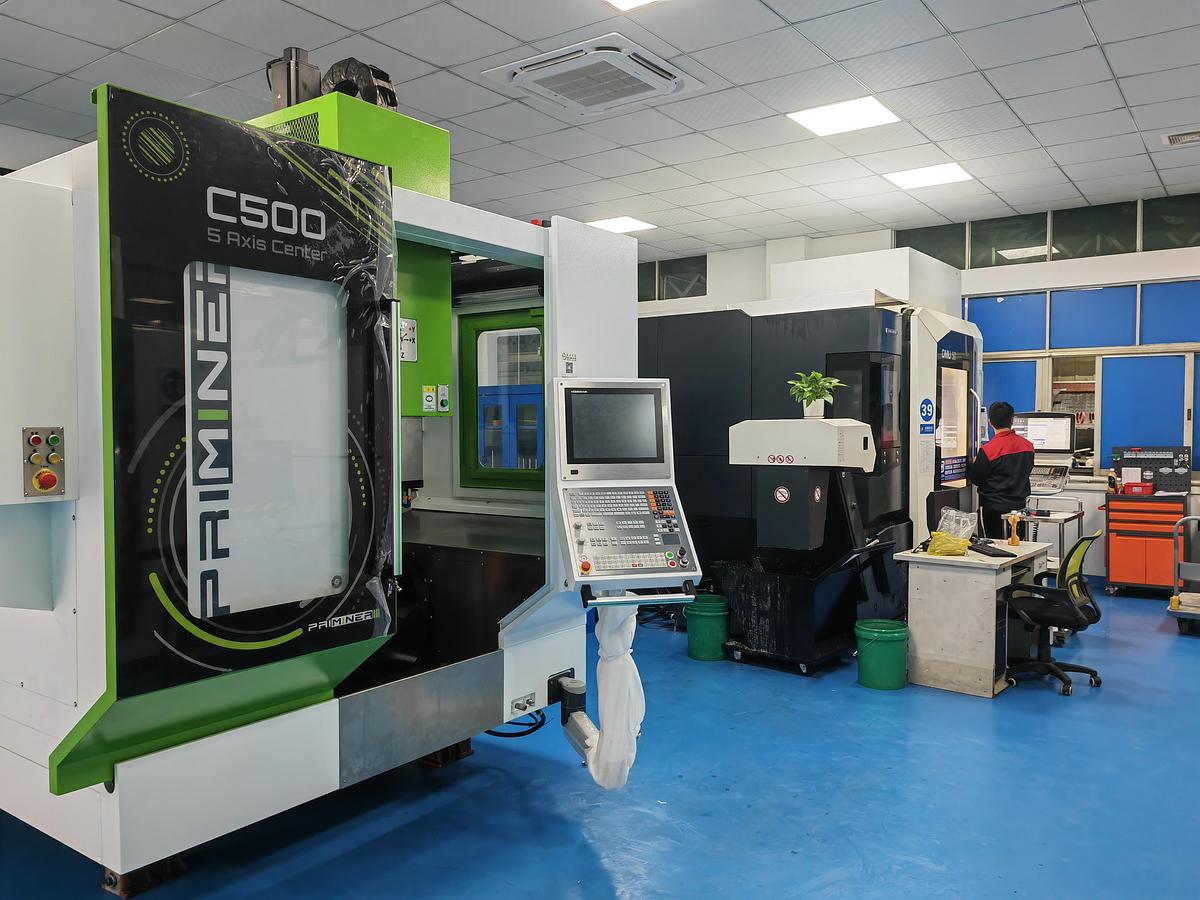

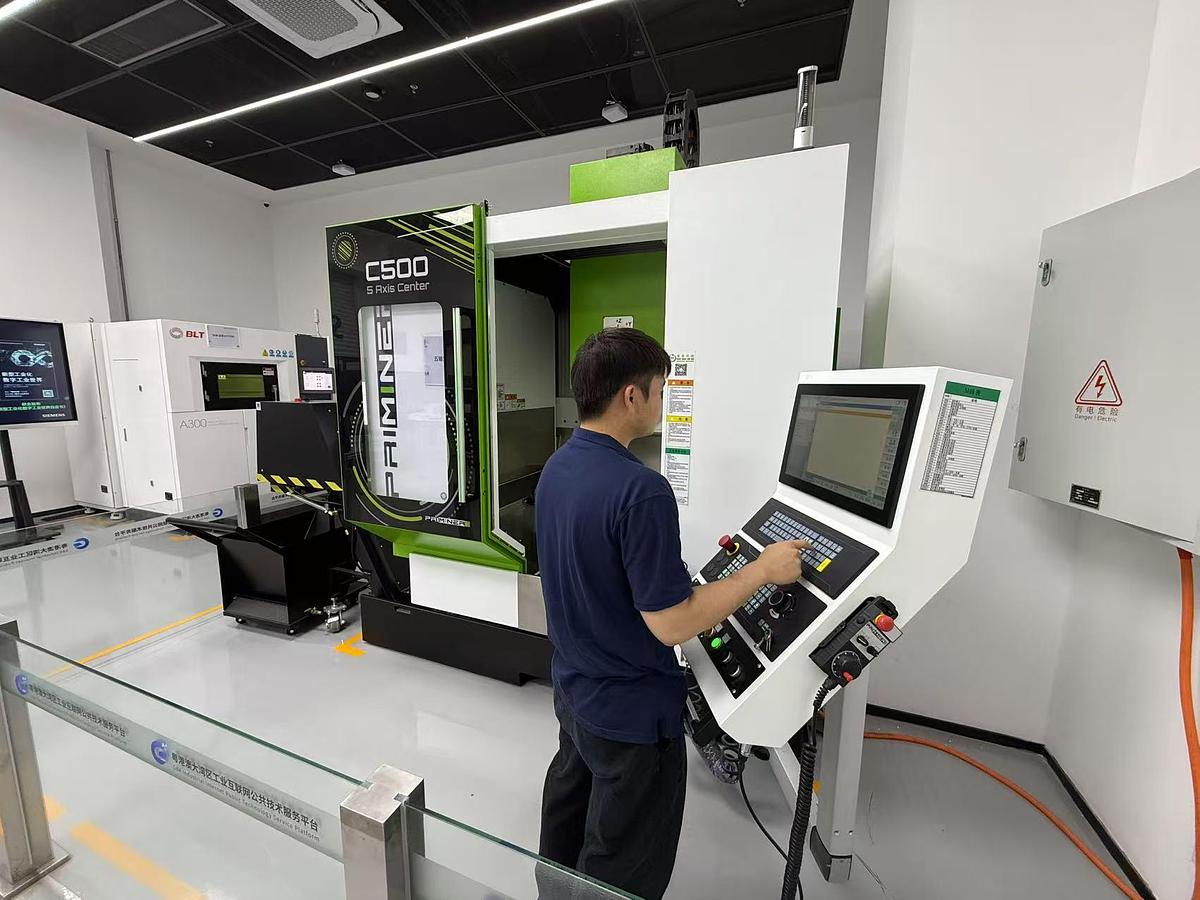

C500-5X
Moving beam bed structure, allows operators to approach the processing area more easily
X/Y/Z axis movement are separated from the machining area

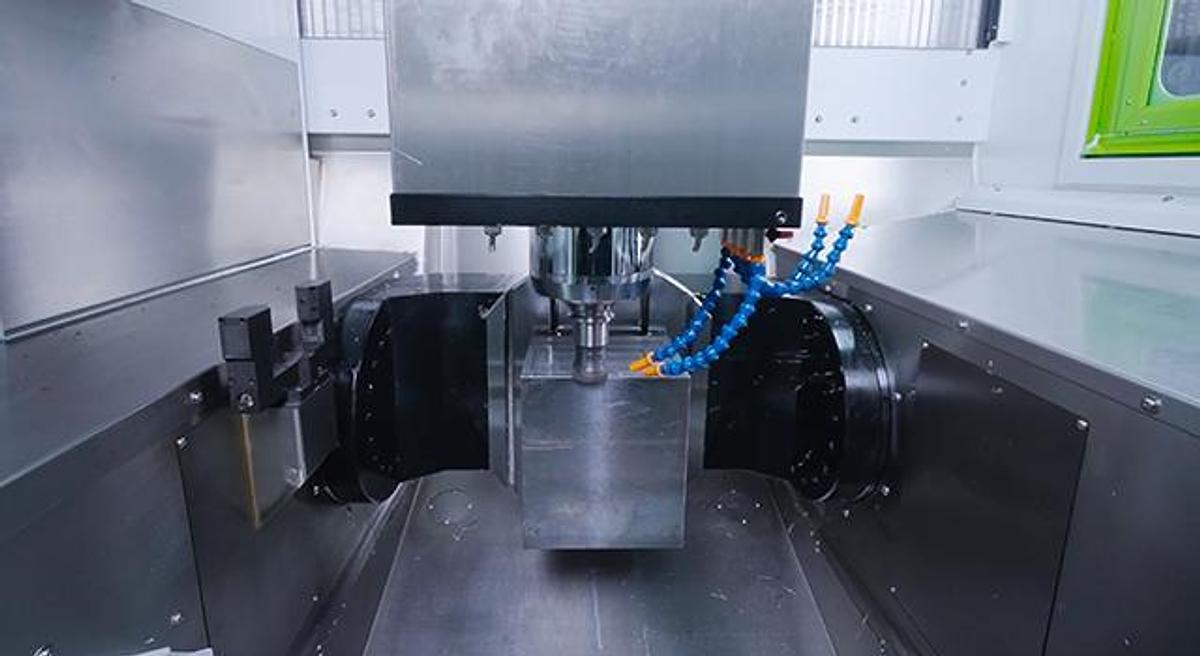

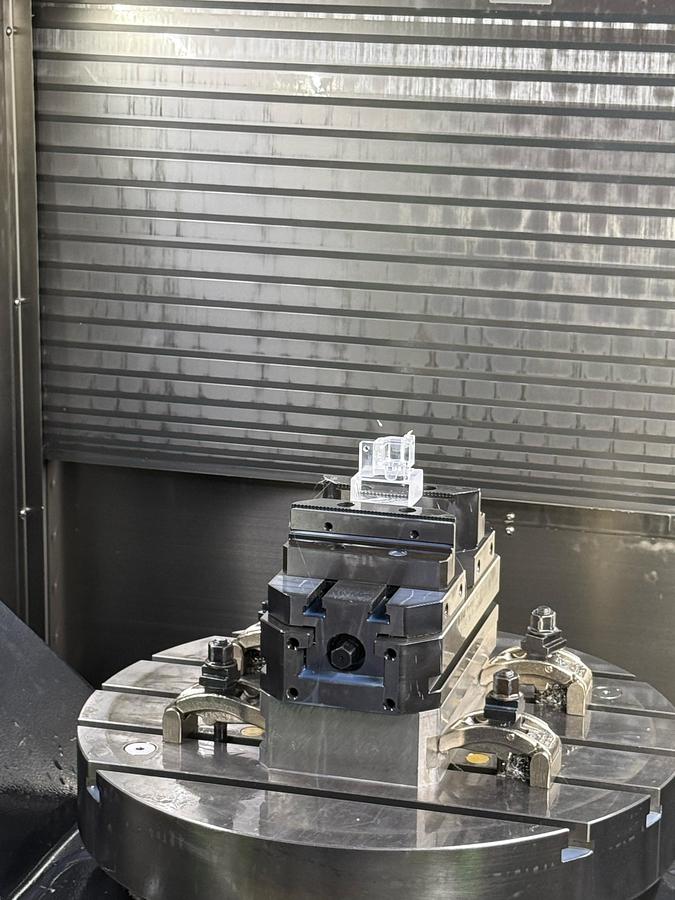

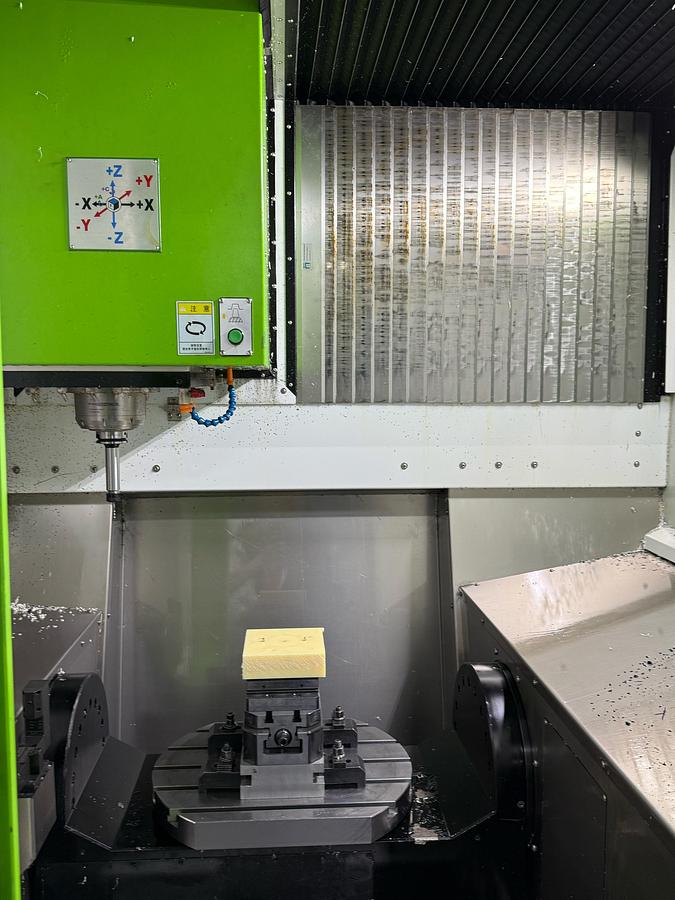

Dual-support rotary table, high rigidity, high performance and efficiency
A/C axis with roller gear cam drive, high rigidity and heavy-load cutting capability

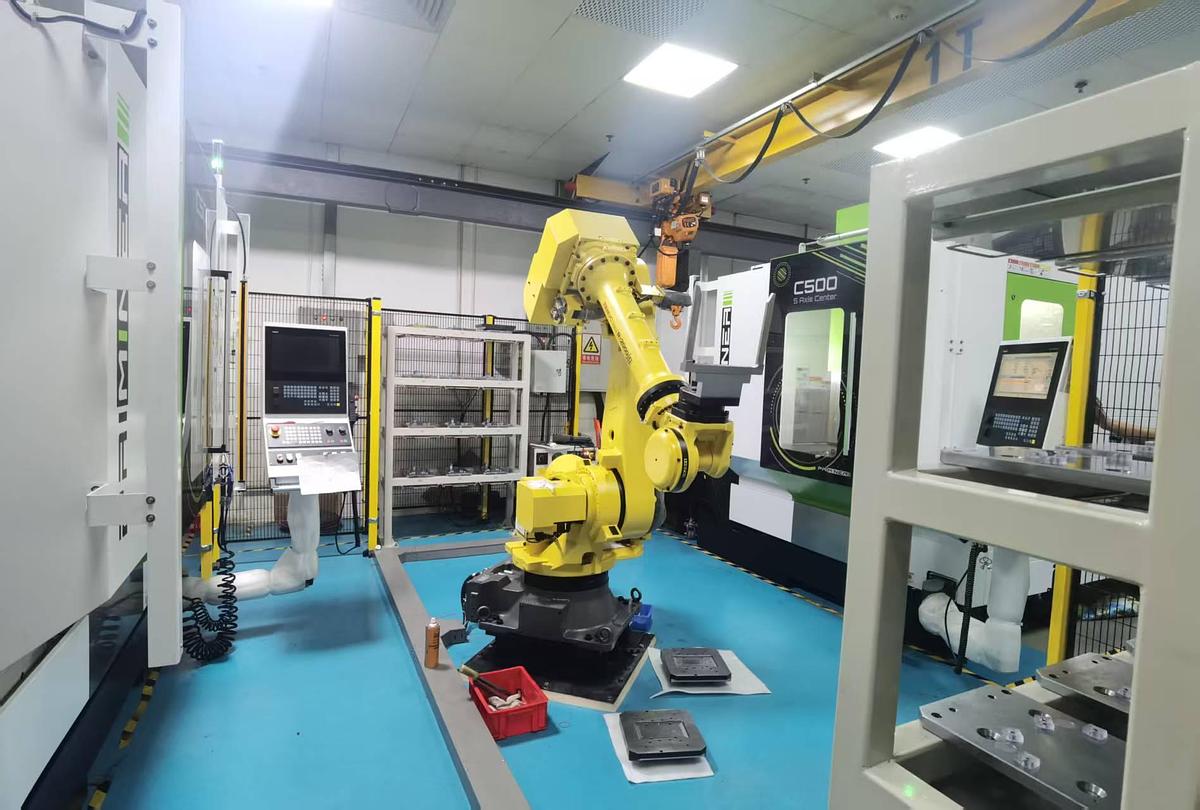

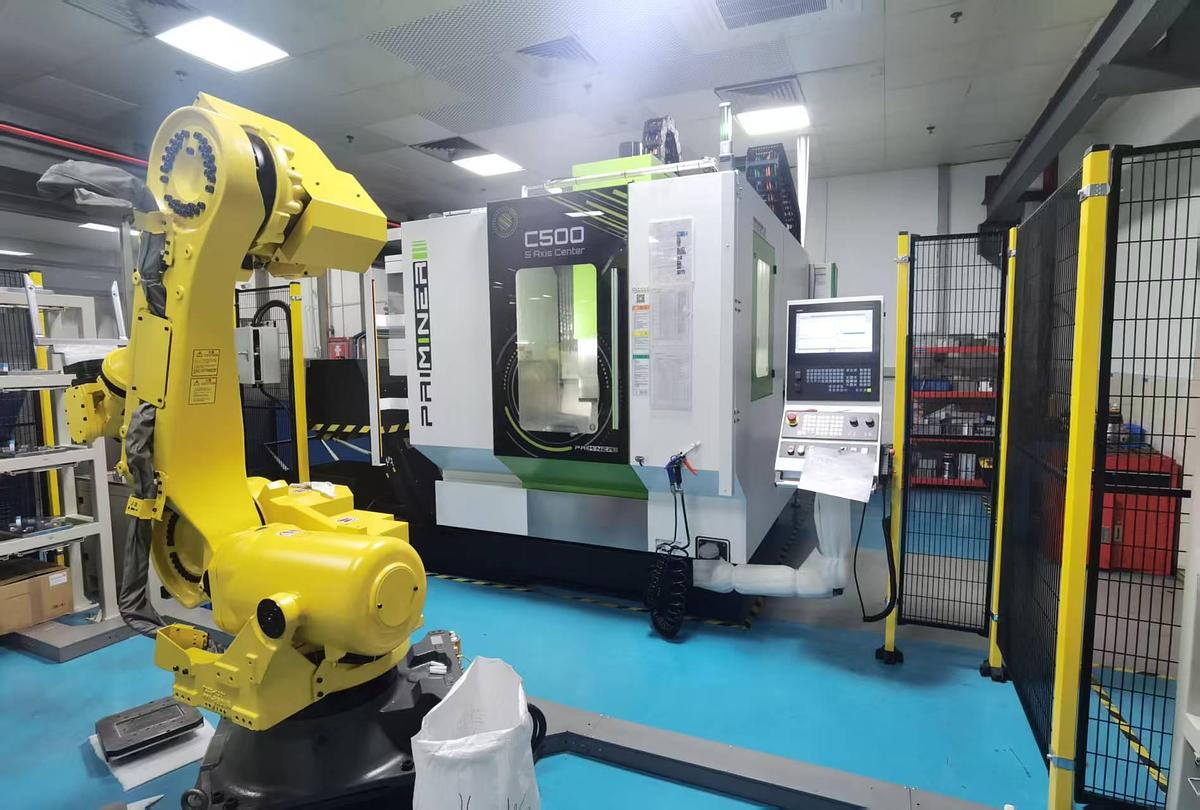

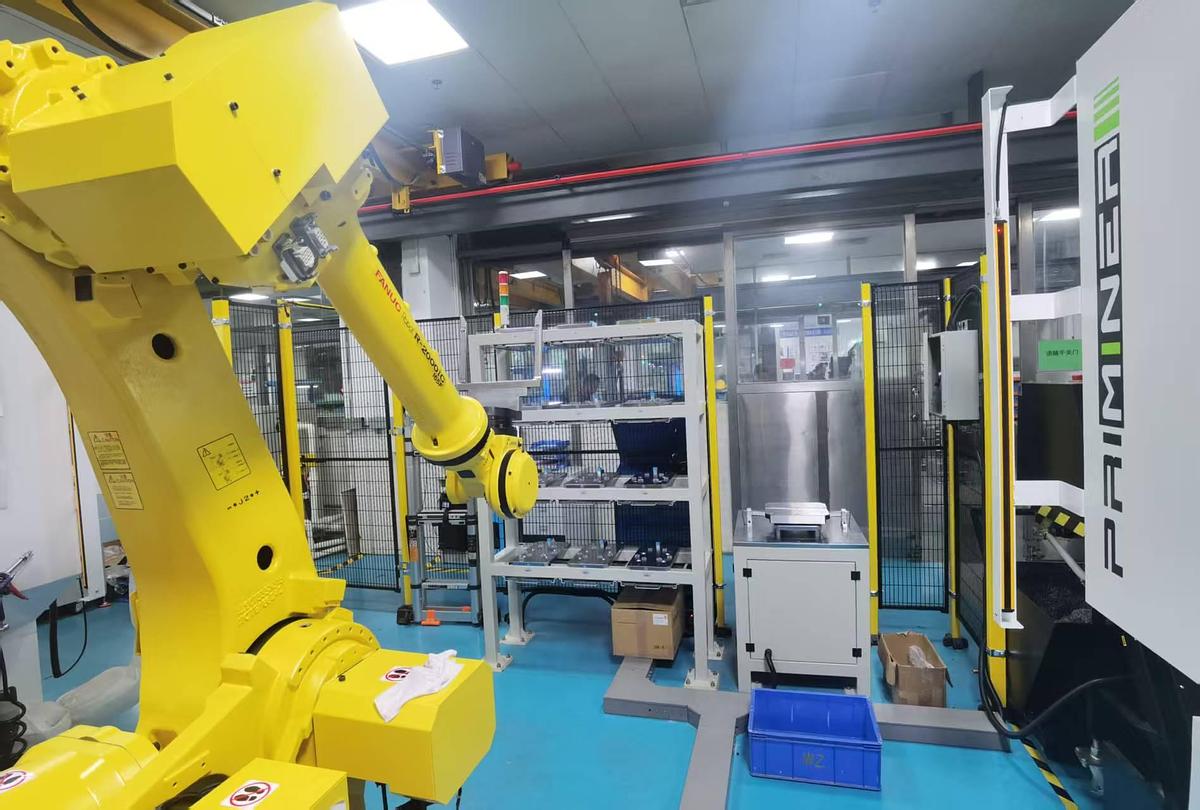

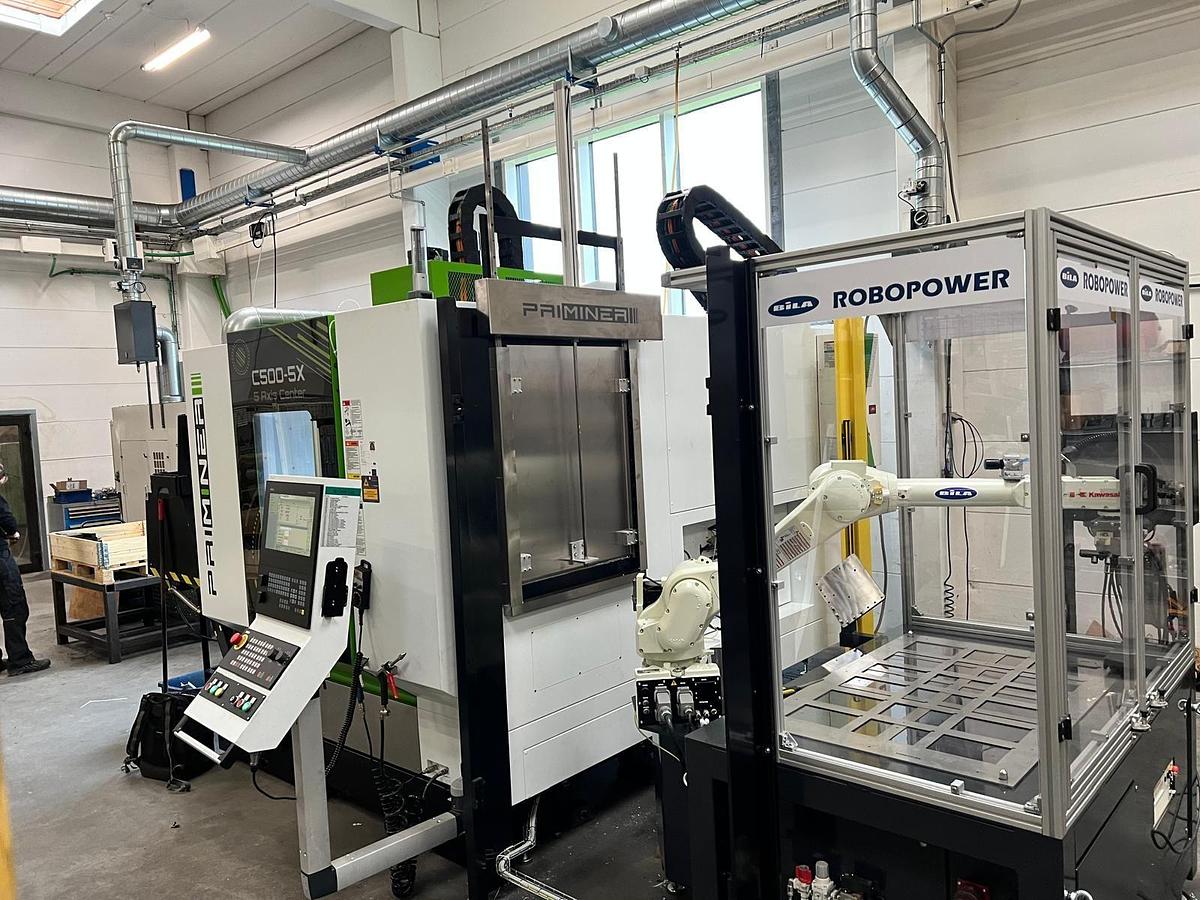

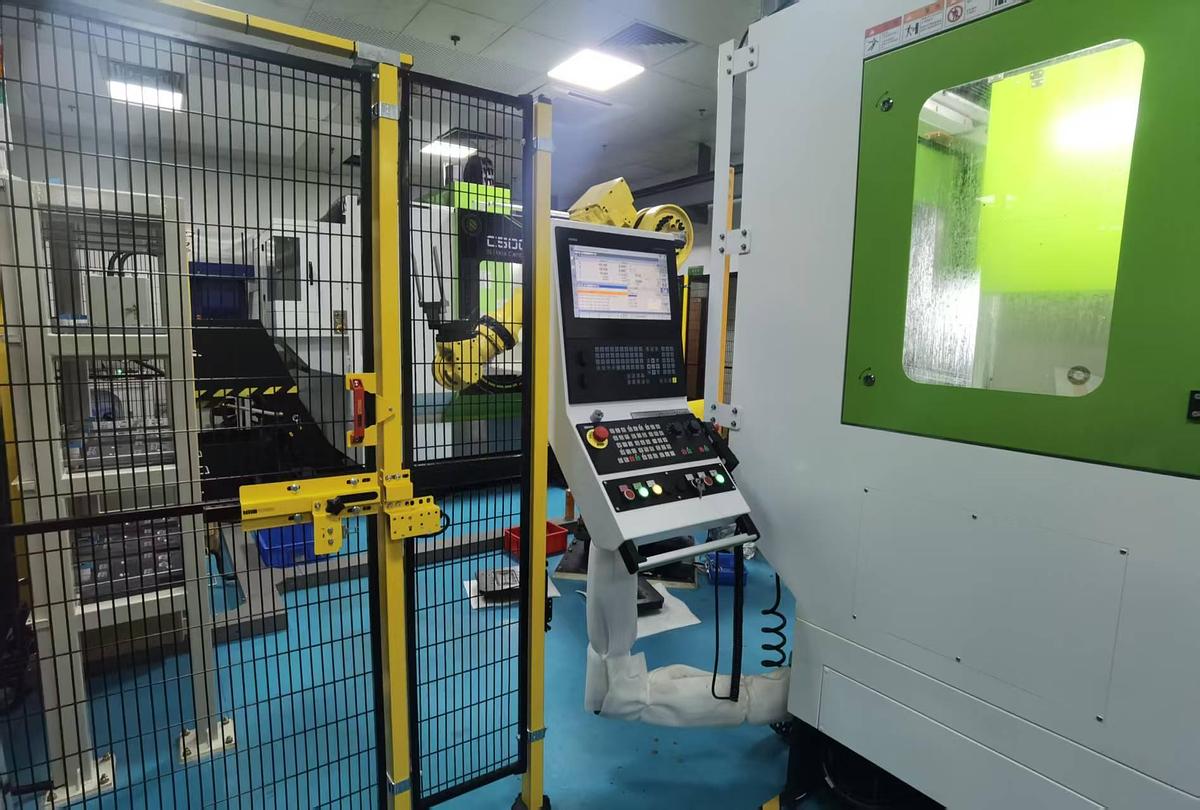

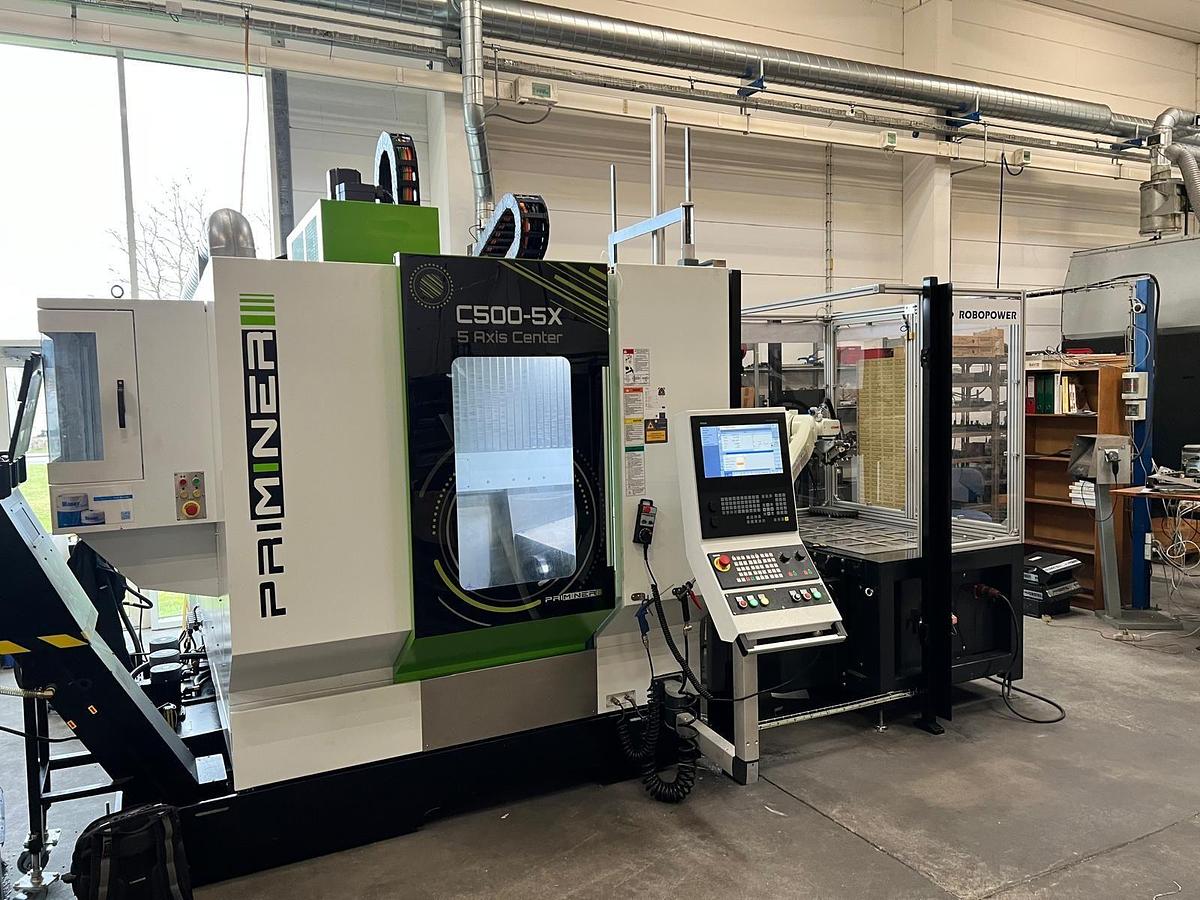

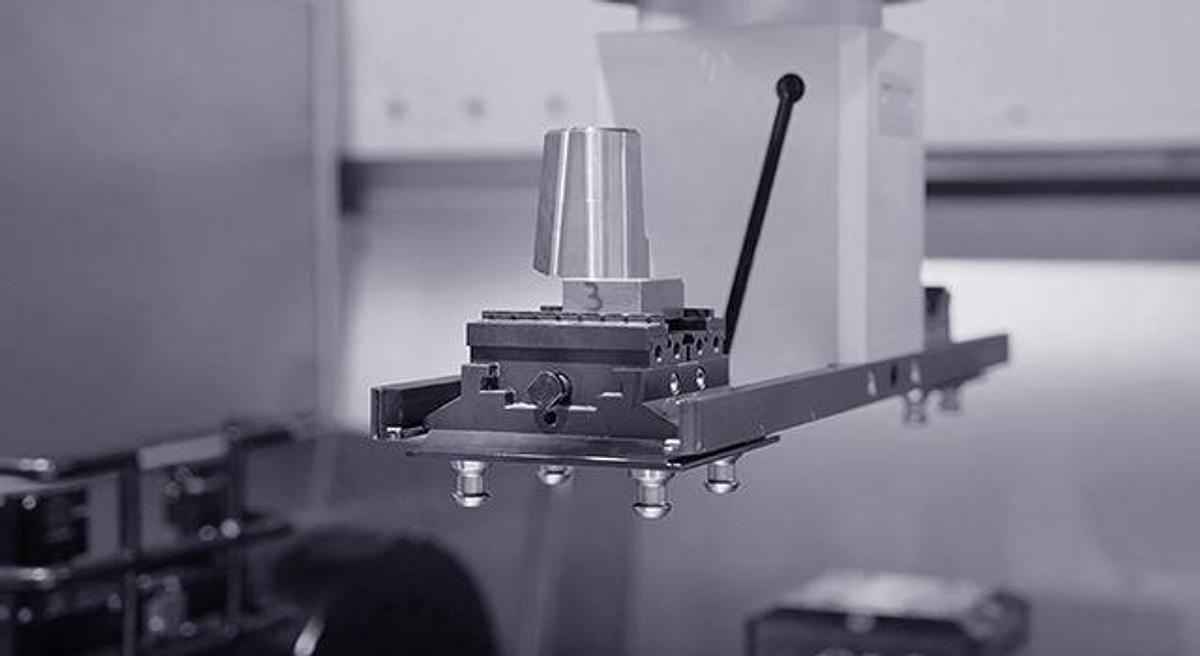

Automation
General Machining

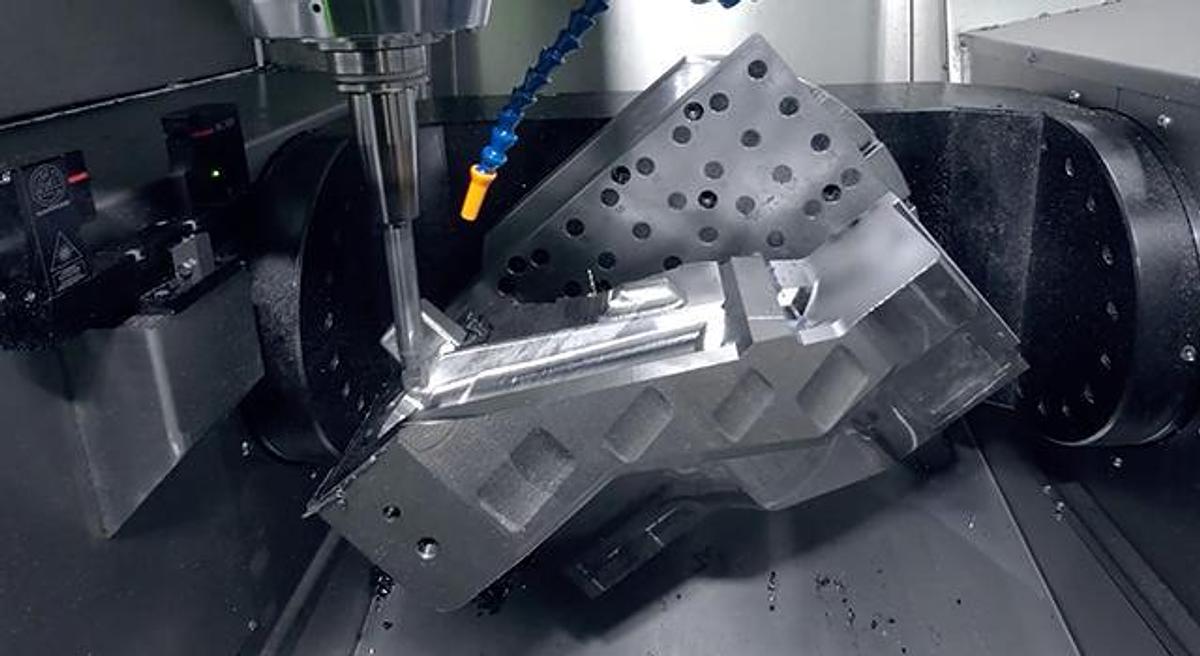

Mold Machining

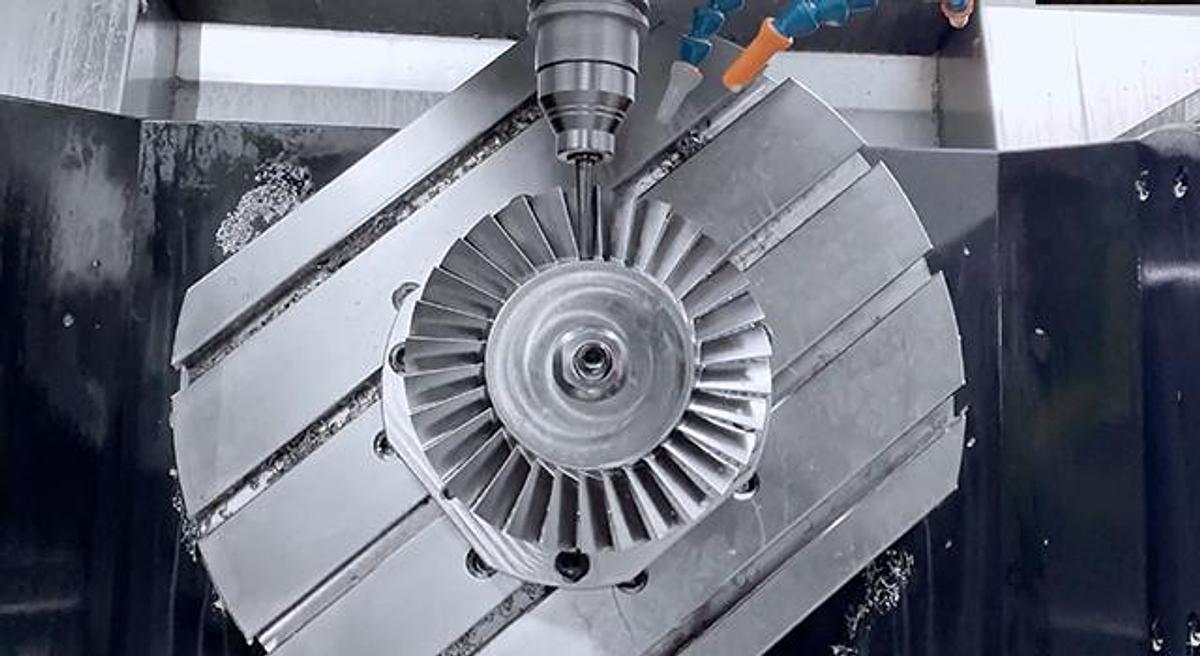

Impeller/Blade Machining

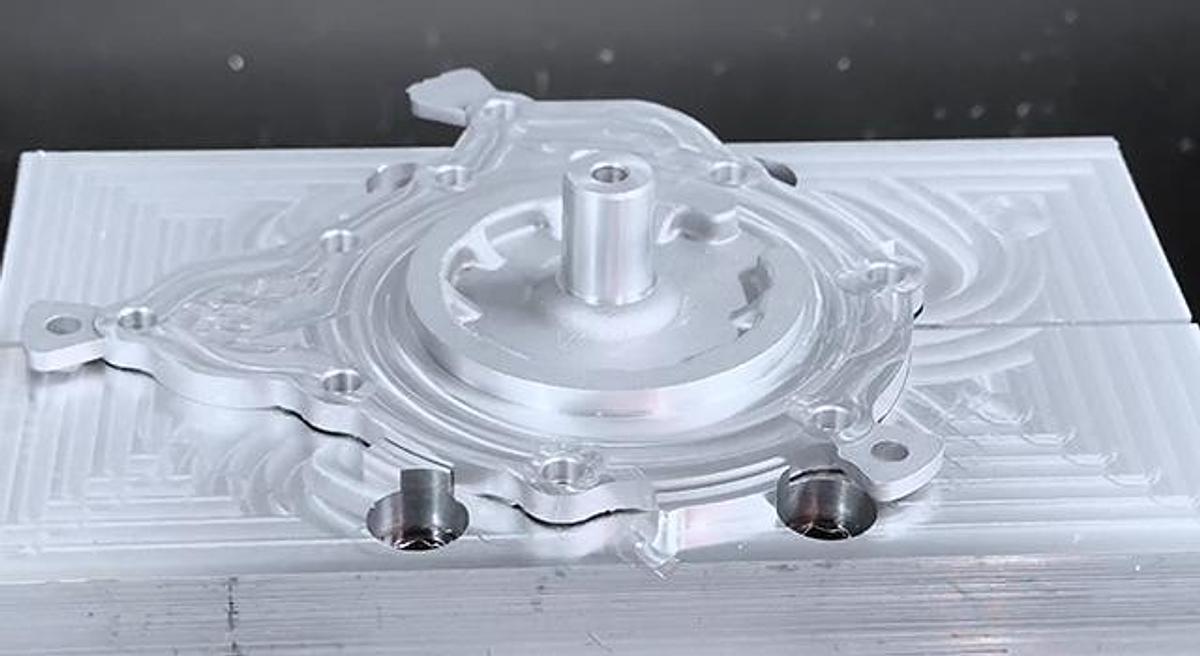

Die Casting Machining

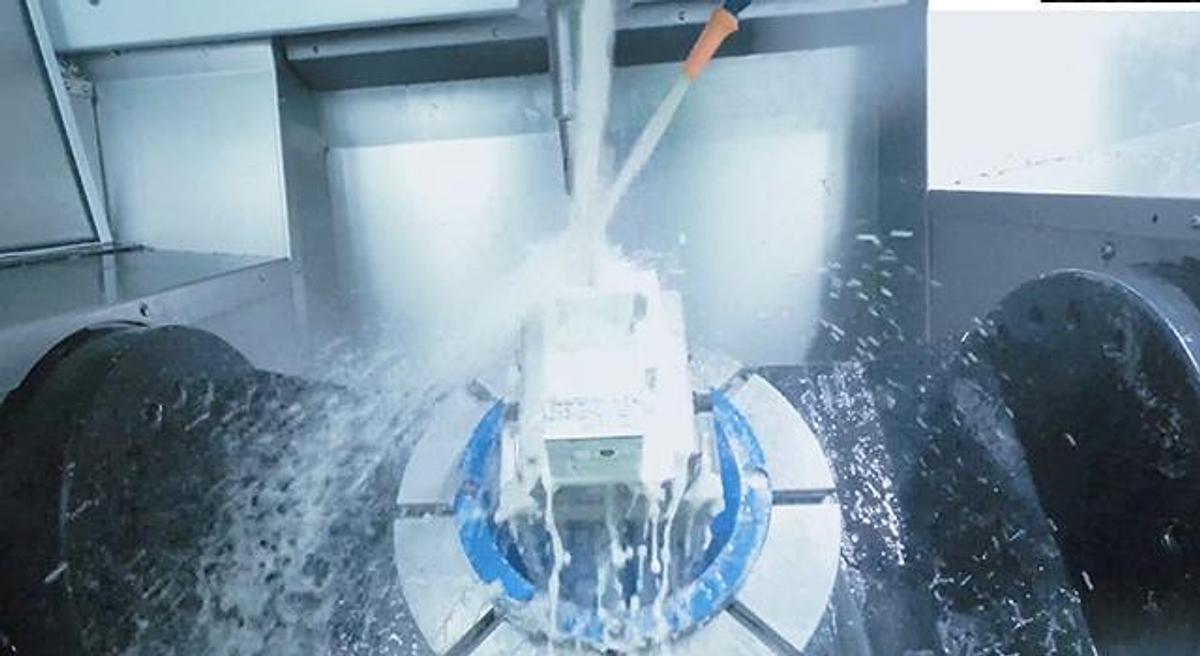

Medical Part Machining
Others
Standard Configuration
Direct drive spindle HSK A63 15000rpm_8.5/33.5kW_63/135Nm (SIEMENS / HEIDENHAIN)
Direct drive spindle BBT40/SK40/CAT40 12000 rpm_11/18.5kW_52.5/118Nm (FANUC)
Roller gear cam drive rotary table
Rotary encoder on A/C axes
Full enclosed splash guard
60 pockets chain type tool changer, HSK A63
40 pockets chain type tool changer, BBT40/SK40/CAT40
Chain type chip conveyor
Spindle oil cooler
Air-condition electrical cabinet
Rigid tapping
Automatic lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Direct drive spindle BBT40/SK40/CAT40 12000 rpm_9/22kW_63/135Nm (SIEMENS)
Direct drive spindle BBT40/SK40/CAT40 15000 rpm_8.5/33.5kW_63/135Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 18000rpm_30/36kW_85/102Nm (SIEMENS / HEIDENHAIN)
Built-in spindle HSK A63 20000rpm_20/24kW_48/58Nm (SIEMENS / HEIDENHAIN)
Sealed Linear scales on X/Y/Z axes
40 pockets chain type tool changer,BT40/SK40/CAT40/HSK A63
60 pockets chain type tool change,BT40/SK40/CAT40
90 pockets tool changer,BT40/SK40/CAT40/HSK A63
CTS coolant through spindle + ATS
Workpiece probe
Tool probe
Oil mist collector
Oil skimmer
Dynamic collision monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
5-axis Machining Center
Coming Soon
Automation
General Machining
Mold Machining
Impeller/Blade Machining
Die Casting Machining
Medical Part Machining
Others
5-Axis simultaneous

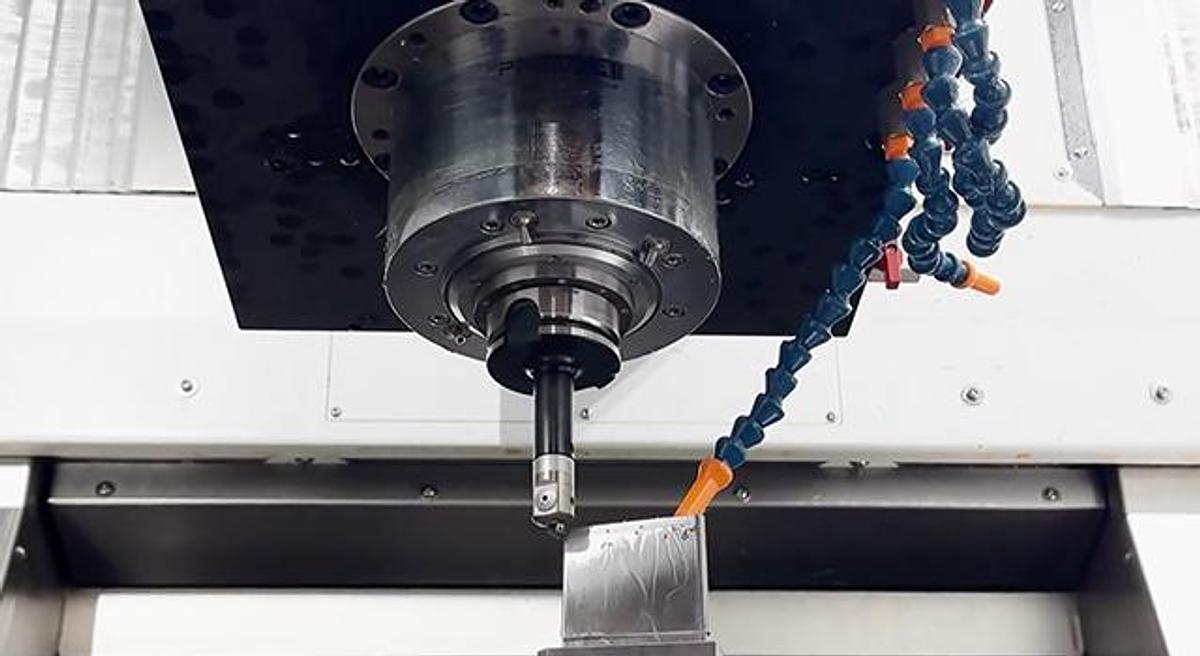

hale orbital machining

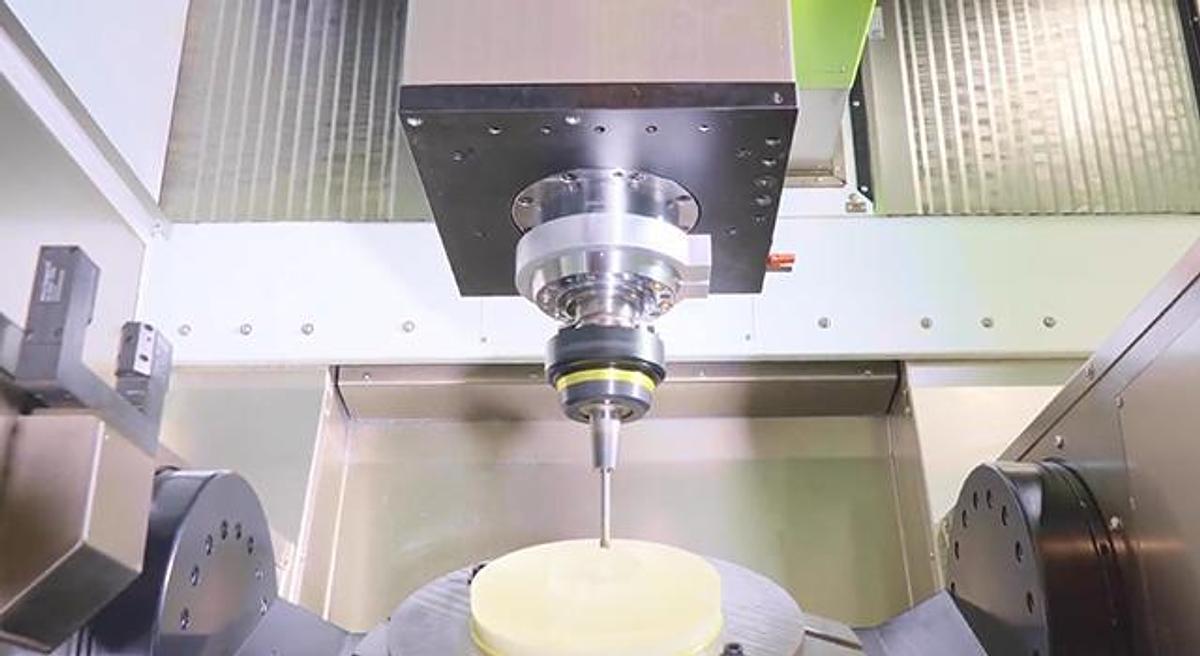

Ultrasonic machining
Vibrocut

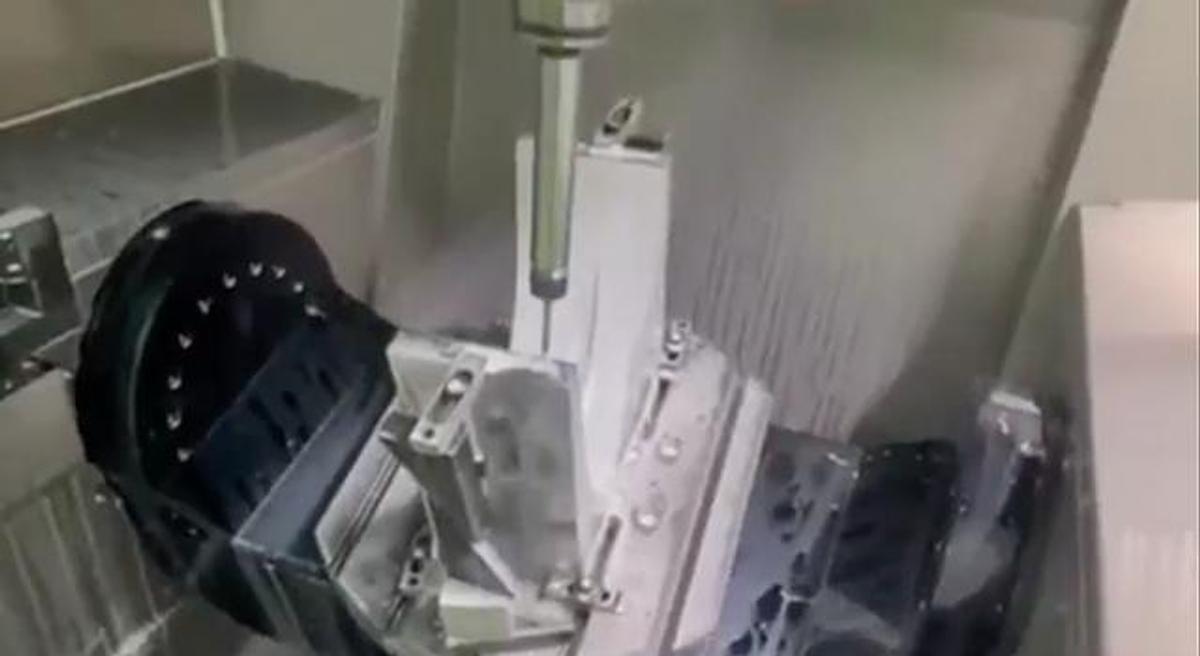

Deep Cutting

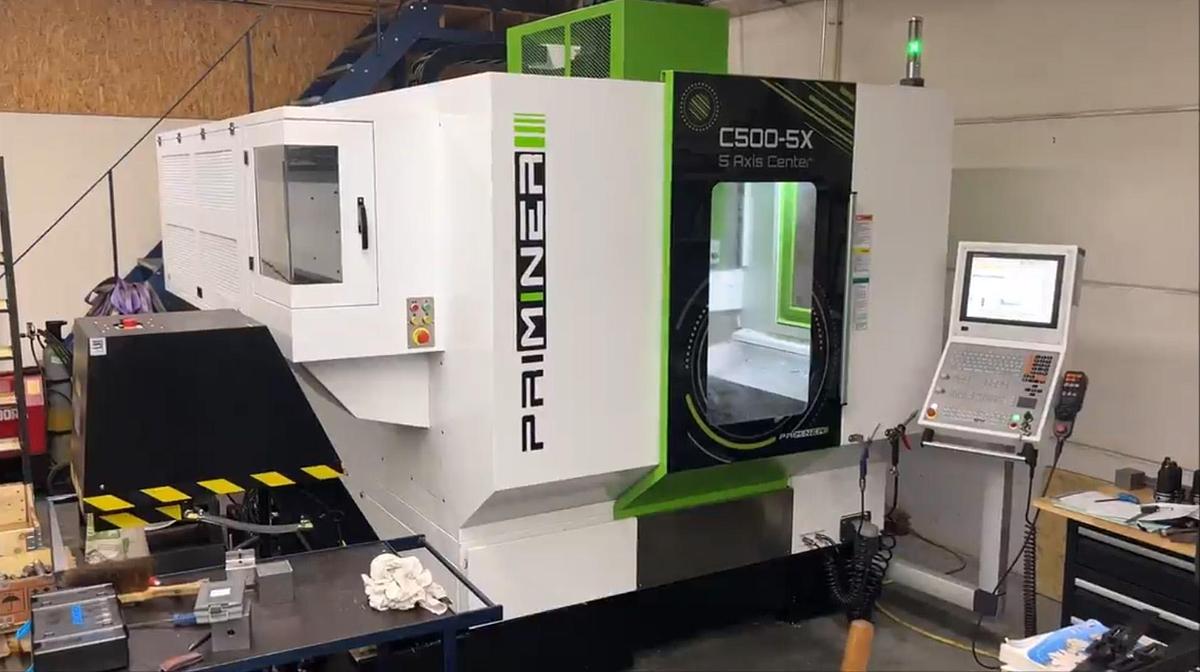

Italy Successful Client
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Max. workpiece diameter | Φ700 x 500 mm (Ø27.56” × 19.69”) |
| Table Size | Φ500 x 400 mm (Ø19.69” × 15.75”) |
| T slot [width x distance x number] | 14 × 80 × 5 mm (0.55” × 3.15” × 0.20”) |
| Max. load | 300 kg (661.39 lbs) |
| X/Y/Z travel | 700 / 550 / 500 mm (27.56” / 21.65” / 19.69”) |
| A/C Travel | +30° ~ -120° / ±360° |
| Spindle taper | HSK A63 |
| Spindle motor power | 8.5 / 33.5 kW |
| Spindle motor torque | 63 / 135 Nm |
| Spindle speed | 15,000 rpm |
| Spindle nose to table | 120 ~ 620 mm (4.72” ~ 24.41”) |
