U500-5X
Description

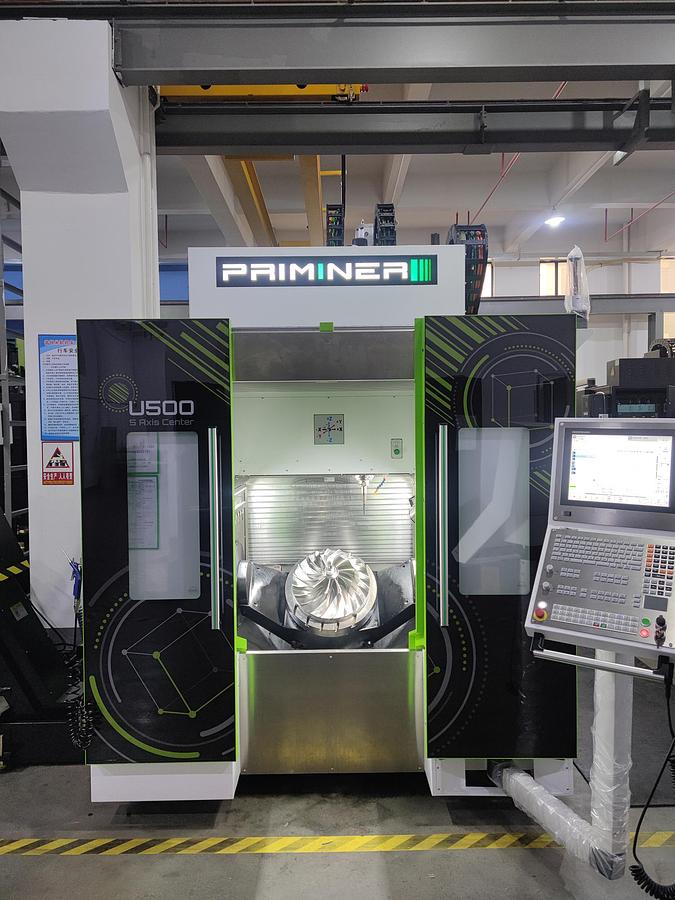

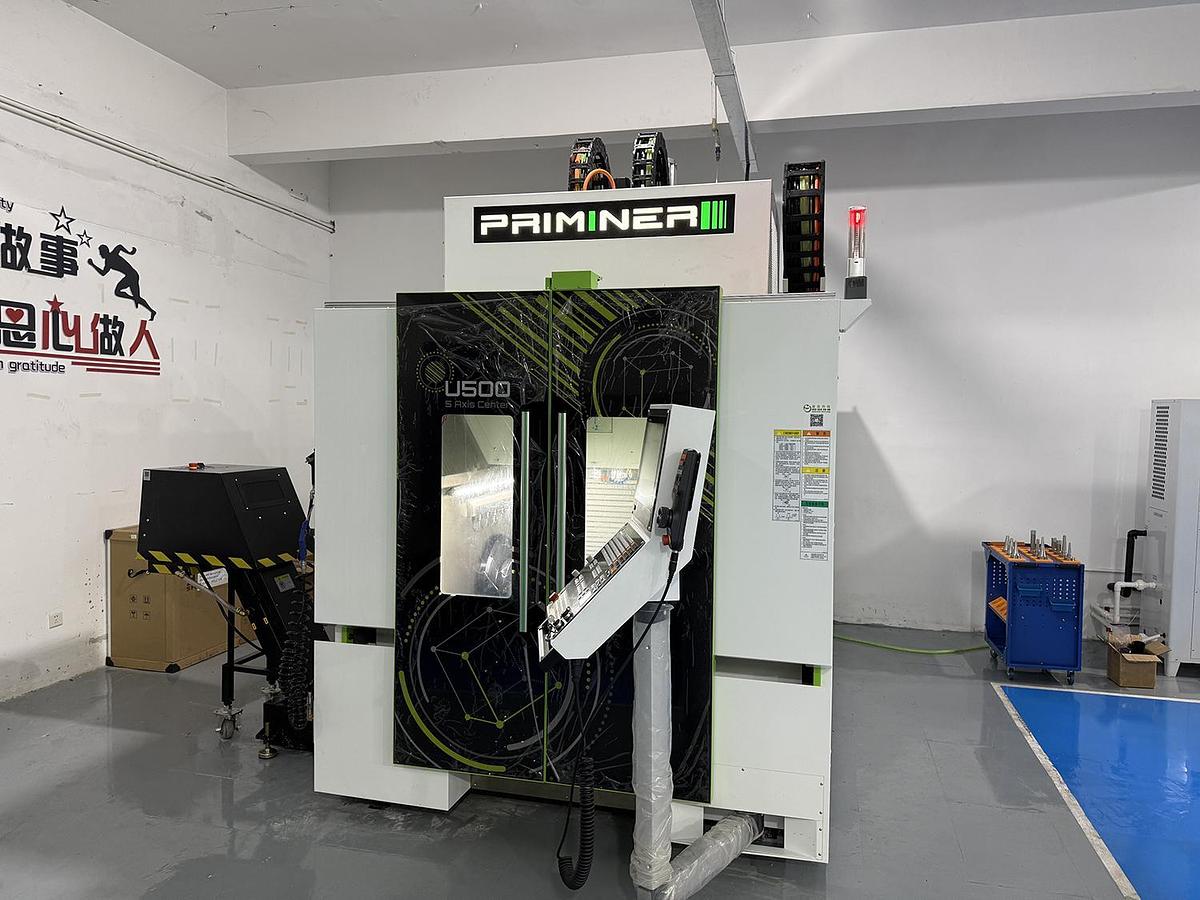

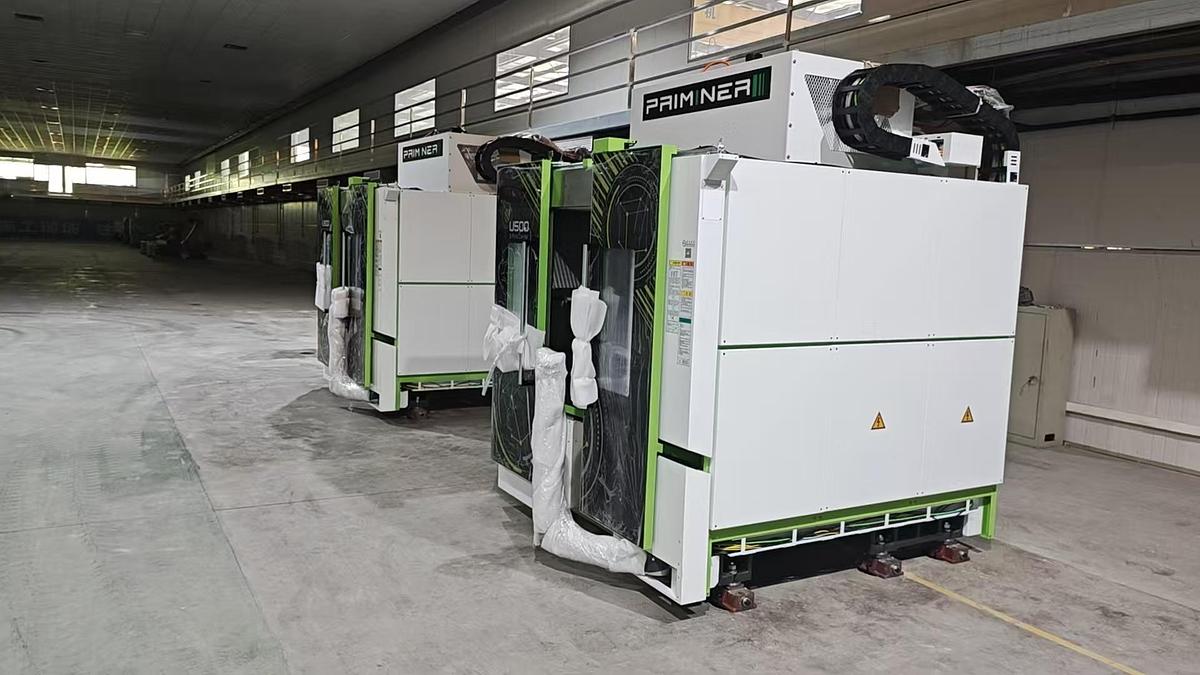

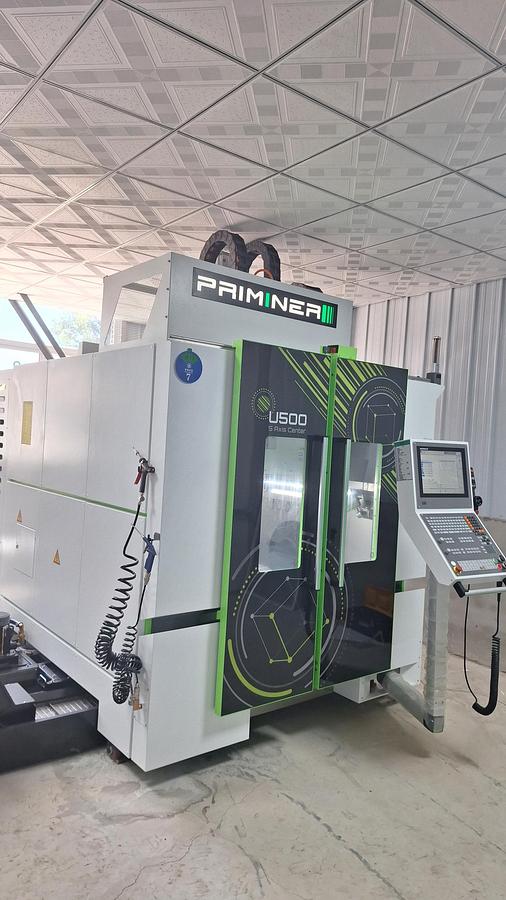

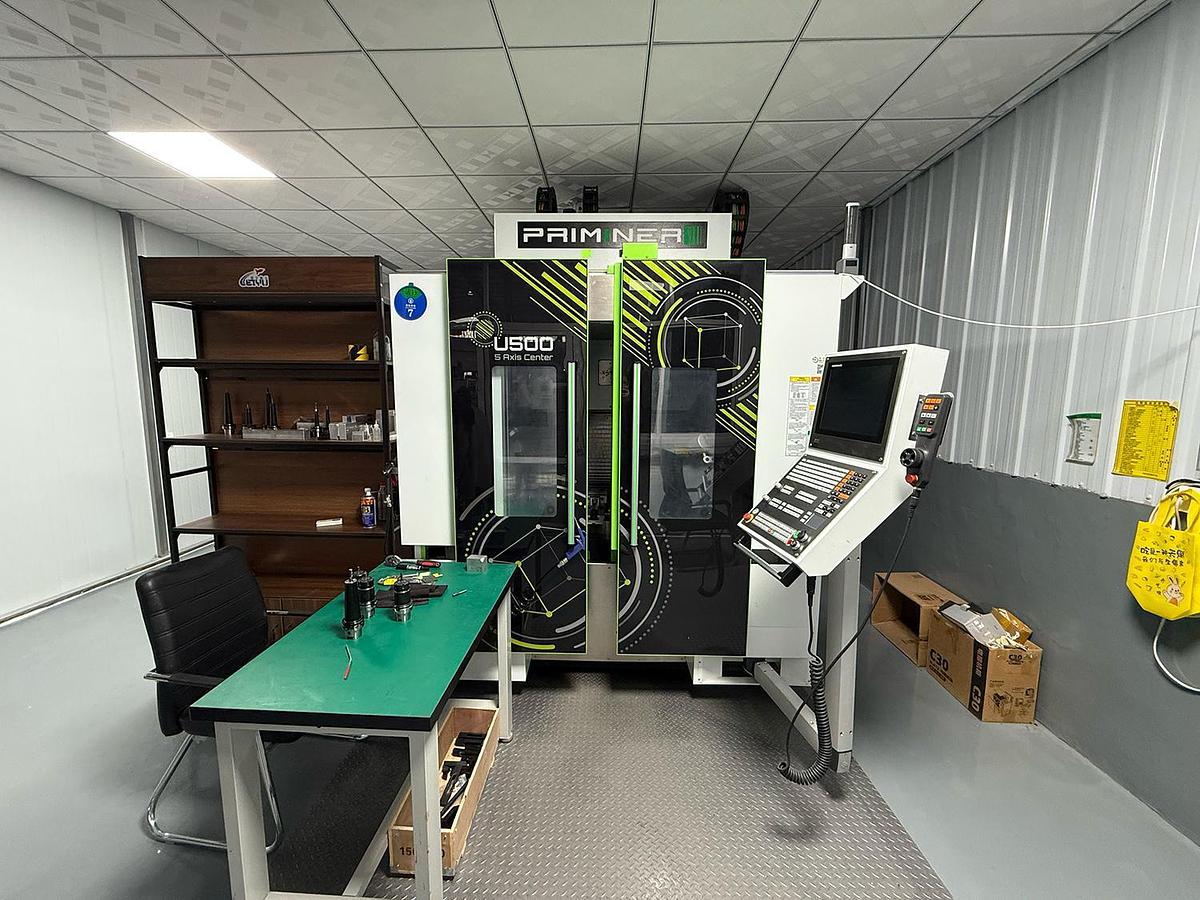

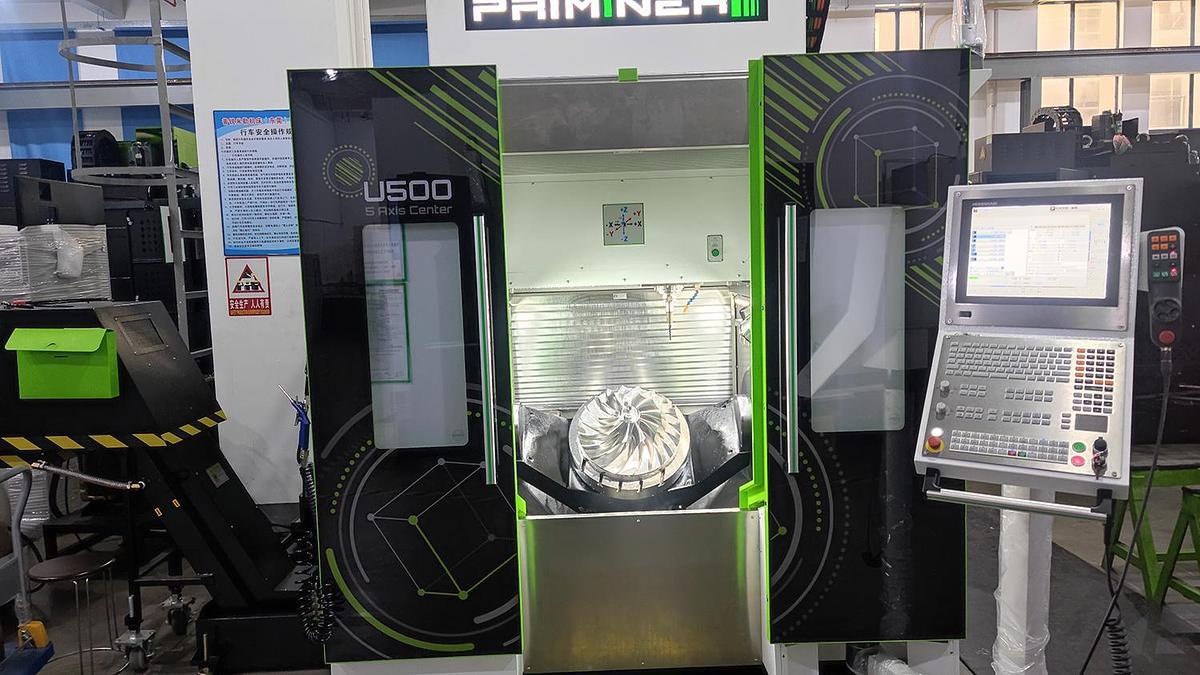

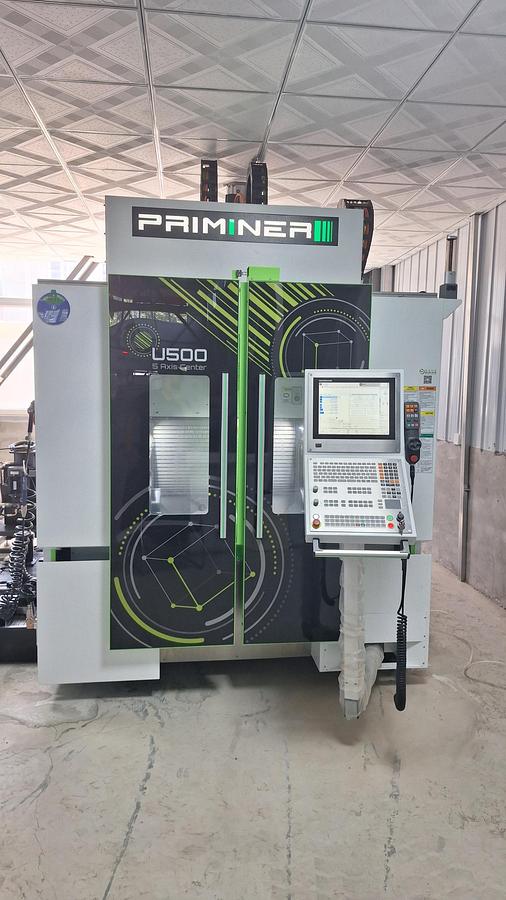

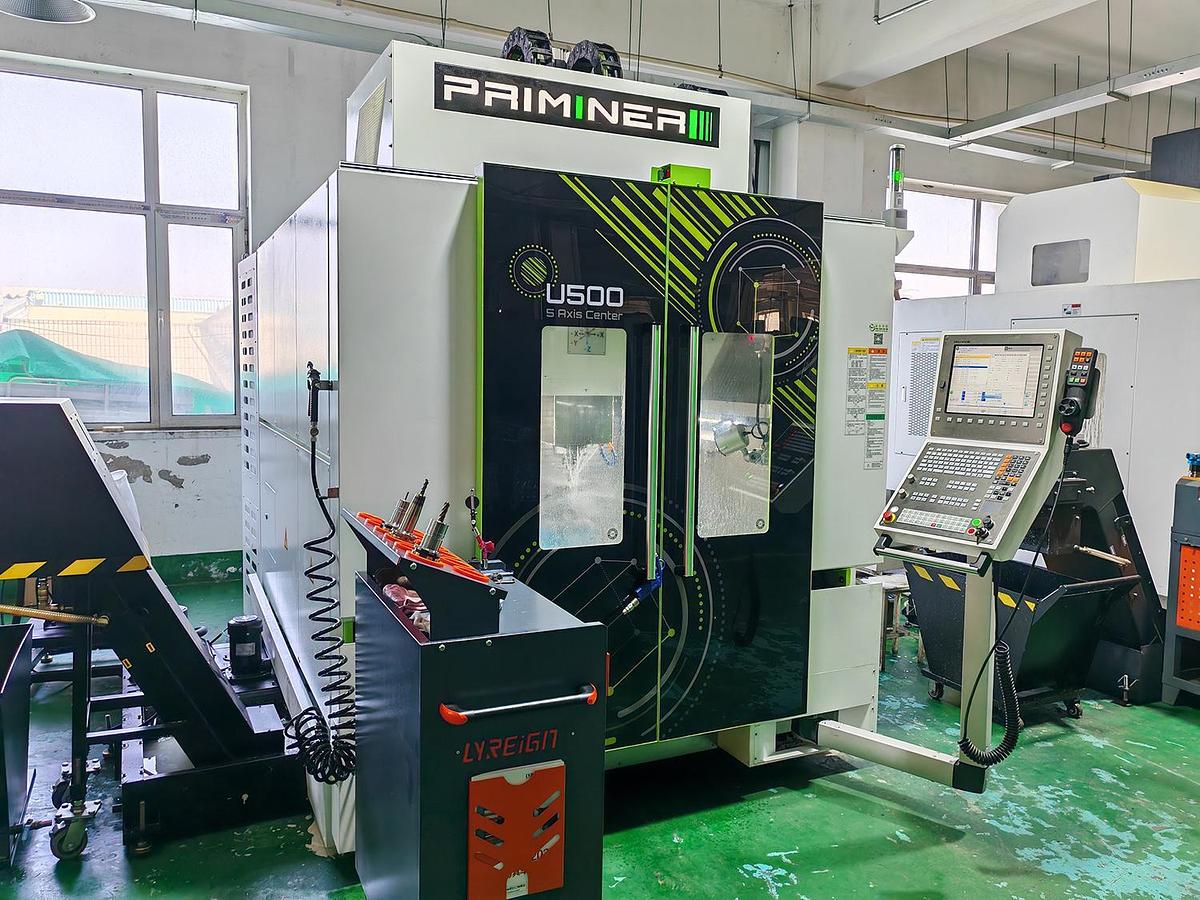

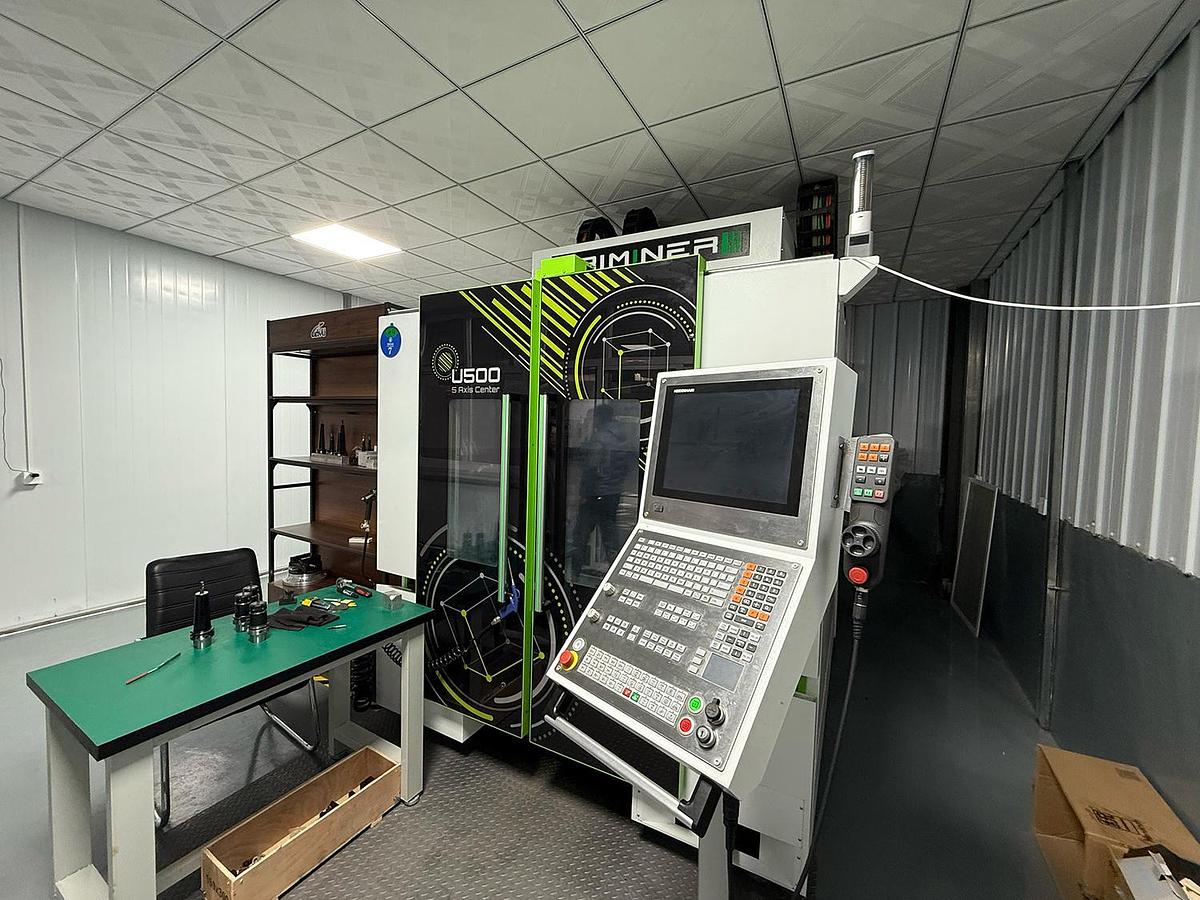

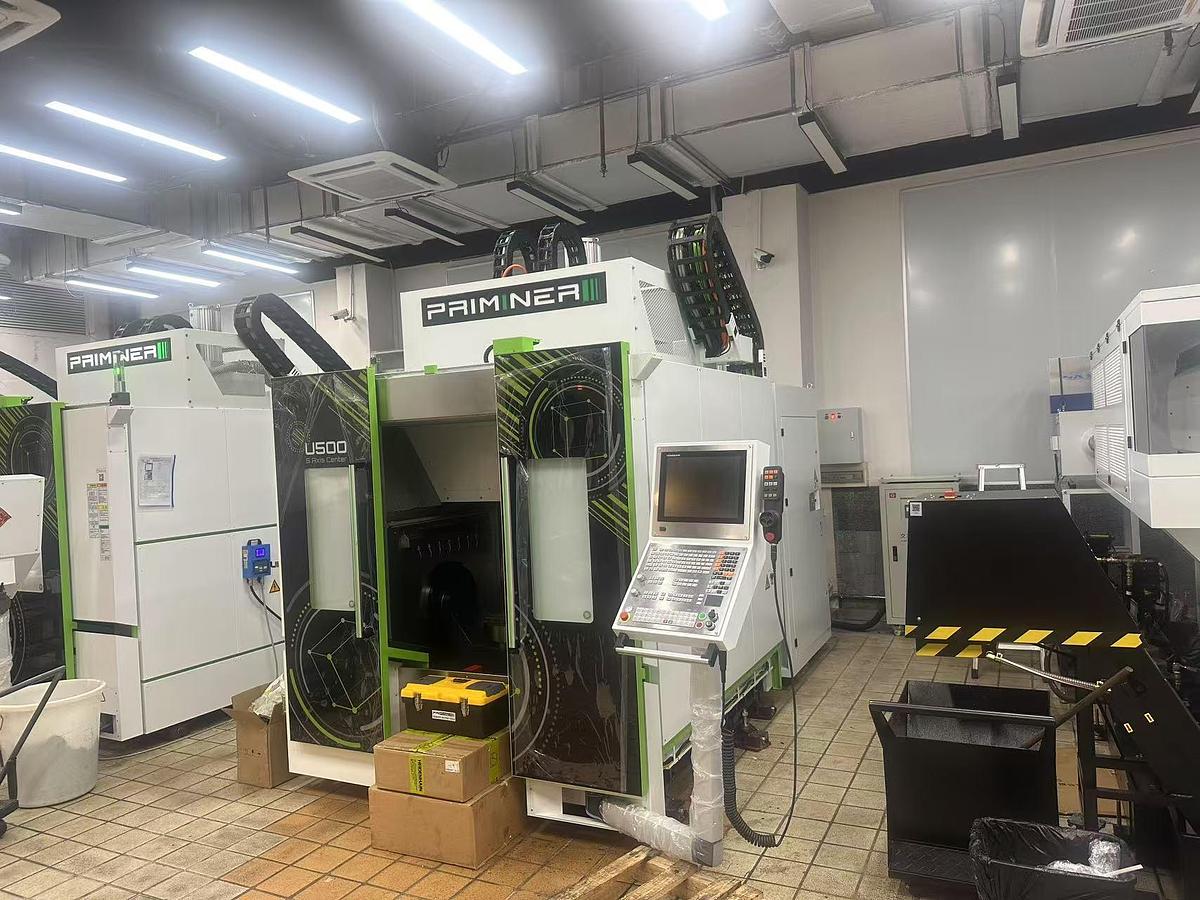

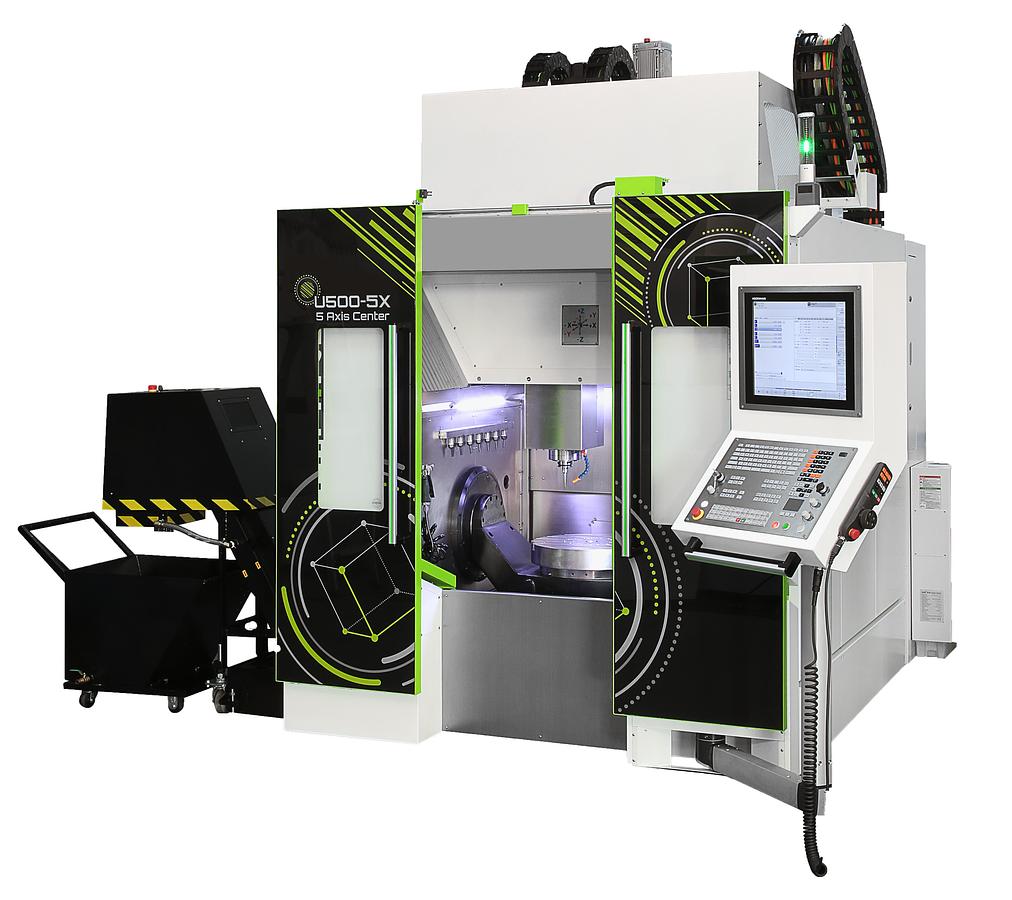

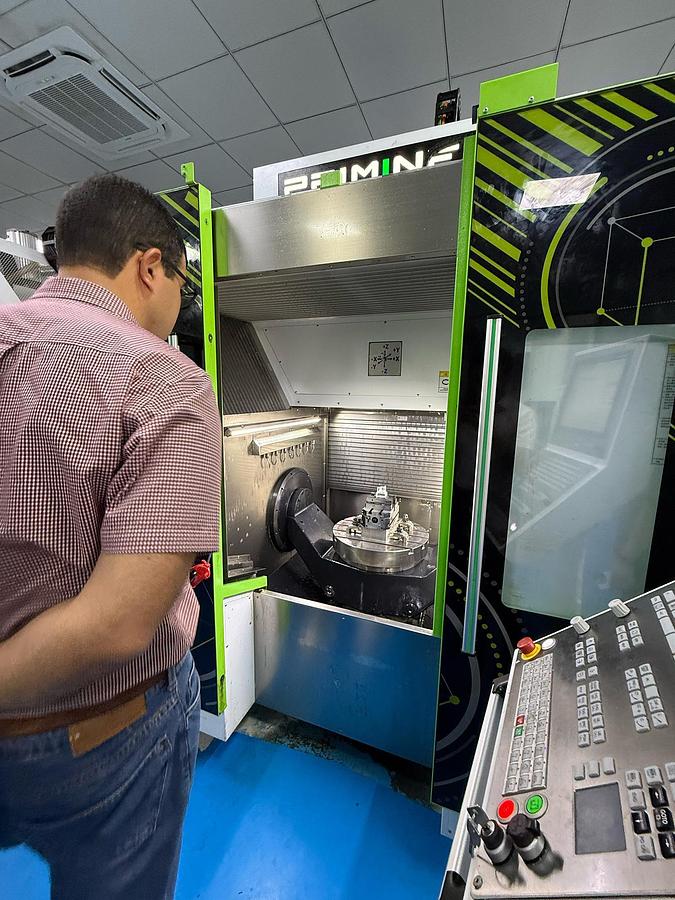

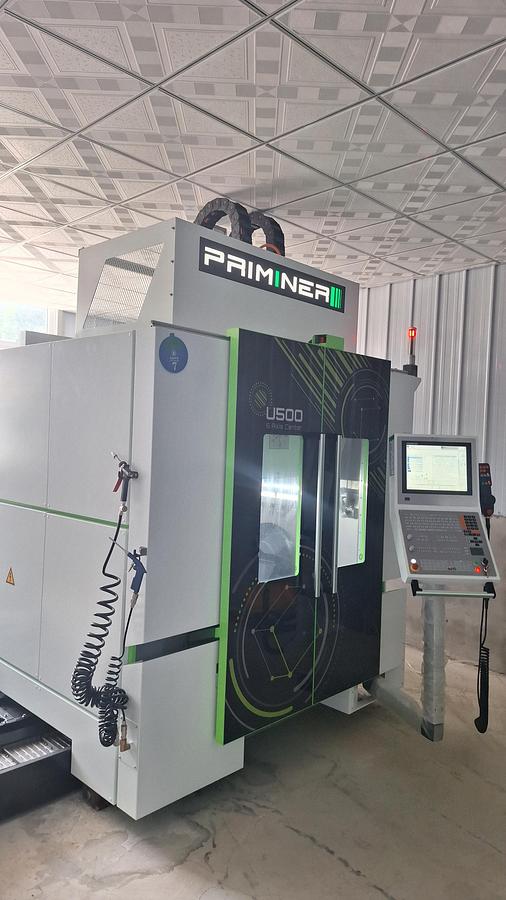

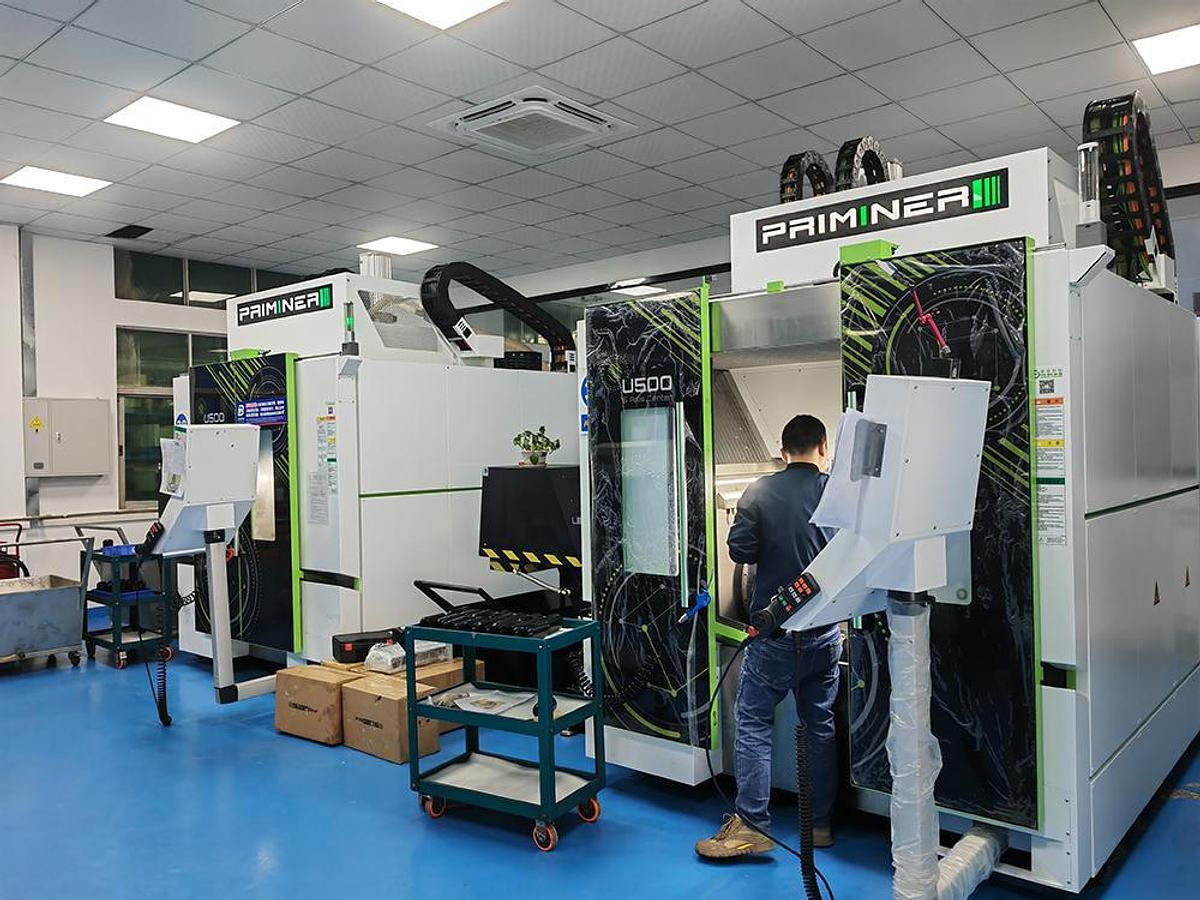

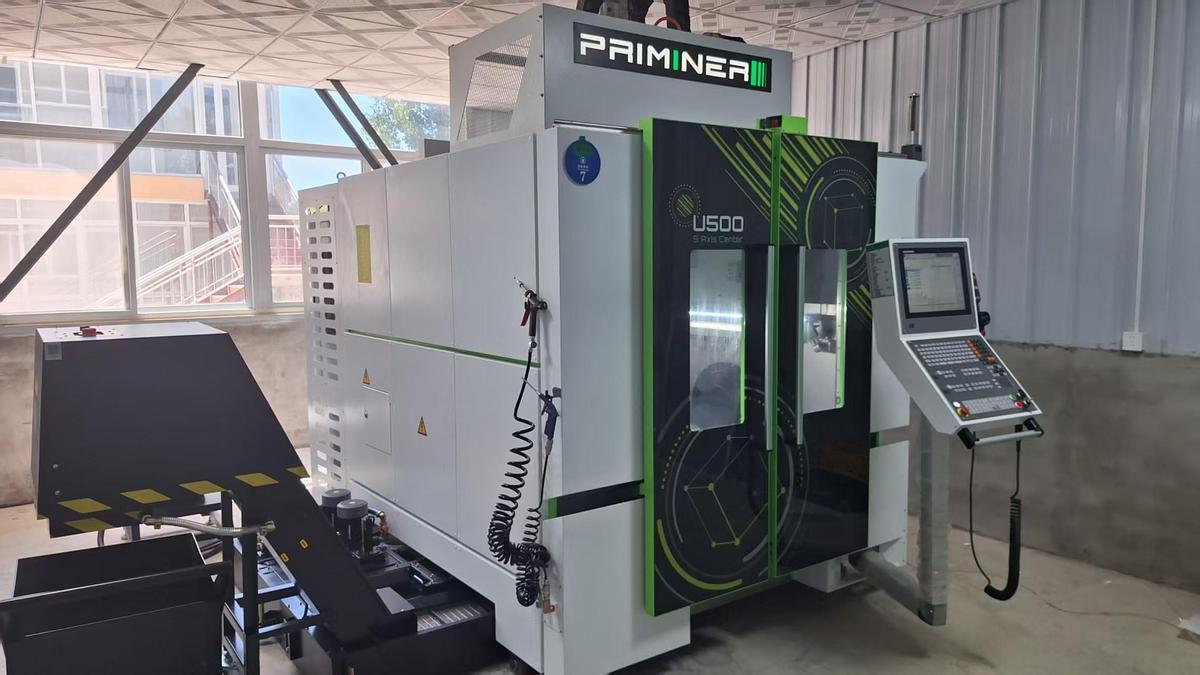

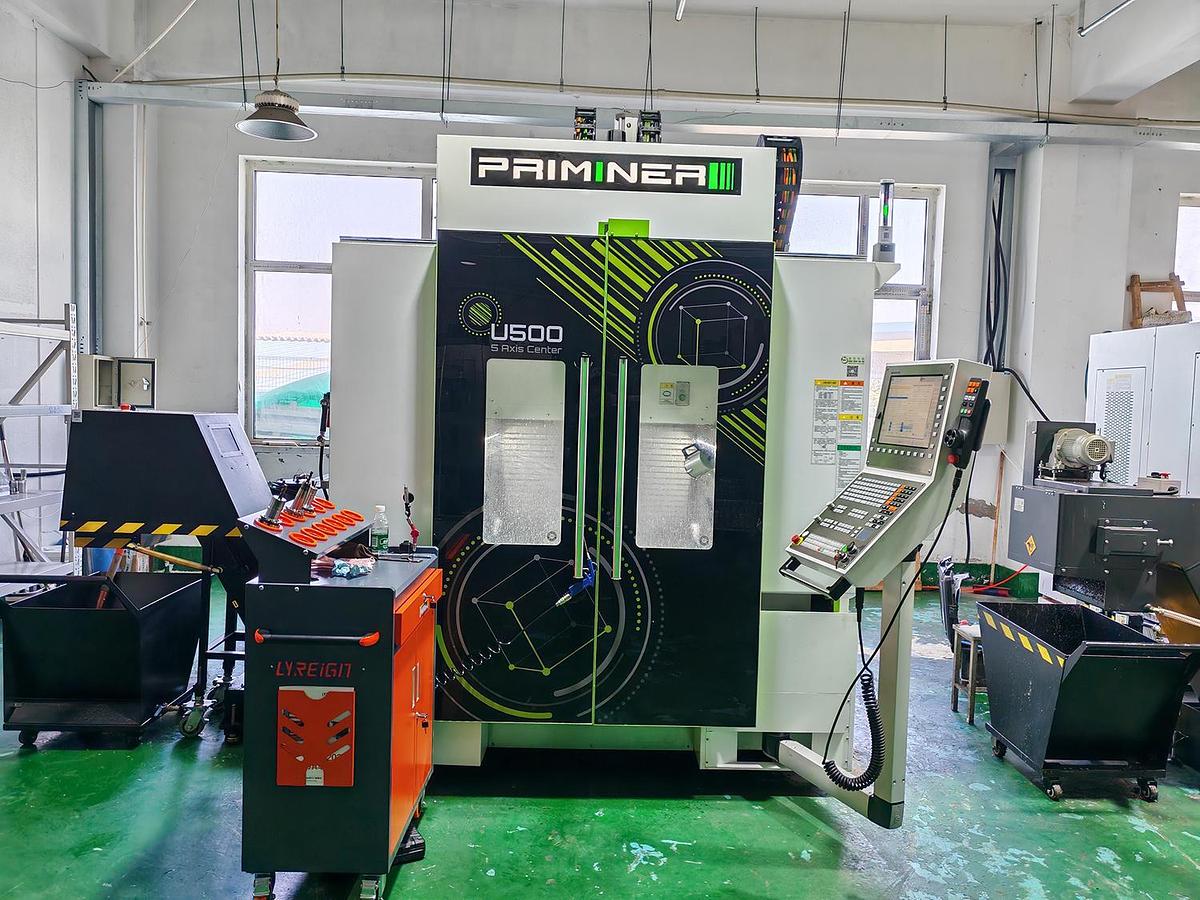

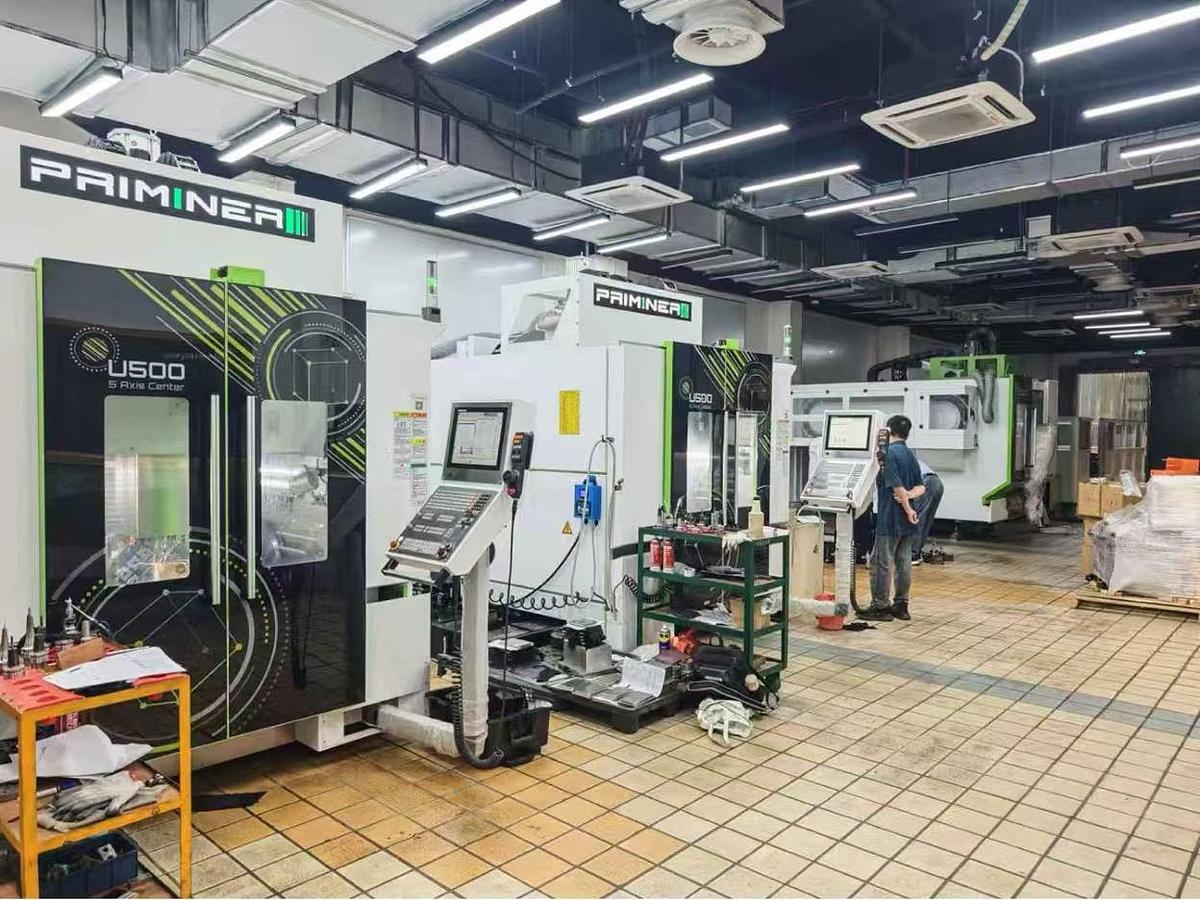

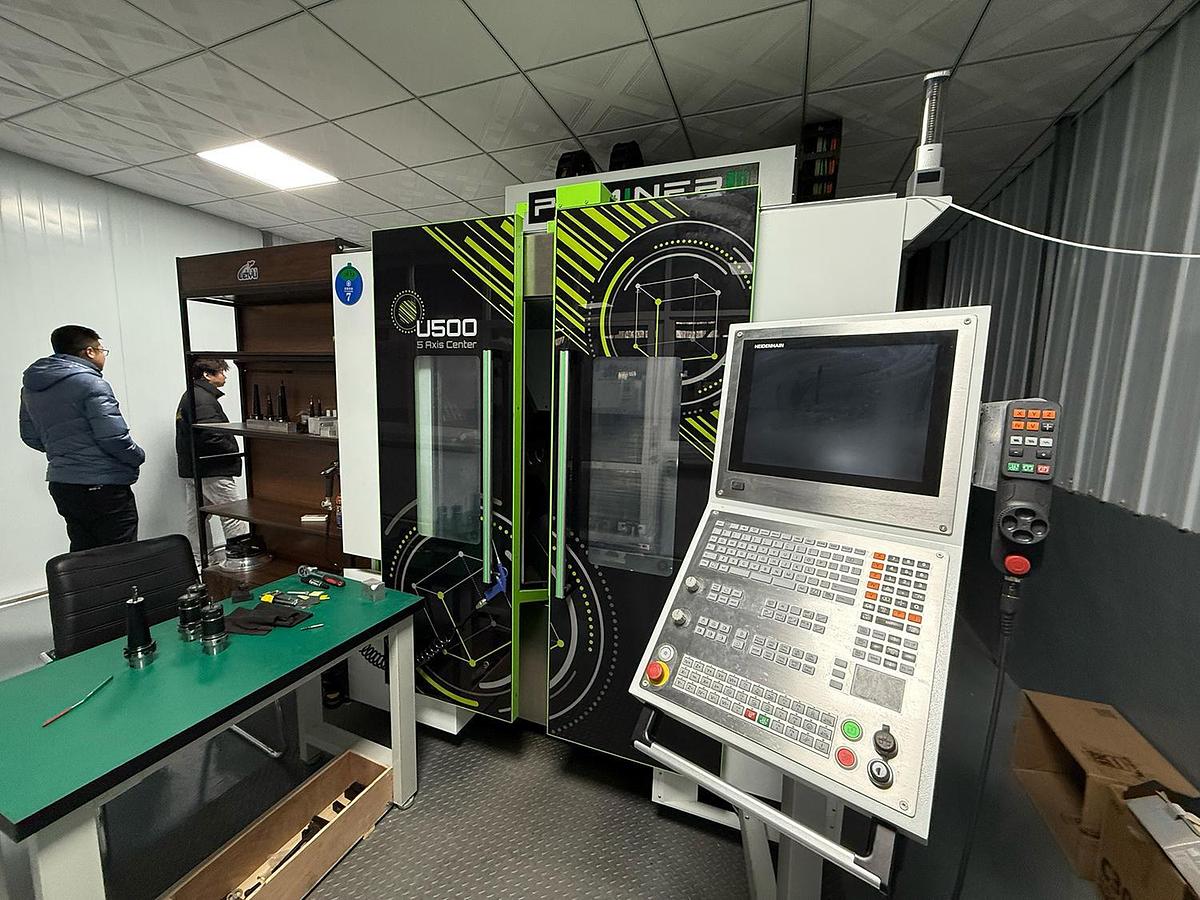

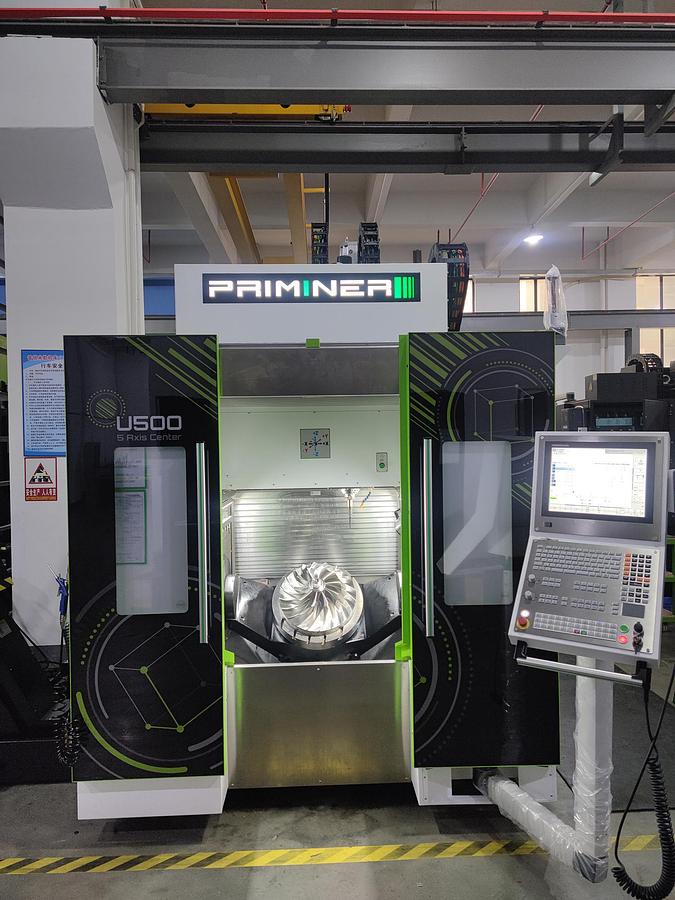

U500-5X
One-piece high-quality casting bed

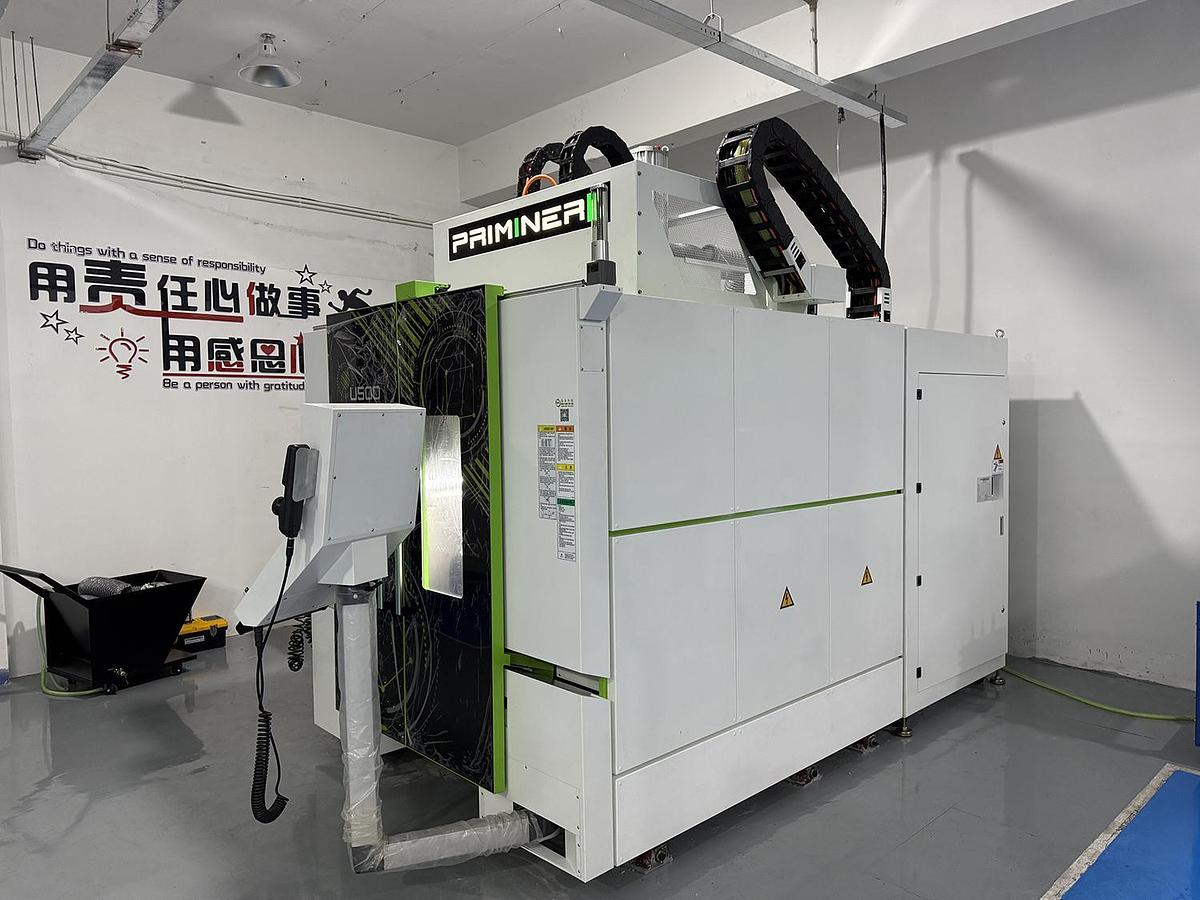

Gantry-type structure design, X/Y/Z axes movement are separated from the machining area

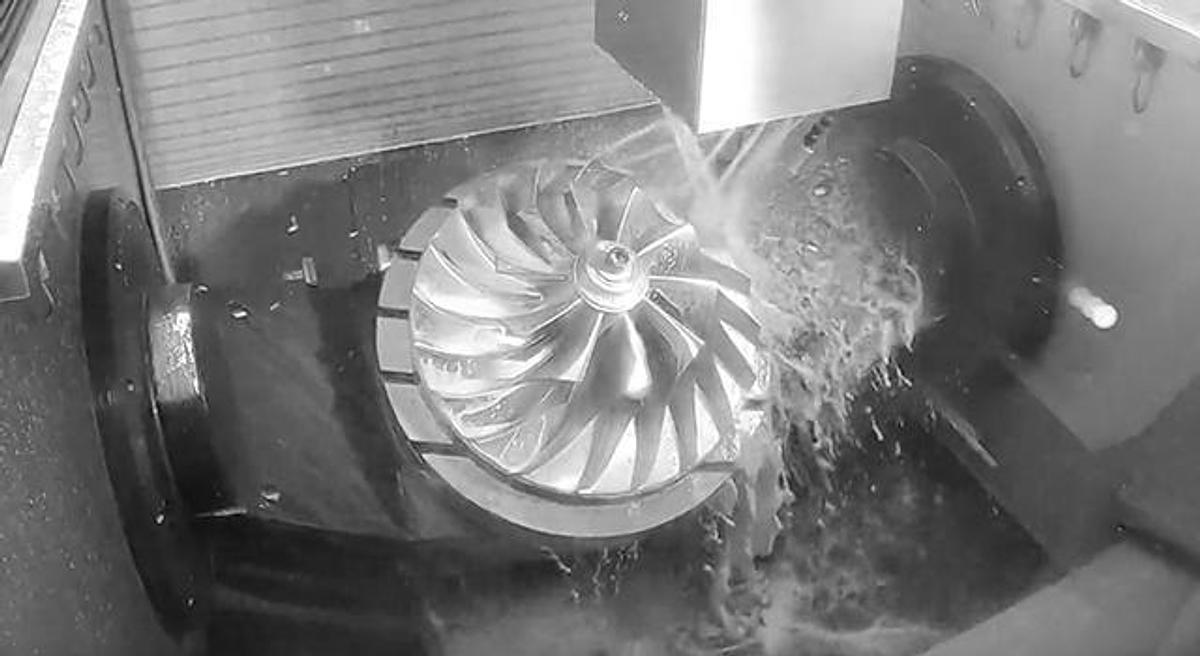

A/C axes maximum load of 500kg

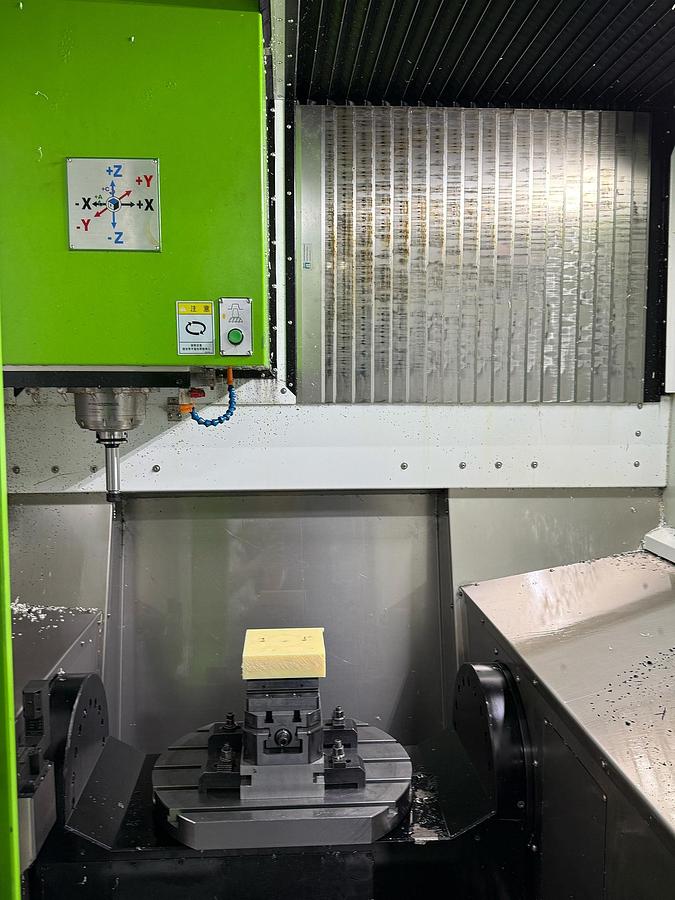

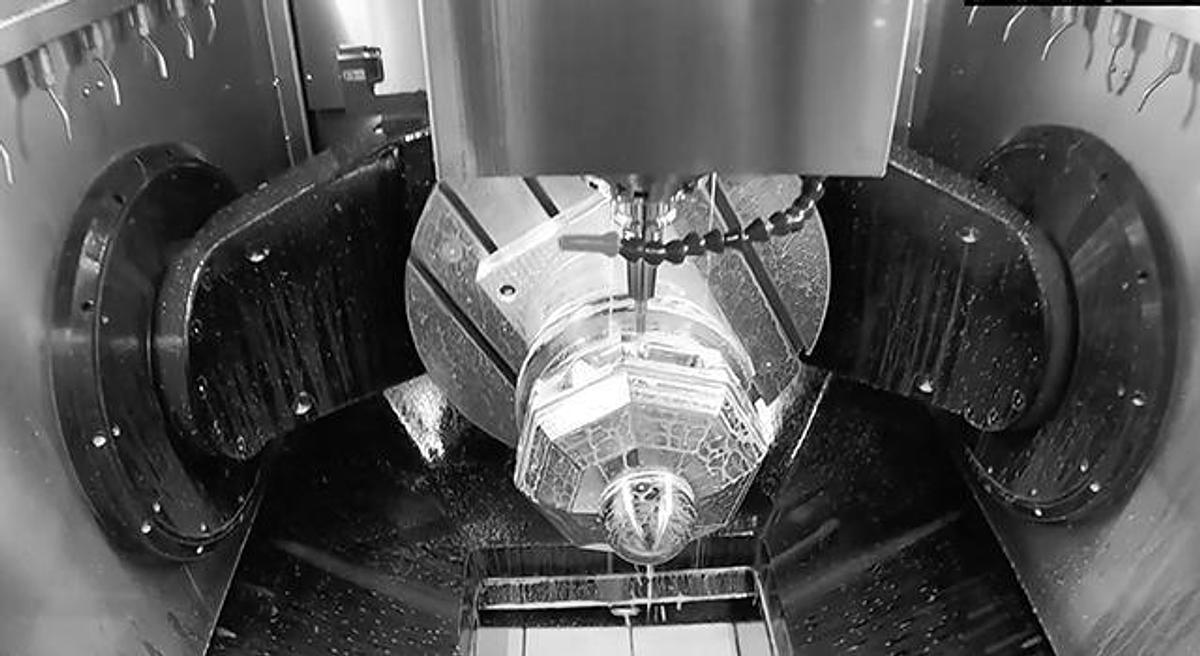

The A/C axes adopts DD motor direct drive technology by high performance torque motor
Y-axis dual synchronous drive design
Germany high-torque pneumatic brakes
Maximum travel up to 700mm

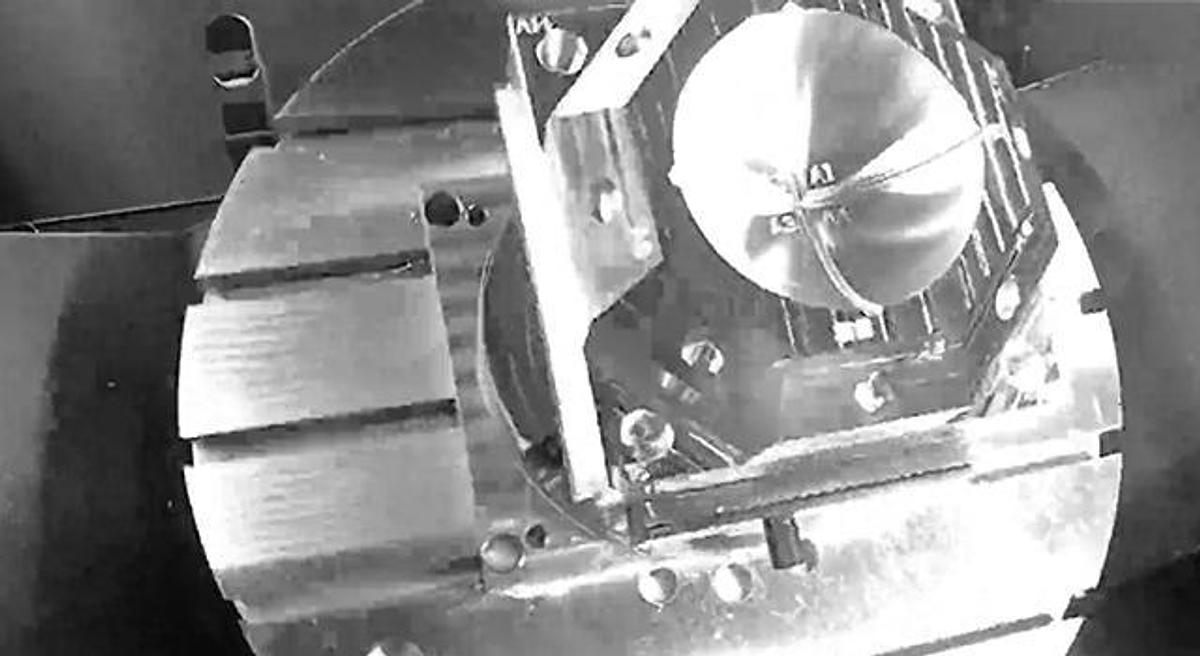

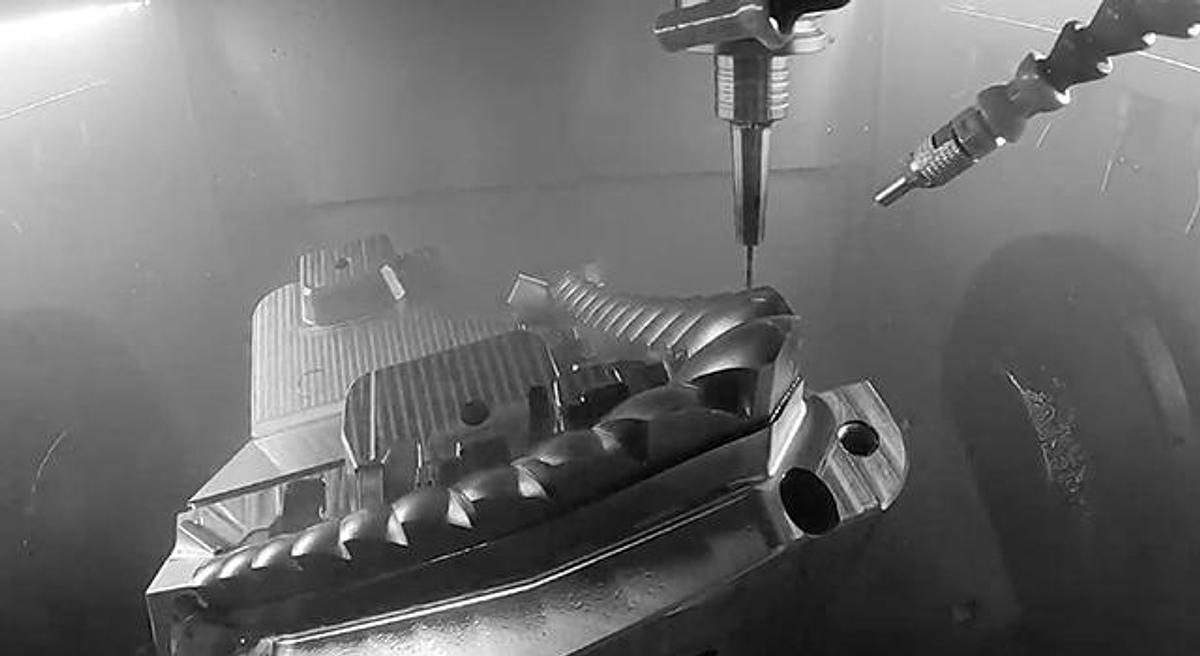

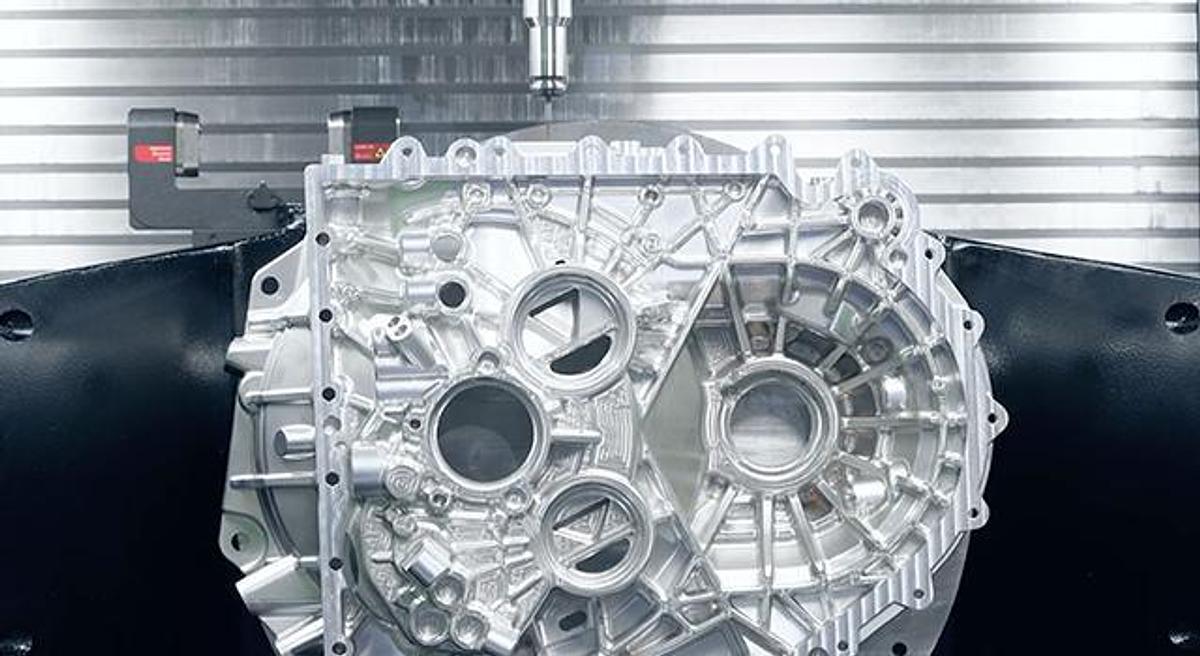

Automotive Mold

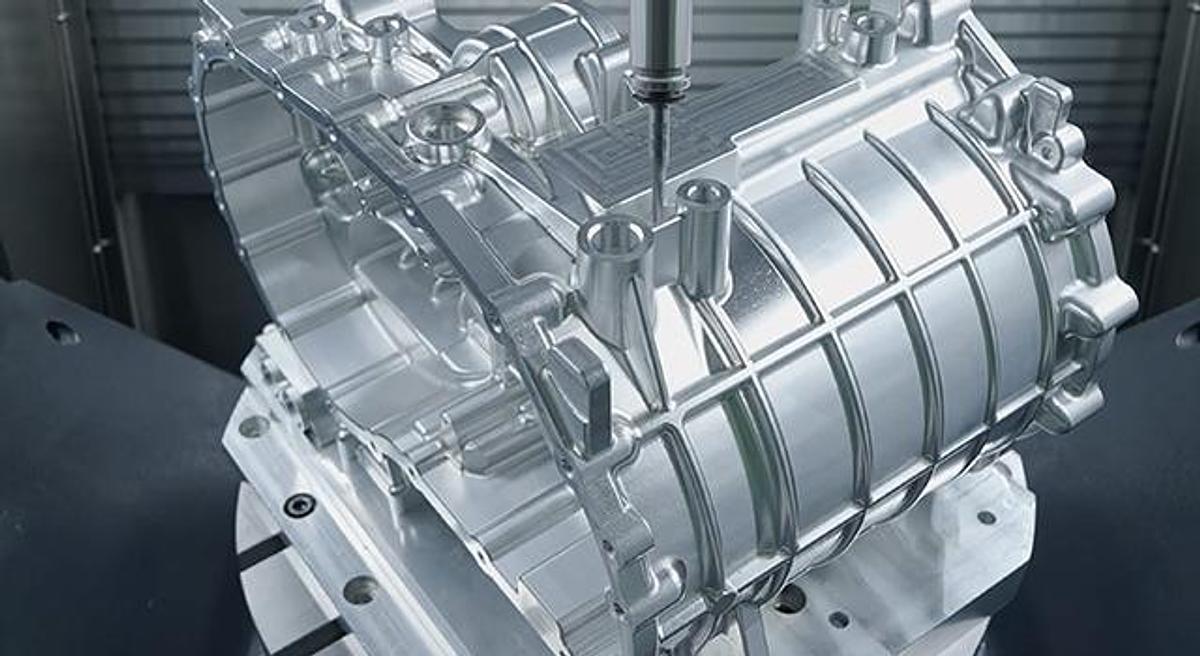

EV
Aircraft
Standard Configuration
Built-in spindle HSK A63 20000rpm_20/24kW_48/58Nm (SIEMENS / HEIDENHAIN)

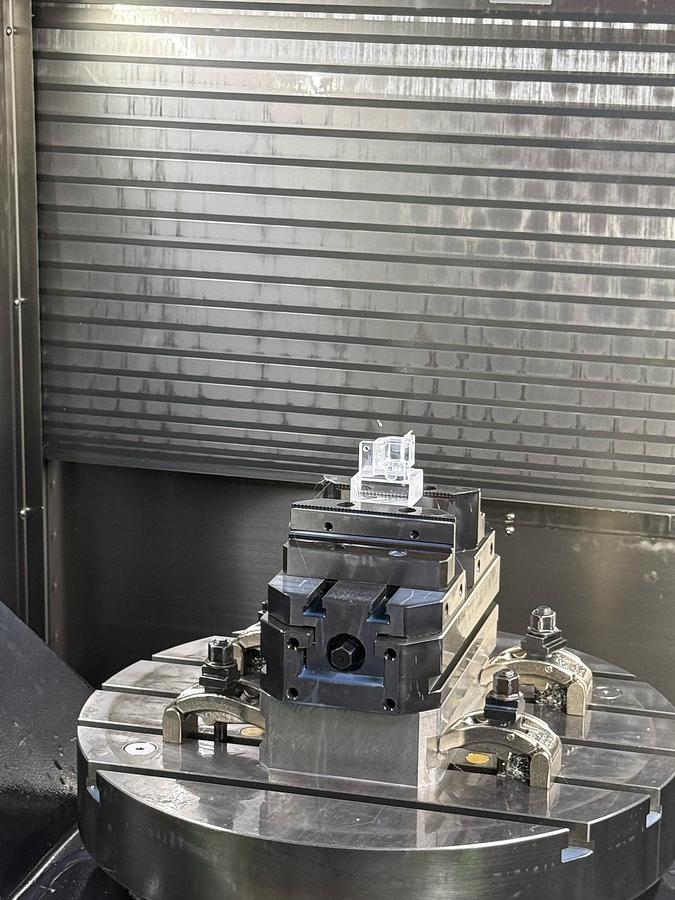

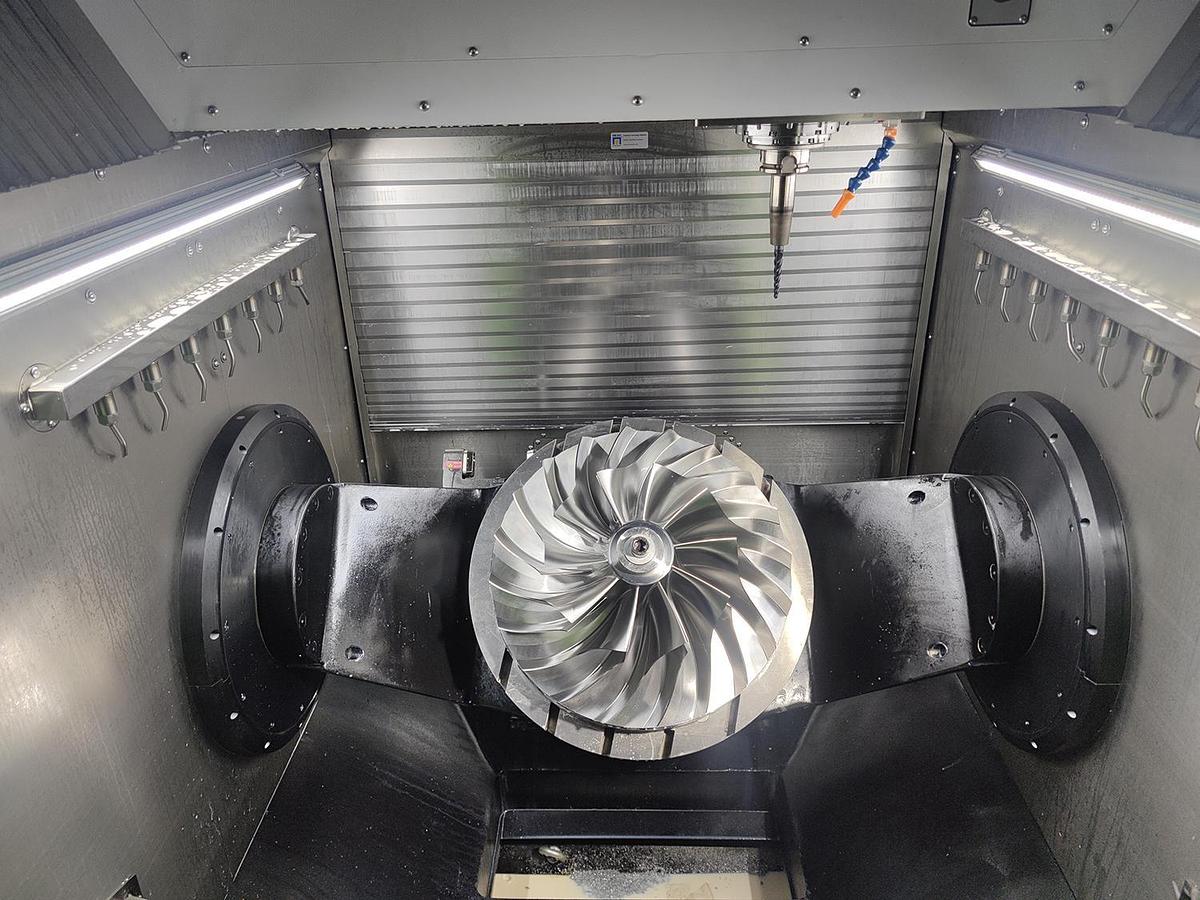

Direct drive rotary table
A axis with single direct drive
Y axis with dual direct drive
Linear scales on X/Y/Z axis
Rotary encoder
Full enclosed splash guard
32 pockets chain type tool changer, HSK A63
Chain type chip conveyor
High precision spindle water cooler
Air-condition electrical cabinet
Rigid tapping
Centralized automatic grease lubrication system
Coolant system
Air blast during cutting
LED working lamp
End of program light
Electrical handwheel (MPG)
Tool box
Leveling bolts and blocks
Coolant gun
Air gun
User manual (mechanical+electrical parts)
Ethernet, CF card and USB interface
Optional Configuration
Built-in spindle HSK E50 32000rpm_15/18kW_14/17.3Nm (SIEMENS / HEIDENHAIN)
A axis with dual direct drive
CTS coolant through spindle + ATS
Oil cooling through ballscrew
Workpiece probe
Tool probe
Oil mist collector
Minimum quantity lubrication system
Coolant cooling system
Dynamic collision monitoring (DCM)
Kinematics
Extra 200GB SSD program memory (only available on SIEMENS)
Gantry-type Machining Center
Coming Soon
Automotive Mold
EV
Aircraft
Standard Configuration
Optional Configuration
Specifications
| Manufacturer | PRIMINER |
| Condition | New |
| Max. workpiece diameter | Φ700 x 400 mm (Ø27.56” × 15.75”) |
| Table Size | Φ500 mm (Ø19.69”) |
| T slot [width x distance x number] | 14 × 80 × 5 mm (0.55” × 3.15” × 0.20”) |
| Max. load | 500 kg (1,102 lbs) |
| X/Y/Z travel | 700 / 650 / 450 mm (27.56” / 25.59” / 17.72”) |
| A/C Travel | +30° ~ -110° / ±360° |
| Spindle Taper | HSK A63 |
| Spindle motor power | 20 / 24 kW |
| Spindle motor torque | 48 / 58 Nm |
| Spindle speed | 20,000 rpm |
| Spindle nose to table | 110 ~ 560 mm (4.33” ~ 22.05”) |
| Rapid feed X/Y/Z | 36/36/36 m/min（Opt 15/15/15 m/min） |
| Rotation speed A/C | 100 / 170 rpm |
| CNC control | Siemens / Heidenhain |
