2026 CMZ TD Series TD-35-Y-Z1350

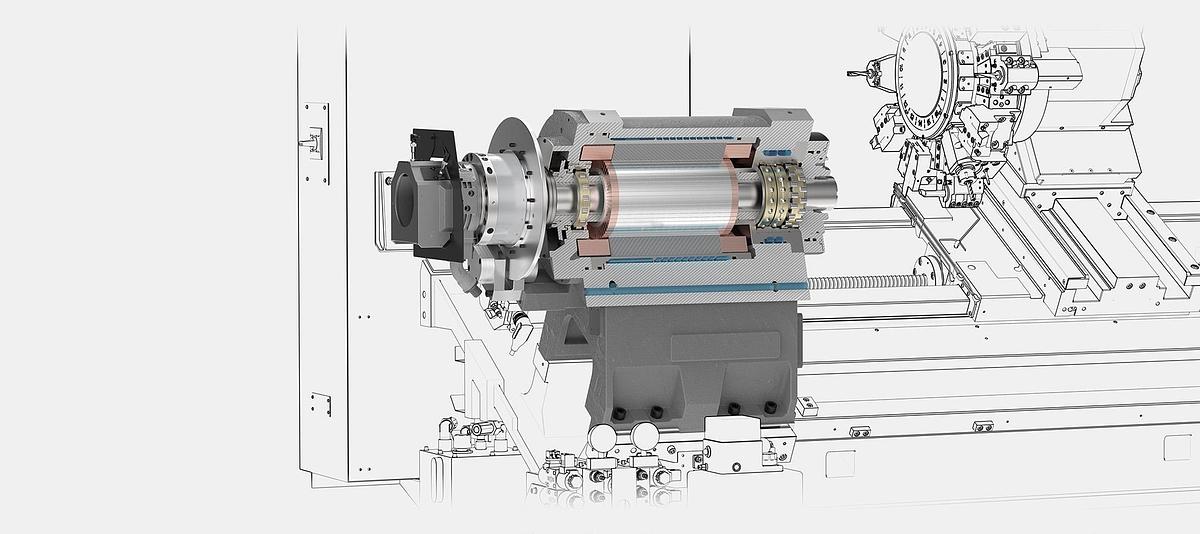

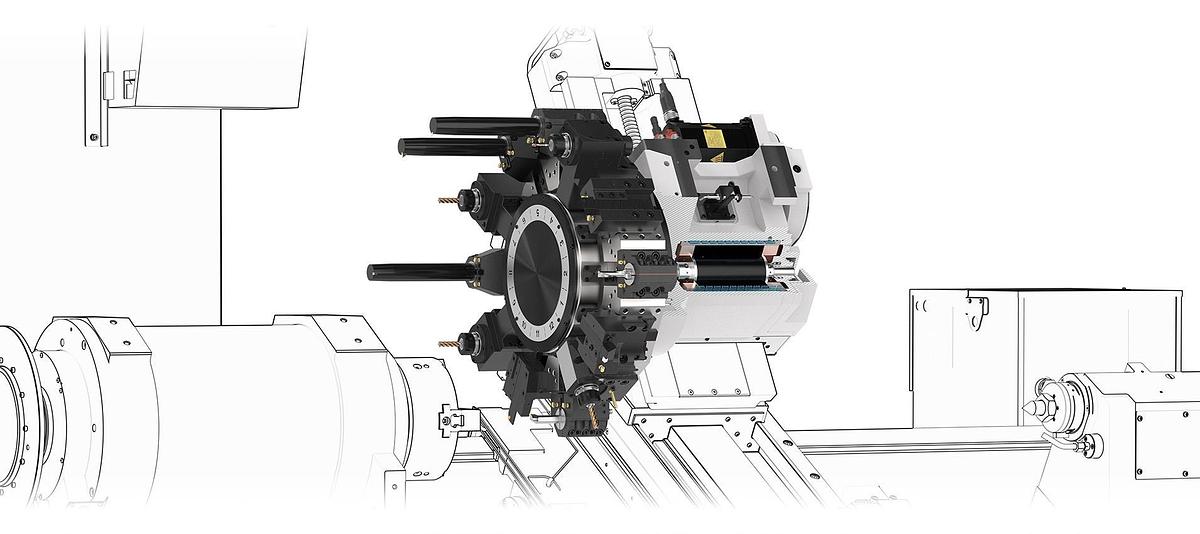

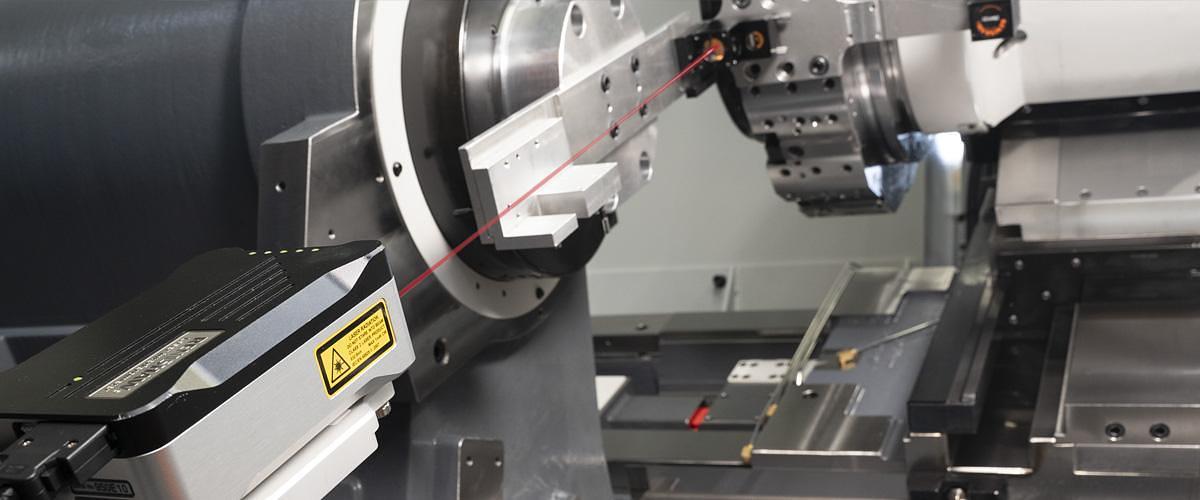

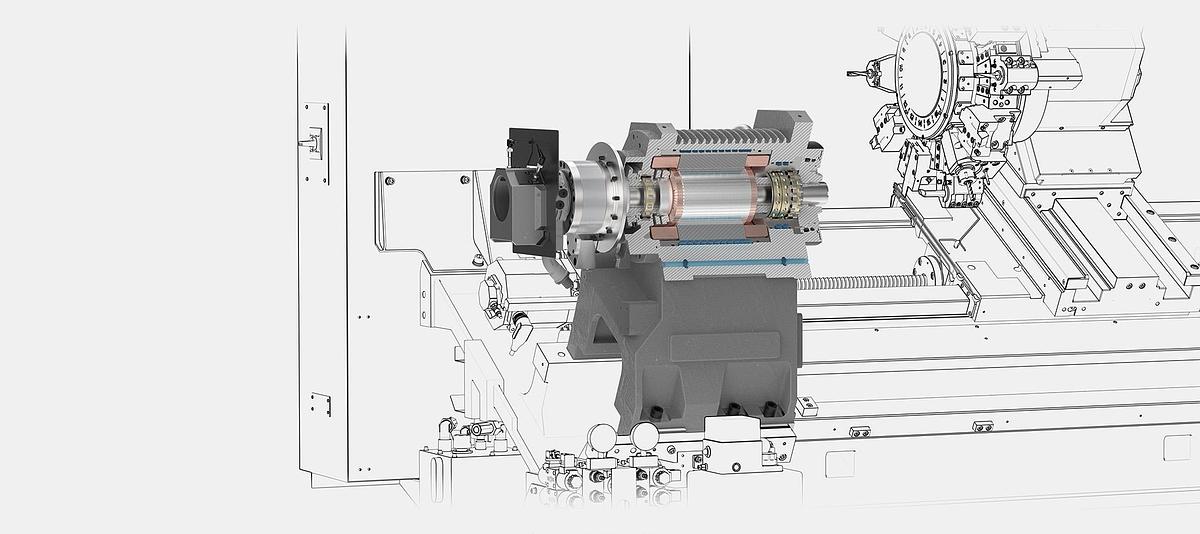

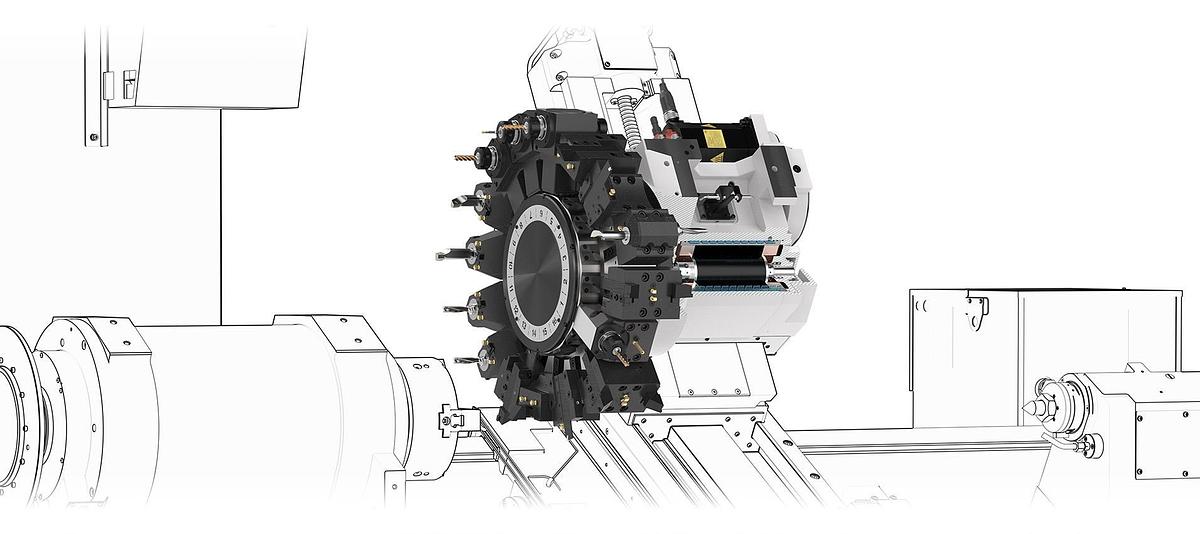

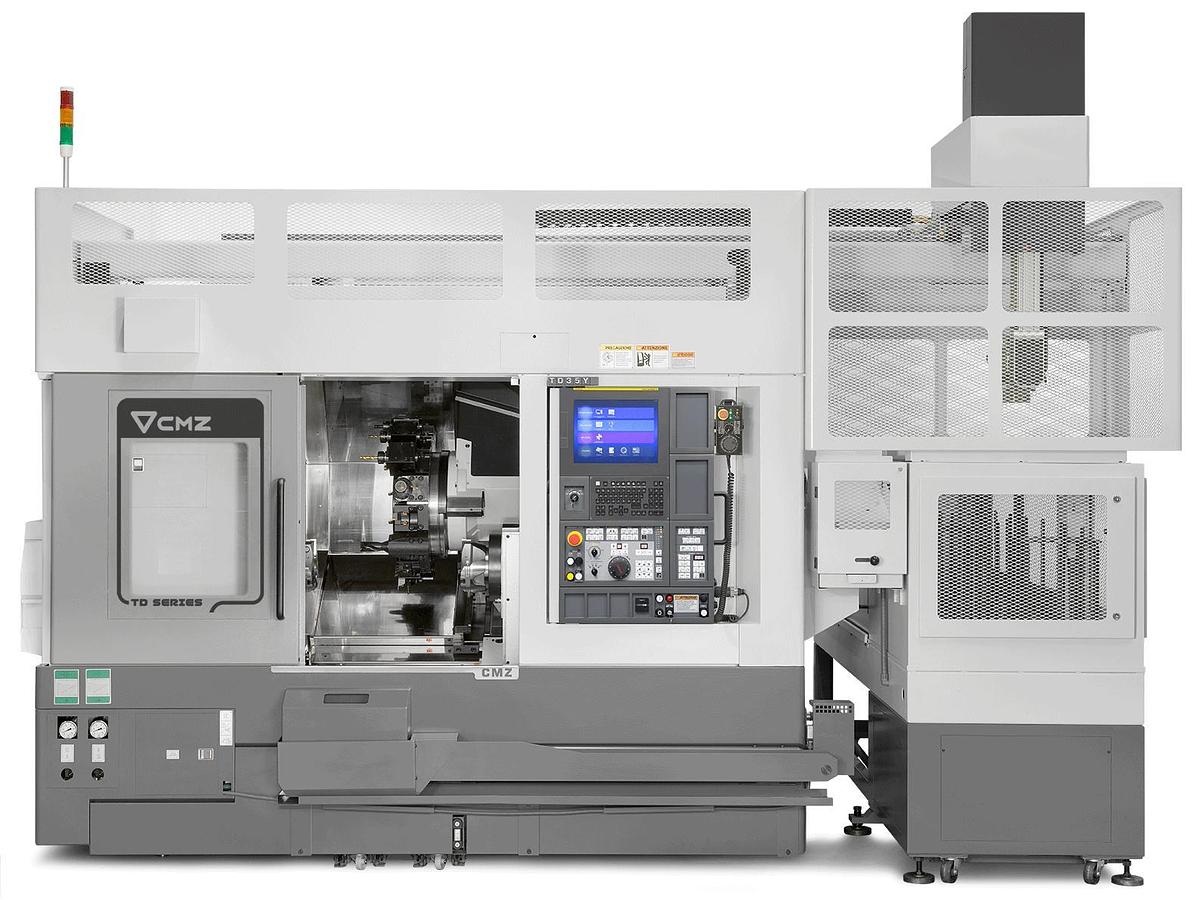

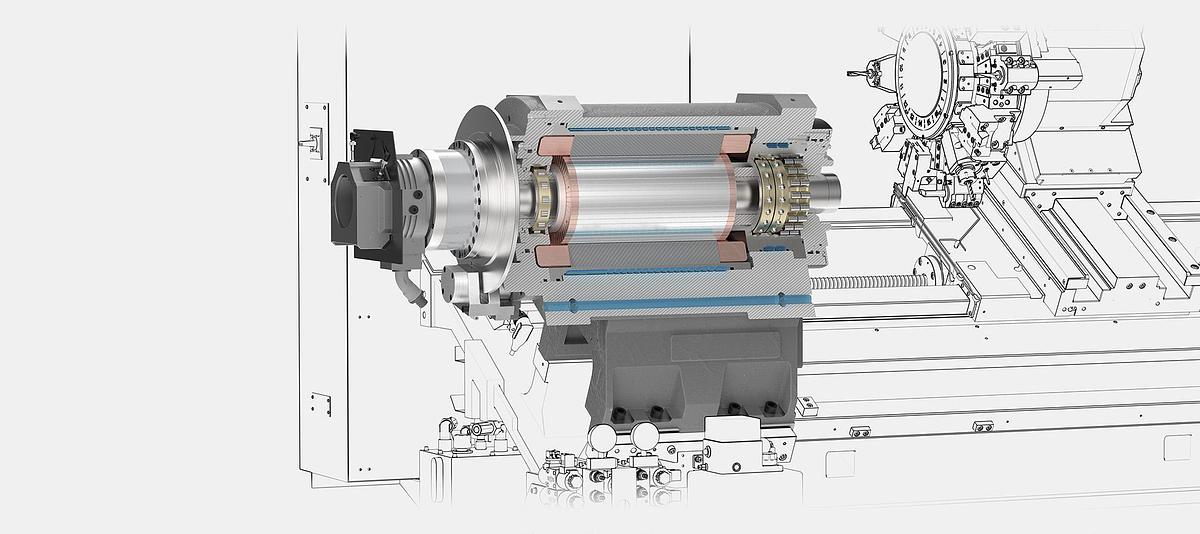

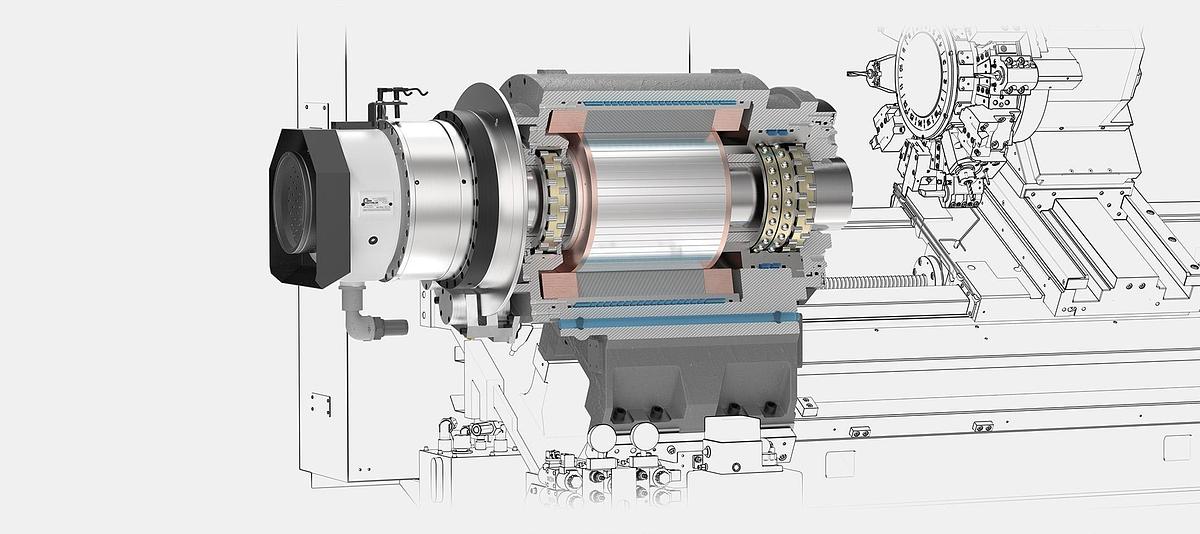

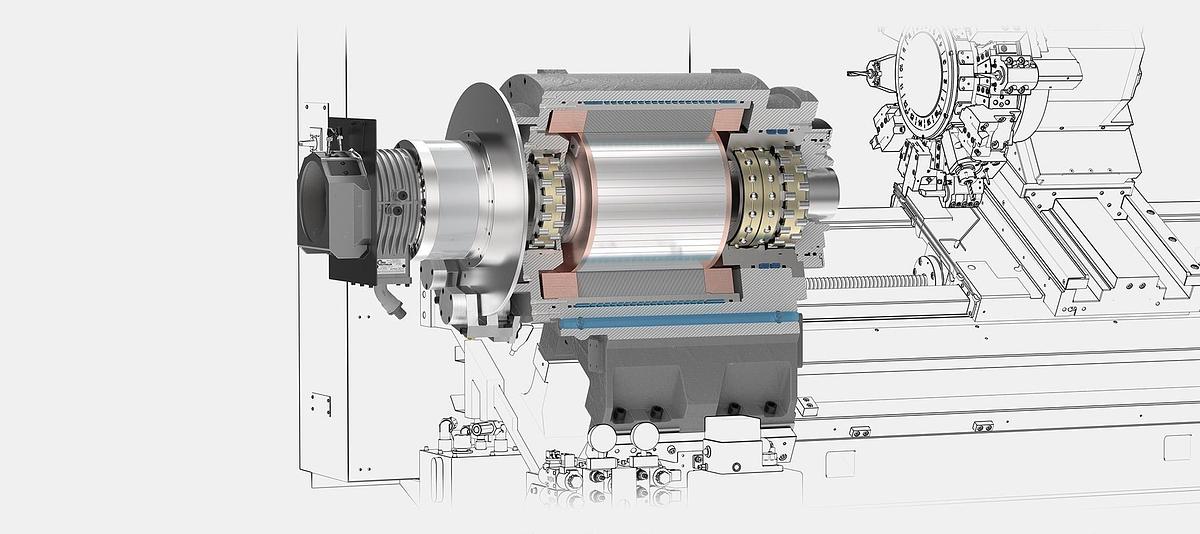

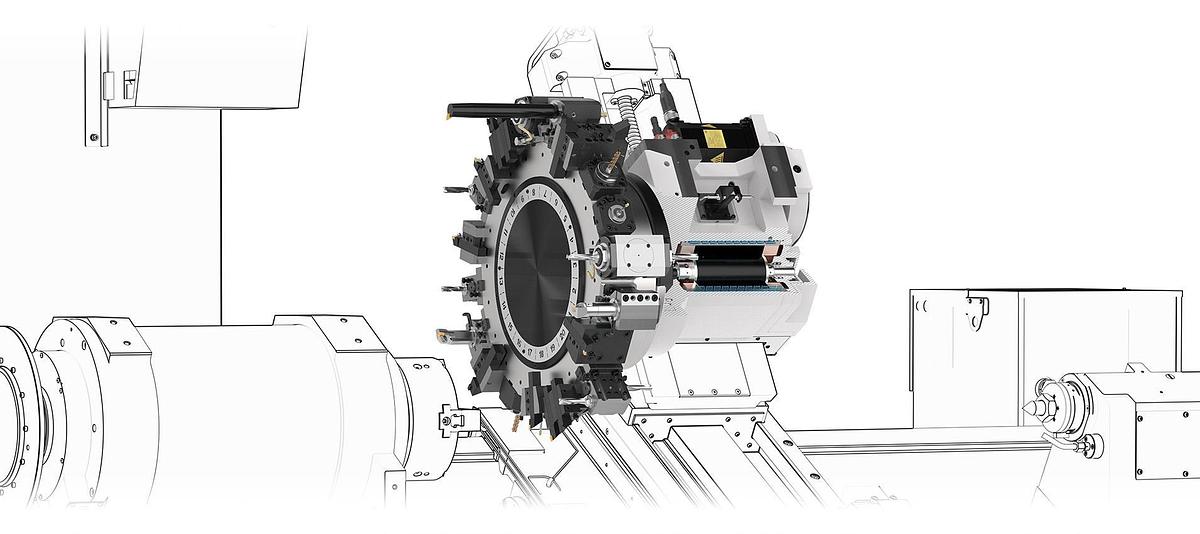

There is a machine for each type of machining. Those looking for a highly accurate and reliable high precision lathe have a wide range of possibilities in the TD Z800-Z1350 Series. This product range joins the smaller size lathes of the TA Series, offering a CNC lathe that allows multiple configuration options, always adapted to the demands and particularities of each production process. All models have a turret with a built-in motor offering 12,000 rpm driven tools, cooled with oil. Machining times are reduced thanks to the integrated spindles. Laser compensation is also a standard feature on all TD Z800-Z1350 Series machines. The automation of both short and long batches is possible with the GL20 and GL100 Gantry robots, that will lift up to 100 kg. Delve into the TD Z800-Z1350 Series and find the high precision lathe you are looking for. 13 kW, 105 Nm, 12,000 rpm Turret with a built-in motor: This high precision lathe incorporates a robustly built oil-cooled turret whose large-diameter tool-holder disk reduces interference between tools and chuck. There are three turret options: 12-, 16-, and 20-position disks, with an indexing time of 30º in 200 ms. Integrated spindles: The spindles of this high precision lathe are oil cooled. They are also integrated, which means they do not have belts or pulleys, resulting in much less noise and a better surface finish. All this increases accuracy and reduces machining time. Laser compensation in all axes: Standard feature providing great thermal stability and accuracy Automation: Automate short and long batches with a built in CMZ Gantry Loader. Gantry robots are available for billets and shafts and can accommodate loads of up to 100 kg. Our Gantry robot makes it possible to increase the productivity of your high precision lathe. With a capacity of 2 x10 kg or 2 x 50 kg, they adapt to the needs of each user. Setup and handling is very simple. Loading material and unloading parts together with different types of work stocker, allow for an autonomous unattended work unit. Robot Gantry GL20II Robot Gantry GL100: Loads of up to 100 kg
