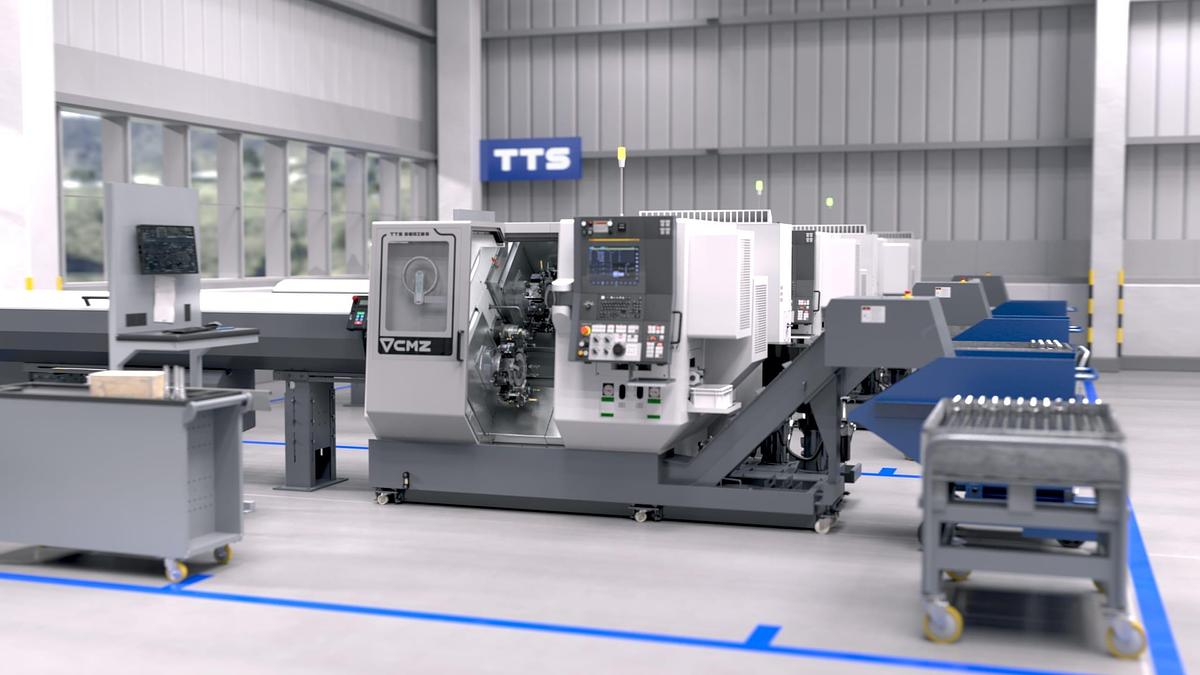

2026 CMZ TTS Series

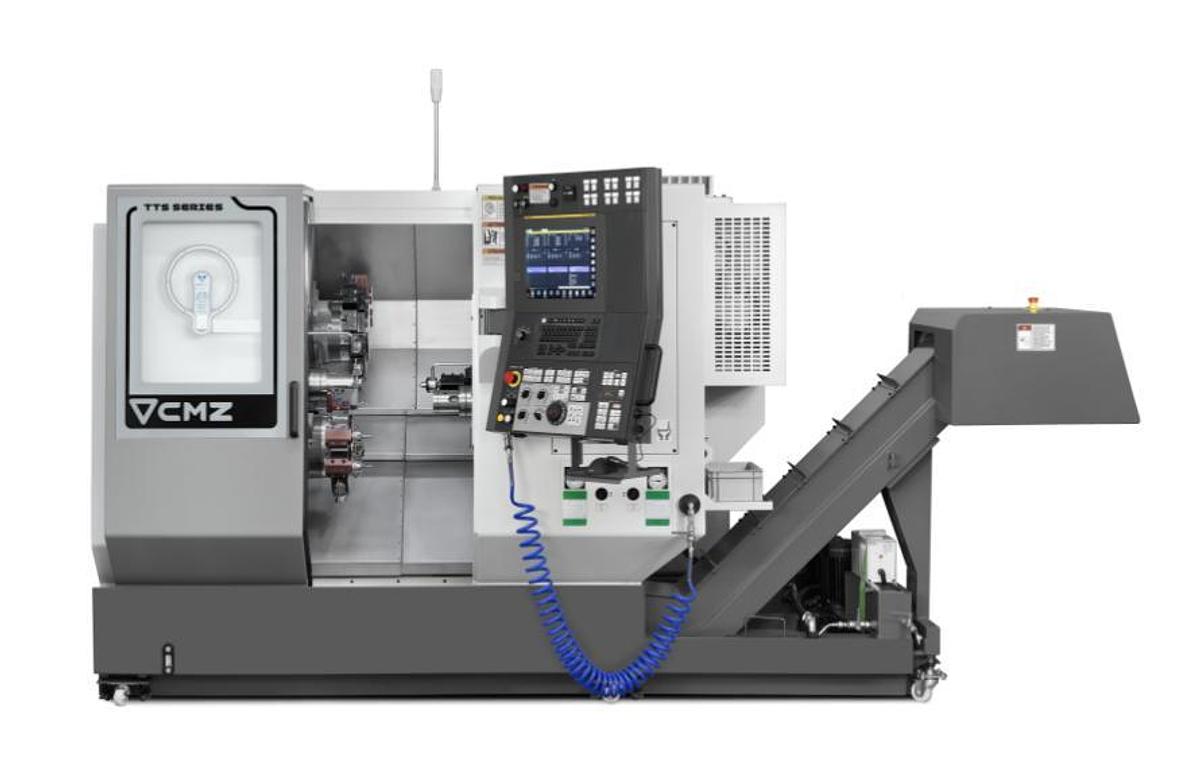

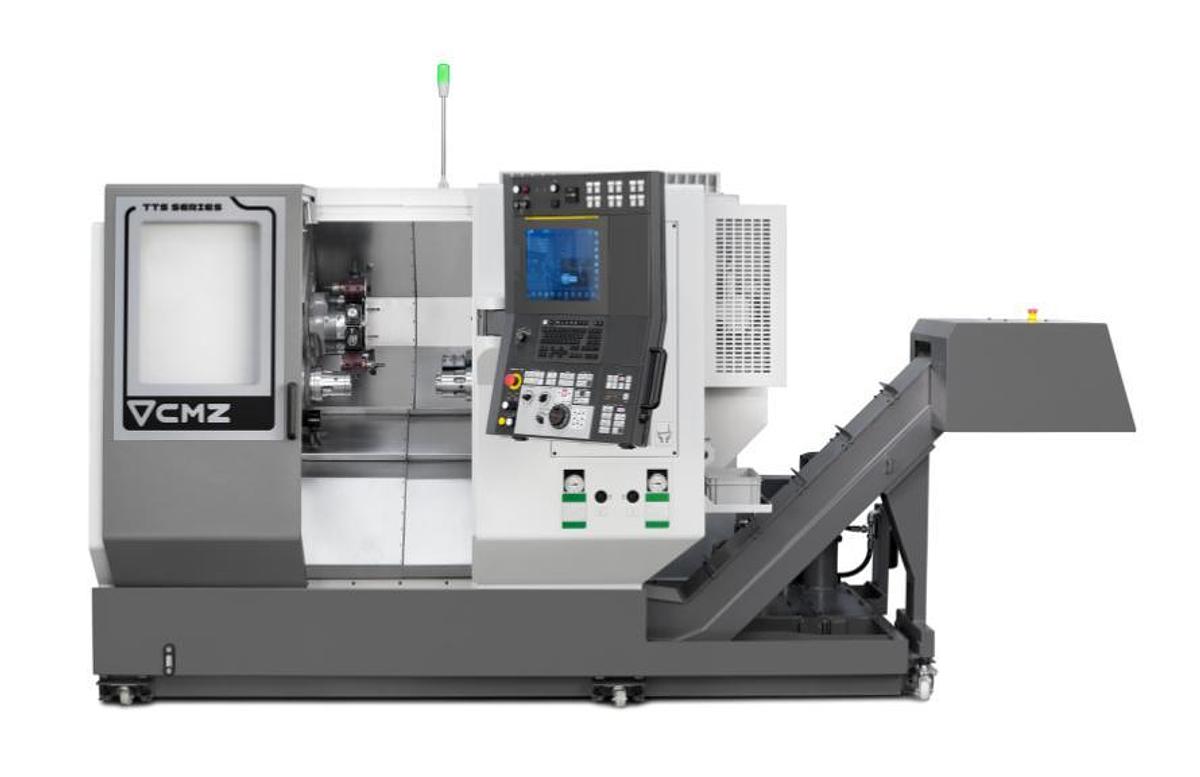

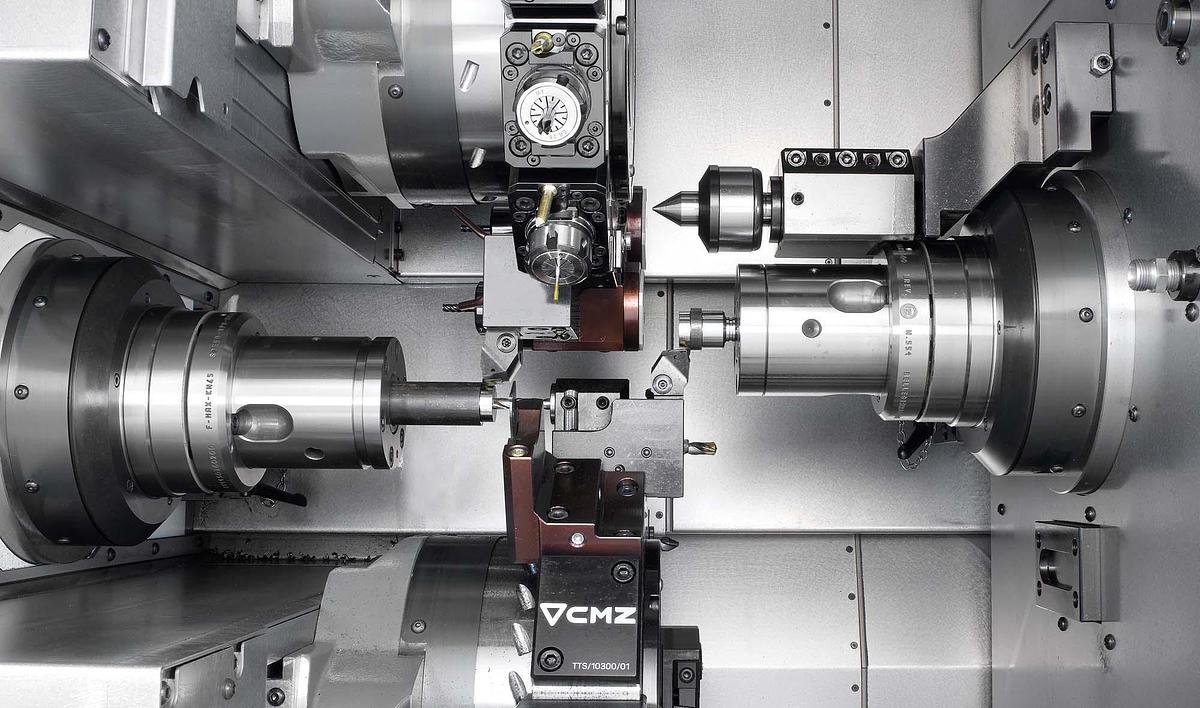

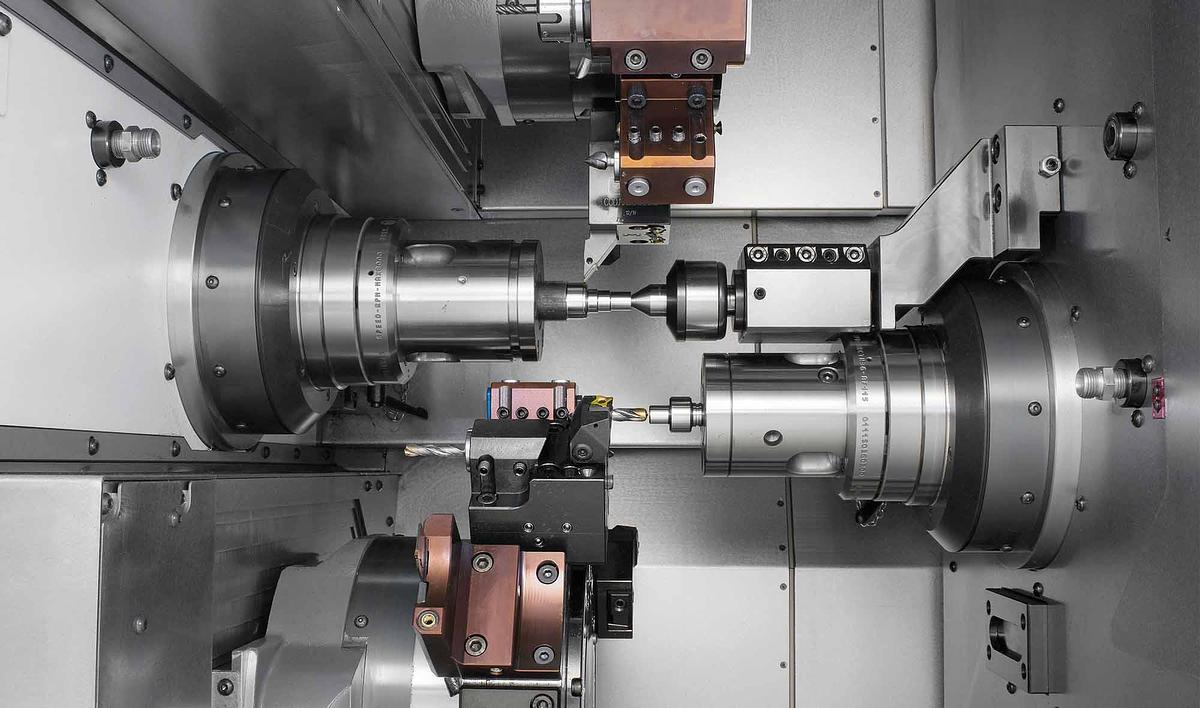

Dual-spindle CNC lathes This Twin CNC Lathe for bar turning completes the TT range. It is the shortened version of TTL. It is designed for turning small parts and competes with sliding head lathes. The TTS Series is the smallest lathe in the CMZ product range and part of our multi-turret range of turning centres. The TTS is ideal for machining complex mill-turn parts from bar. This is due to its accuracy, repeatability, and reliability, as well as powerful (13.2Kw, 26.8Nm) driven tools that are capable of running at 12,000rpm all day long. Both turrets are oil-cooled. All motors are direct drive (without belts). The TTS has been specifically designed to significantly reduce cycle times and is capable of superimposed machining (cutting with 3 tools at once). Y-axis travel of +-31mm is available on both turrets. This machine is also much quicker to set compared to Swiss type machines. All this amounts to achieving an efficient production solution. The X3 and Z3 axes on this twin spindle lathe for machining from bar allow multiple possibilities: work with the sub-spindle moved off centre and work with the tailstock, machine with two turrets on the same spindle, cut simultaneously with 3 tools (superimposed machining), or balanced cutting, Oscillation Cutting is available on both turrets and both spindles. A dual-spindle CNC lathe aimed at companies producing parts from bar. 13 kW, 27 Nm, 12,000 rpm Turret with driven tools: The TTS Series completes the range of CMZ multi-turret CNC machines. In this twin spindle CNC lathe, competition of sliding head lathes, the two 24-position turrets hydraulically clamp onto a large diameter curvic coupling giving great stability and precision. Integrated spindles with synchronous motors: The integrated spindles of this twin spindle CNC lathe equip the machine with key technical characteristics for maximum performance and productivity. Acceleration time reduced by half: Its high-power, high-torque motors reduce acceleration time by half. The TTS-46 reaches 5000 rpm in 1.75 seconds. Tailstock: Operating simultaneously with sub-spindle (option): One of the options of this fixed-headstock cnc lathe is the tailstock attached to the sub-spindle. The TTS allows the tailstock to be incorporated above or below the spindle. With this machine configuration, it is possible to machine between the chuck or the main chuck and the tailstock while finishing the part in the sub-spindle. The TTS can work with 3 tools simultaneously: This twin spindle lathe designed for bar turning has two turrets, although the CNC has 3 channels allowing 3 programs to be run simultaneously with their corresponding offsets. The sub-spindle (axes X3 and Z3) can work in the third channel of the CNC in a compound mode with the upper and lower turret. In this way, it is possible to place two tools in both turrets and machine with three tools simultaneously Machining very long components: The linear movement of the sub-spindle reduces interferences
